Dimmable Linear LED Light



Dimmable Linear LED Light

  • Dimmable Linear LED lighting system
  • CCT is changeable between 2700K and 6000K.
  • With a smart remote-controlled system.
  • Brightness is dimmable.
  • CRI is above 90.
  • With Osram LED chips and GR OPTICS lens.
  • Slidable design for flexible installation.
  • High-quality die-cast aluminum housing.
  • Stunning stoving varnish finishing.
  • The light beam angle is 120°.

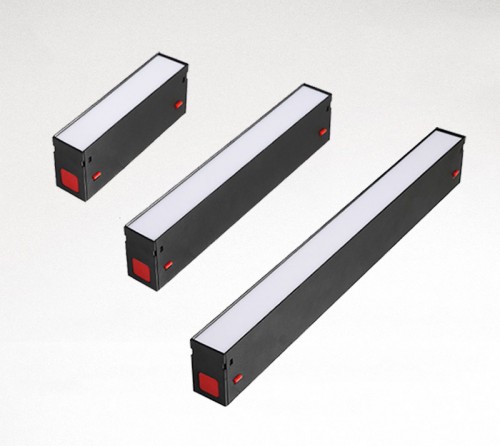

XYZ35 Dimmable Linear LED Light Systems

This dimmable linear LED light has 10W / 20W / 30W three power options and comes with OSRAM SMD chips, It’s compatible with 35mm Magnetic LED Track Light System, which is originally designed by SAMPO Lighting. A high-quality SMD chip is manufactured by OSRAM, a lens with GR OPTICS technology that offers high CRI (Ra > 90). This system has a smart control system to remote control CCT and brightness via a mobile APP. The beam angle is 120°. Aluminum housing is well die-cast to provide out-standing thermal conductivity for long-lasting, and the surface is finished with stoving varnish to provide a stunning appearance.

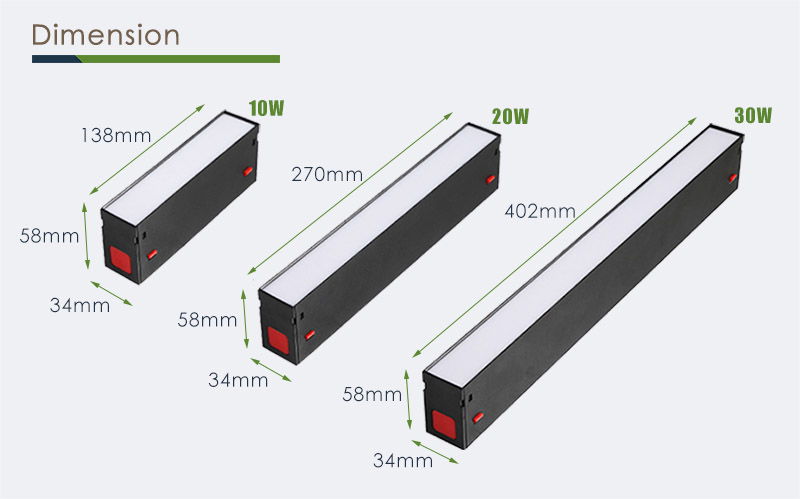

Dimension | XYZ35 Dimmable Linear LED Light Systems

3 powers and sizes for options



Specifications

Motel No

XYZ3510F

XYZ3520F

XYZ3530F

LED Osram
Lens GR OPTICS
CRI Ra > 90
Power 10W / 20W / 30W
Voltage 90-265V
CCT 2700K-6000K (3 Color Changeable)
Dimmable Yes
Material Die-Casting Aluminum Alloy
Surface Finish Stoving Varnish
Size

L402 * W34 * H58mm (10W)

L270 * W34 * H58mm (20W)

L138 * W34 * H58mm (30W)

Beam Angle 120°

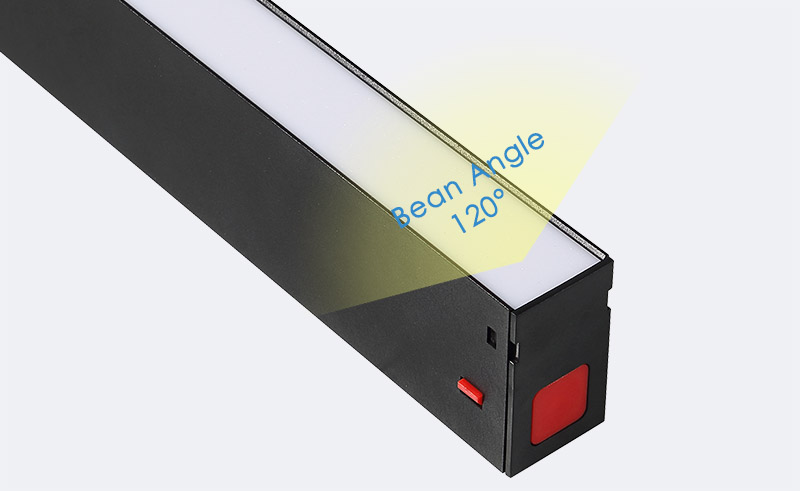

Beam Angle | XYZ35 Dimmable Linear LED Light Systems

This dimmable linear LED light produces a wide range of beam angle at 120°.

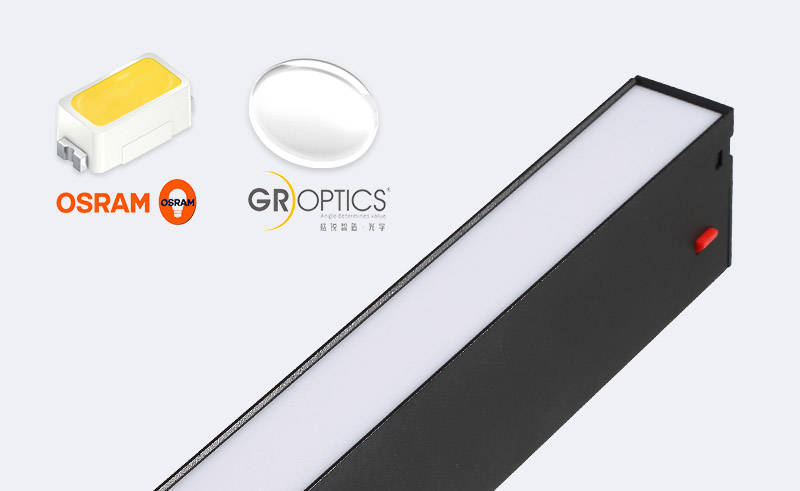

SMD Chips | XYZ35 Dimmable Linear LED Light Systems
SMD chips are sourced from OSRAM,

The lens comes with GR OPTICS technology.



Surface Finish | XYZ35 Dimmable Linear LED Light Systems

Premium die-cast aluminum housing for long-lasting use,

Stoving varnish finish provides an aesthetic appearance.



Flexible Installation | XYZ35 Dimmable Linear LED Light SystemsThis dimmable linear LED light has fasteners on both sides to ensure to be firmly mounted,

you can easily push the buttons at two sides to release the fixtures from the track rail.



Slidable And Dimmable Linear LED Light SystemsThis dimmable linear LED light is for a 35mm magnetic track system,

can be slid on the power track rail for flexible placement.
