95-260V 35mm Smart Track Lighting System

95-260V 35mm Smart Track Lighting System

95-260V 35mm Smart Track Lighting System

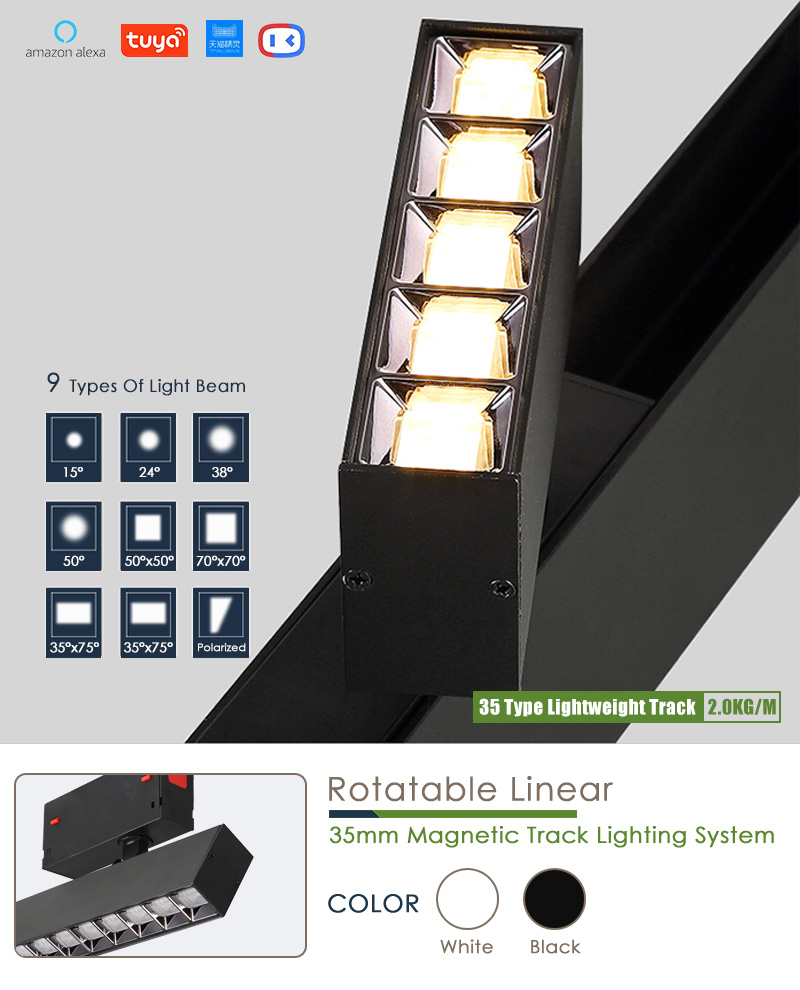

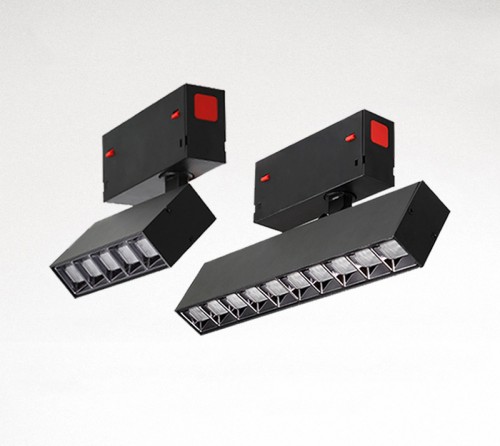

Rotatable Linear LED Light



Rotatable Linear LED Light

  • 90° vertically adjustable head.
  • 360° horizontally rotatable head.
  • Rotatable and suspended linear LED light fixtures.
  • Brightness is dimmable.
  • Beam angle is 15° / 24° / 36° for options.
  • GR OPTICS lens offers high CRI (Ra > 90).
  • CCT is changeable between 2700K and 6000K.
  • With a smart remote-controlled system.
  • SMD chips by Osram.
  • Slidable design for flexible installation.
  • High-quality die-cast aluminum housing.
  • Stoving varnish finished surface.



XYZ35 Suspended Linear LED Light Fixtures

This type of rotatable linear LED light fixtures has 8W and 16W for options and comes with a smart control system to use mobile APPs to control CCT and brightness. It’s compatible with the 35mm Magnetic Track Light System, which is originally designed by SAMPO Lighting. The SMD chips were manufactured by OSRAM, a lens with GR OPTICS technology that offers high CRI (>90). Lighting head is 90° vertically adjustable & 360° horizontally rotatable. The beam angle is available with 15° / 24° / 36° for highlight application. Aluminum housing is well die-cast to provide out-standing thermal conductivity for long-lasting use, and the surface is f0inished with stoving varnish to provide a stunning appearance.

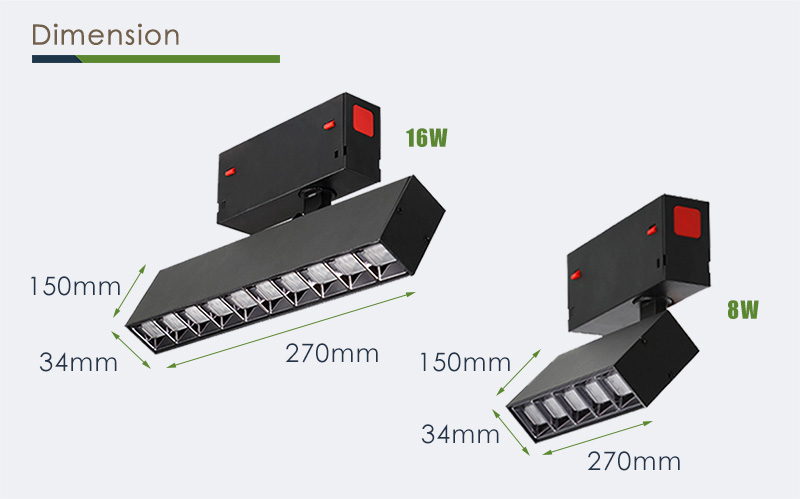

Dimension | XYZ35 Suspended Linear LED Light Fixtures



Specifications

Motel No XYZ3508Z
XYZ3516Z
LED Osram
Lens GR OPTICS
CRI Ra > 90
Power 8W / 16W
Voltage 90-265V
CCT 2700K-6000K (3 Color Changeable)
Dimmable Yes
Material Die-Casting Aluminum Alloy
Surface Finish Stoving Varnish
Size L138 * W34 * H150mm (8W)
L270 * W34 * H150mm (16W)
Beam Angle 15° / 24° / 36°

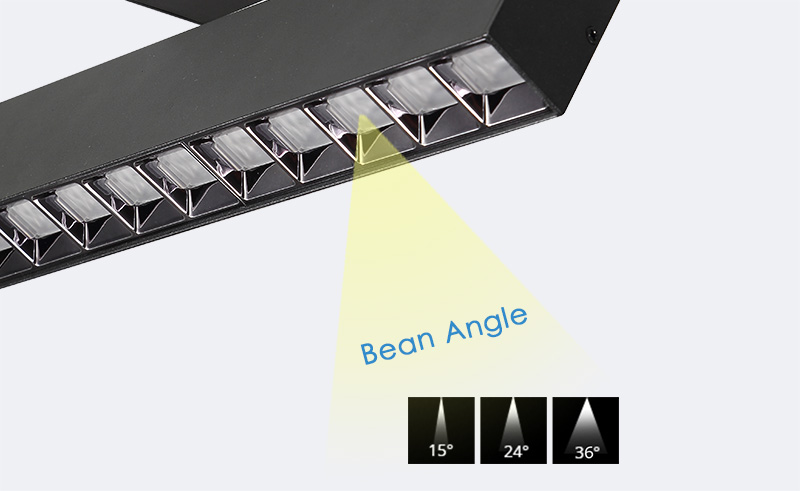

Beam Angle | XYZ35 Suspended Linear LED Light Fixtures

15° / 24° / 36° are optional for beam angle.

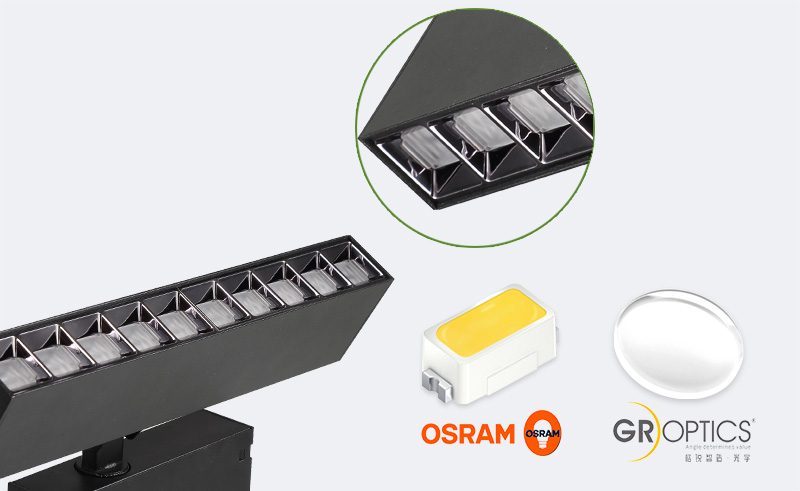

SMD Chips | XYZ35 Suspended Linear LED Light Fixtures

SMD chips are sourced from OSRAM,

A lens with GR OPTICS technology provides high CRI (above 90).

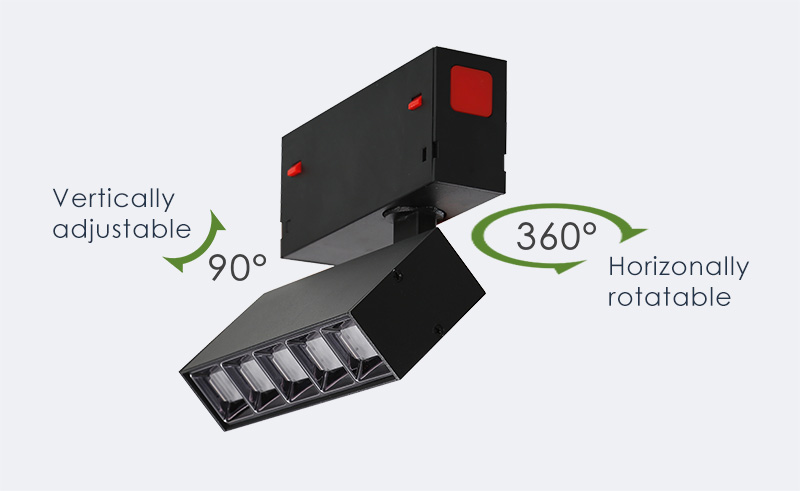

Rotatable And Suspended Linear LED Light FixturesThe type of linear LED light fixtures is vertically adjustable at 90°

and fixed with a swiveling arm that allows 360° rotation.

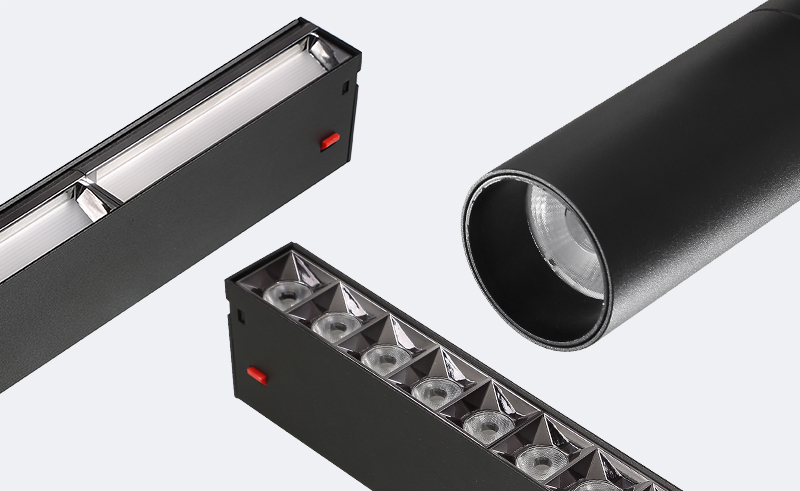

Surface Finish | XYZ35 Suspended Linear LED Light Fixtures

Die-cast aluminum housing for long-lasting use,

the surface of linear LED light fixtures is finished with stoving varnish to make the appearance more aesthetical.

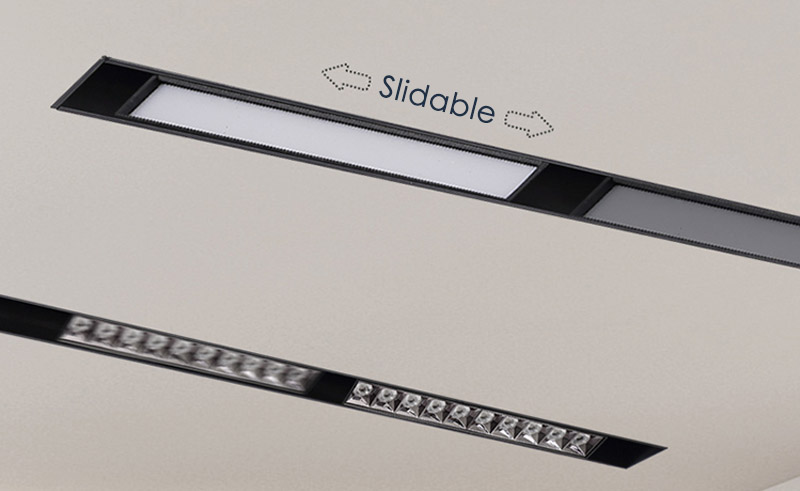

Slidable And Suspended Linear LED Light Fixtures

This lighting fixture is for 35mm magnetic track system.

Slidable on the power track rail for flexible installation.

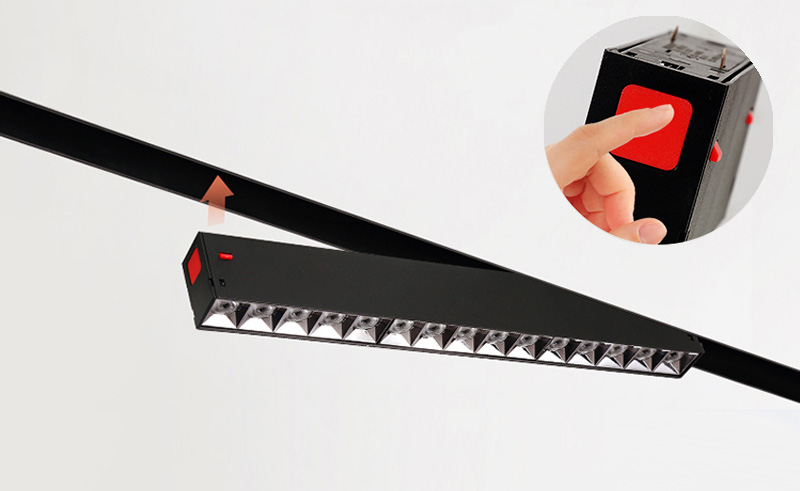

Flexible Installation | XYZ35 Suspended Linear LED Light Fixtures

This type of linear LED light fixtures has fasteners on both sides to ensure to be firmly mounted,

you can easily push the buttons at two sides to release the fixtures from the track rail.
