95-260V 35mm Smart Track Lighting System

95-260V 35mm Smart Track Lighting System

95-260V 35mm Smart Track Lighting System

Dimmable Track Lighting Heads



Dimmable Track Lighting Heads

  • CRI is above 90.
  • Dimmable led track lighting systems
  • Brightness is dimmable.
  • 90° vertically adjustable.
  • The lighting head is 360° rotatable.
  • With a smart remote-controlled system.
  • CCT is changeable from 2700K to 6000K.
  • The light beam is customizable at 15°/24°/36°.
  • CREE LED chips and GR OPTICS lens.
  • Slidable design for flexible installation.
  • Die-cast aluminum light housing.
  • Surface with stoving varnish finishing.

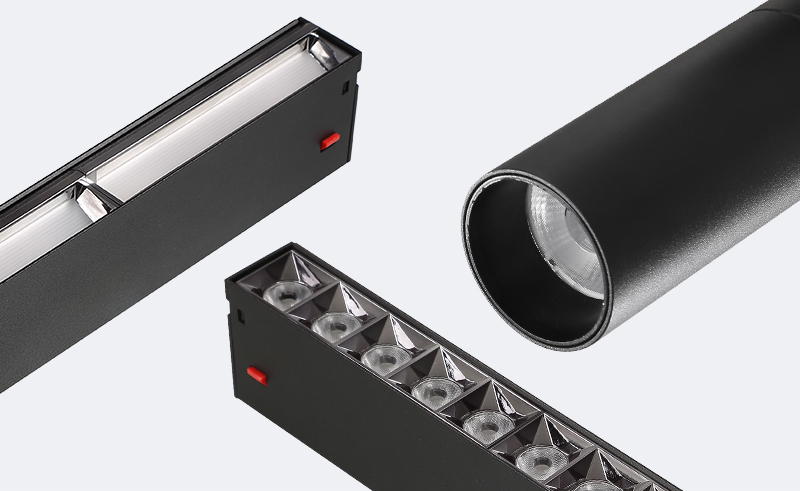

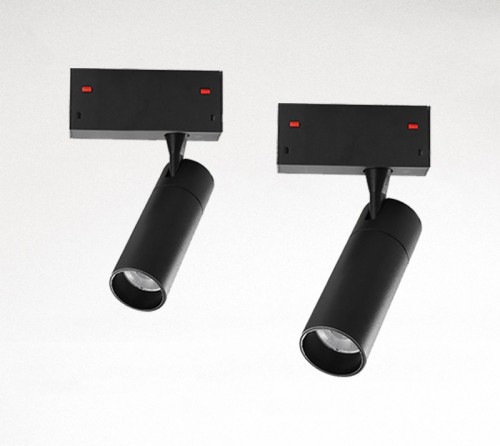

XYZ35 Dimmable LED Track Lighting Heads And Systems

This type of dimmable LED track lighting heads is compatible with the 35mm Magnetic LED Track Light System, which is originally designed by SAMPO Lighting. This system comes with the smart control system, it’s CCT and brightness can be remote-controlled by a mobile APP. The beam angle is customizable between 15° and 36°, and the lighting head is 90° vertically adjustable & 360° rotatable. LED chips are made by CREE & lens with GR OPTICS tech. Aluminum housing is well die-casted to provide out-standing thermal conductivity for long-lasting, and the surface is finished with stoving varnish to provide a stunning appearance.

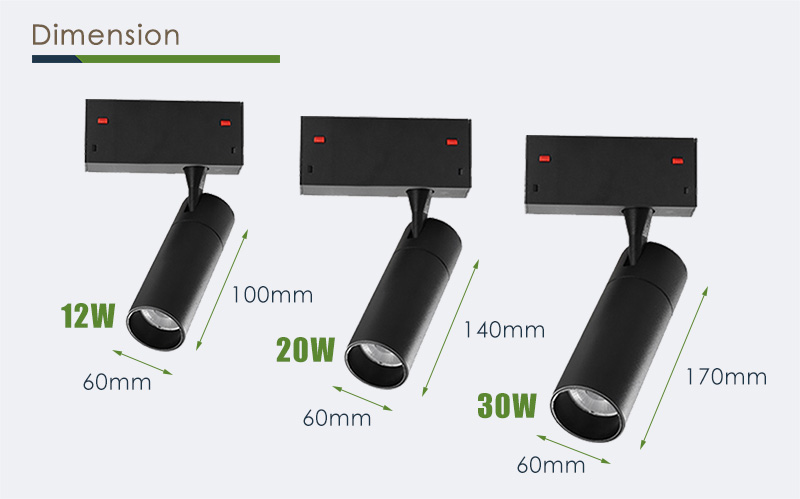

Dimension | XYZ35 Dimmable LED Track Lighting Heads And Systems



Specifications

Motel No XYZ3512DG1
XYZ3520DG1
XYZ3530DG1
LED GREE
Lens GR OPTICS
CRI Ra > 90
Power 12W / 20W / 30W
Voltage 90-265V
CCT 2700K-6000K (3 Color Changeable)
Dimmable Yes
Material Die-Casting Aluminum Alloy
Surface Finish Stoving Varnish
Size ø60 * L100mm (12w)
ø60 * L140mm (20w)
ø60 * L170mm (30w)
Beam Angle 15° / 24° / 36° (Customizable)

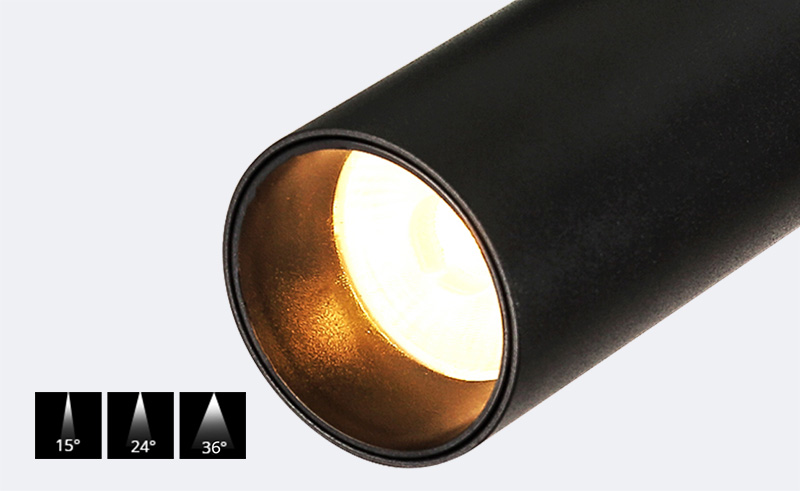

Bean Angle | XYZ35 Dimmable LED Track Lighting Heads And Systems

Bean angle is optional (15° / 24° / 38°)

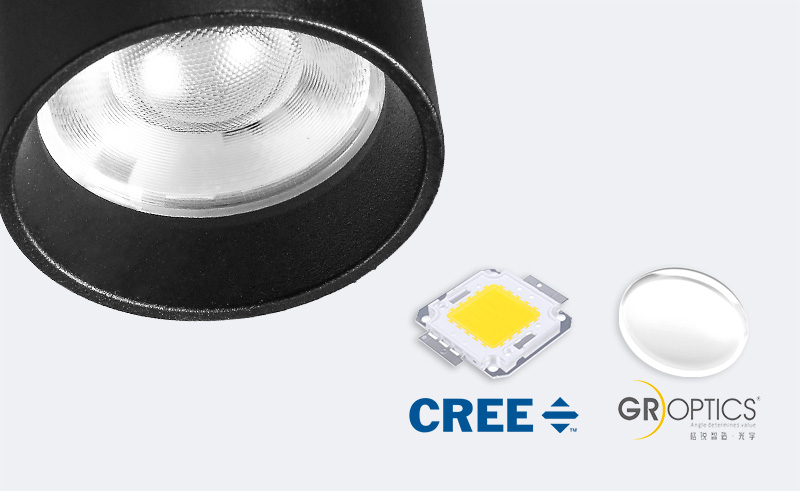

COB Chips | XYZ35 Dimmable LED Track Lighting Heads And Systems

COB chips are sourced from CREE,

Lens applied GR OPTICS technology

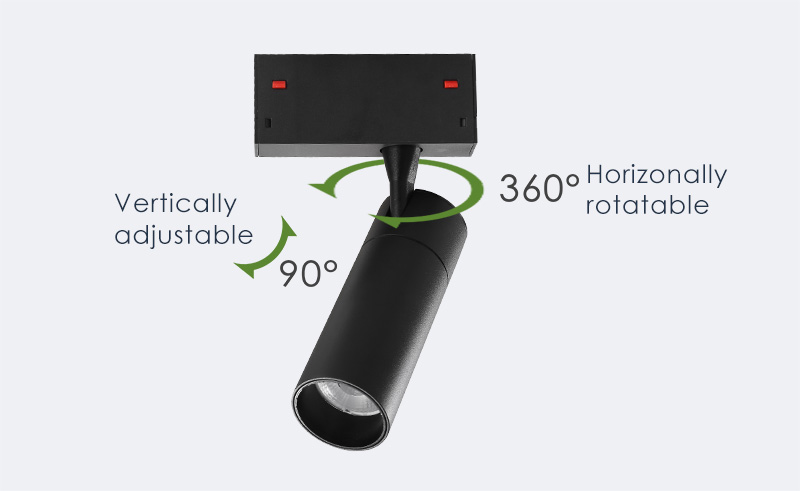

Rotatable XYZ35 Dimmable LED Track Lighting Heads And Systems

The track light head is fixed with a swiveling arm that allows 360° rotation,

and vertically adjustable at 90°.


Surface Finish | XYZ35 Dimmable LED Track Lighting Heads And Systems

Premium aluminum housing is featured with excellent thermal conductivity,

and provides long-lasting use, Stoving varnish finish looks aesthetic.

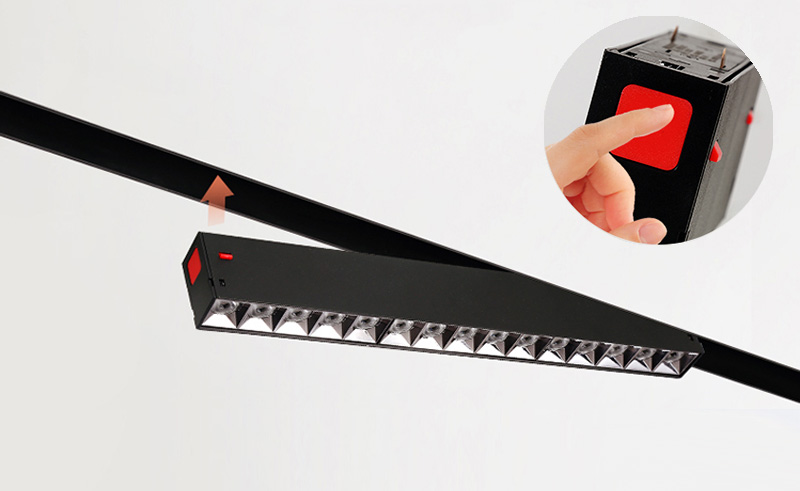

Flexible Installation | XYZ35 Dimmable LED Track Lighting Heads And Systems

This dimmable led track lighting has fasteners to ensure to be firmly mounted,

you can easily push the buttons at two sides to release the fixtures from the track rail.

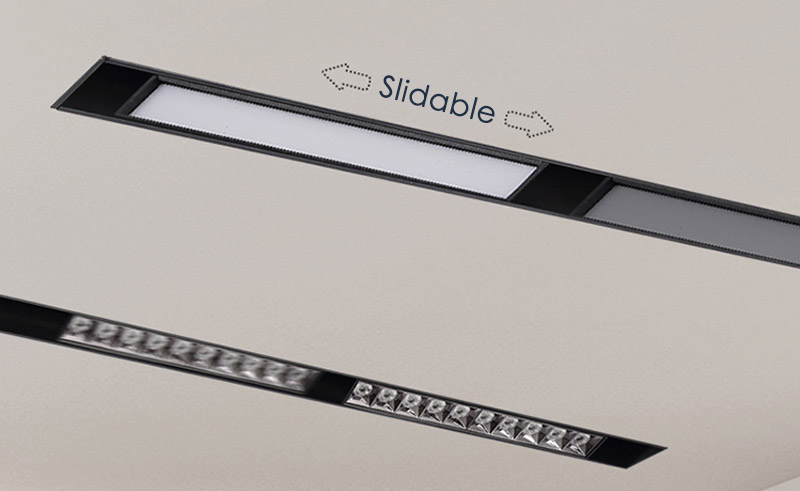

Slidable XYZ35 Dimmable LED Track Lighting Heads And Systems

This type of dimmable led track lighting system is for a 35mm magnetic track system.

Slidable on the power track rail for flexible installation.
