95-260V M35 Smart Track Light System

95-260V M35 Smart Track Light System

95-260V M35 Smart Track Light System

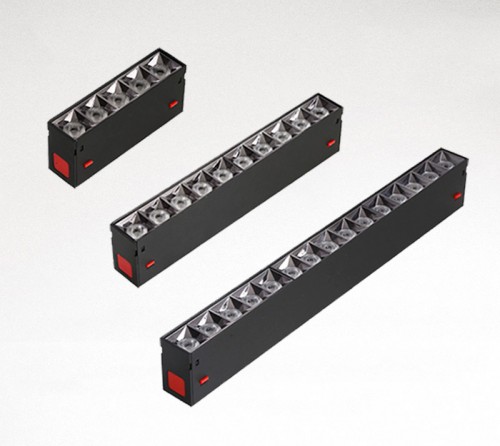

Linear LED Light



Linear LED Light

  • 8W/16W/24W available
  • Suspended linear LED lighting systems
  • Brightness is dimmable.
  • CRI is above 90.
  • With a smart remote-controlled system.
  • CCT is changeable between 2700K and 6000K.
  • The beam angle is 24° spotlight application.
  • SMD chips by Osram.
  • GR OPTICS lens offers high CRI.
  • Slidable design for flexible installation.
  • High-quality die-cast aluminum housing.
  • Stoving varnish finished surface.

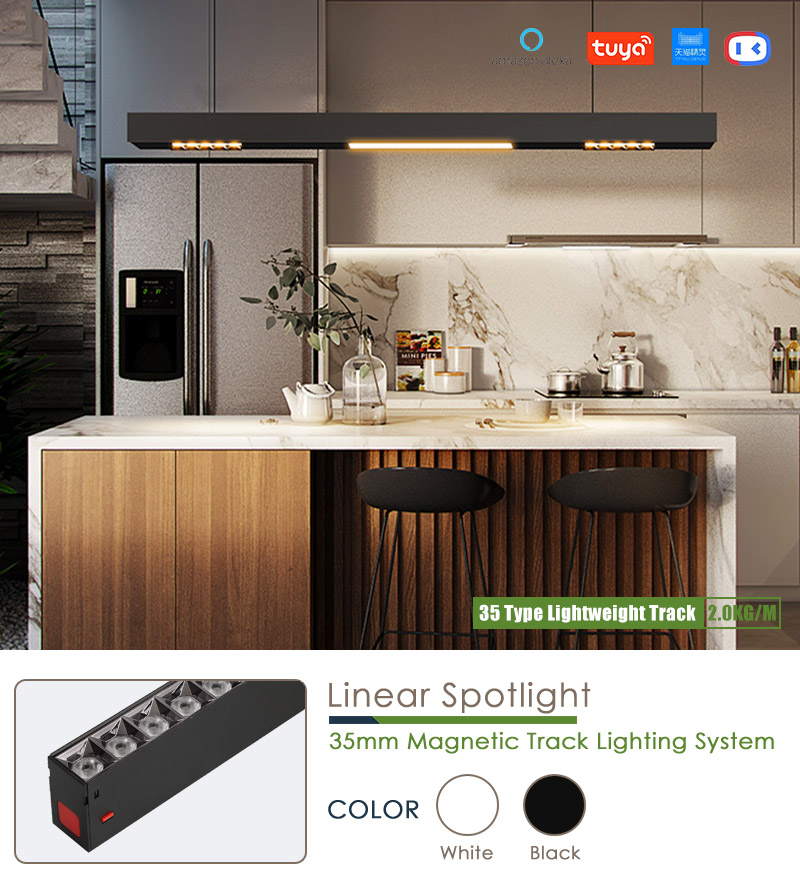

XYZ35 Suspended Linear LED Lighting Systems

This linear LED lighting fixture has 8W / 16W / 24W three options and has a smart control system to remote control CCT and brightness via mobile APPs. It’s compatible with the 25mm Magnetic Track Light System, which is originally designed by SAMPO Lighting. The spotlight beam angle is 24°. The SMD chips were manufactured by OSRAM, the lens with GR OPTICS technology offers high CRI (Ra > 90). Aluminum housing is well die-cast to provide out-standing thermal conductivity for long-lasting use, and the surface is finished with stoving varnish to provide a stunning appearance.

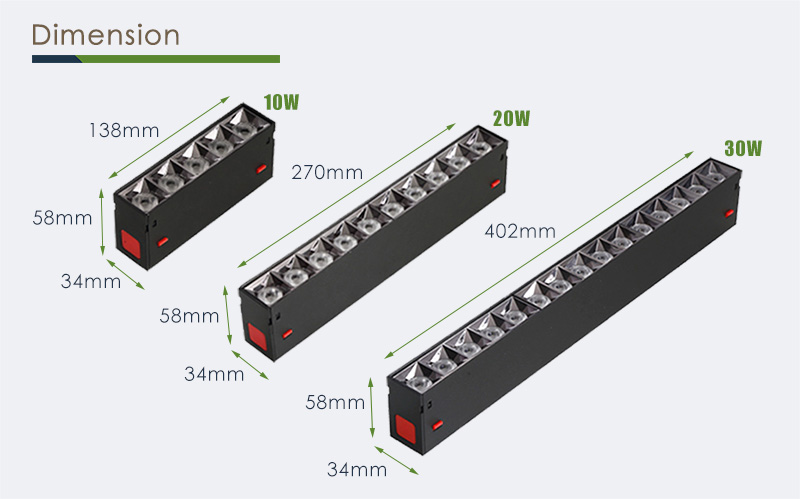

Dimension | XYZ35 Suspended Linear LED Lighting Systems



Specifications

Motel No

XYZ3508S

XYZ3516S

XYZ3524S

LED Osram
Lens GR OPTICS
CRI Ra > 90
Power 8W / 16W / 24W
Voltage 90-265V
CCT 2700K-6000K (3 Color Changeable)
Dimmable Yes
Material Die-Casting Aluminum Alloy
Surface Finish Stoving Varnish
Size L138 * W34 * H58mm (8W)
L270 * W34 * H58mm (16W)
L270 * W34 * H58mm (24W)
Beam Angle 24°

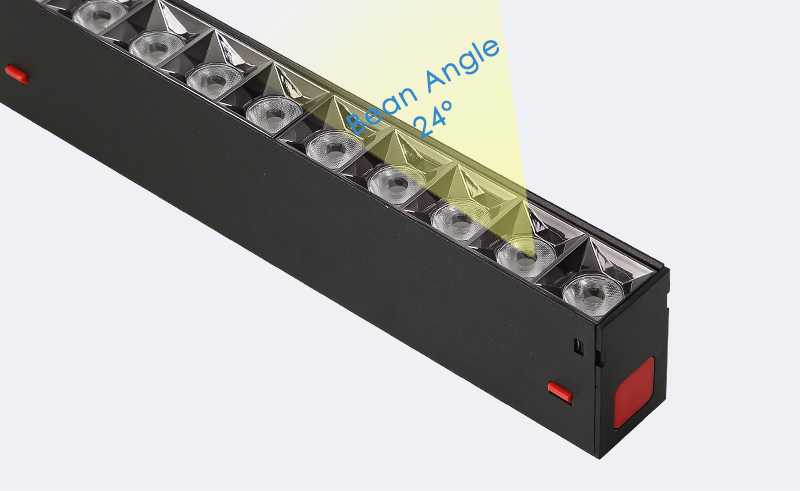

Beam Angle | XYZ35 Suspended Linear LED Lighting Systems

This linear LED lighting fixture produces a beam angle at 24° bean angle to highlight objects.

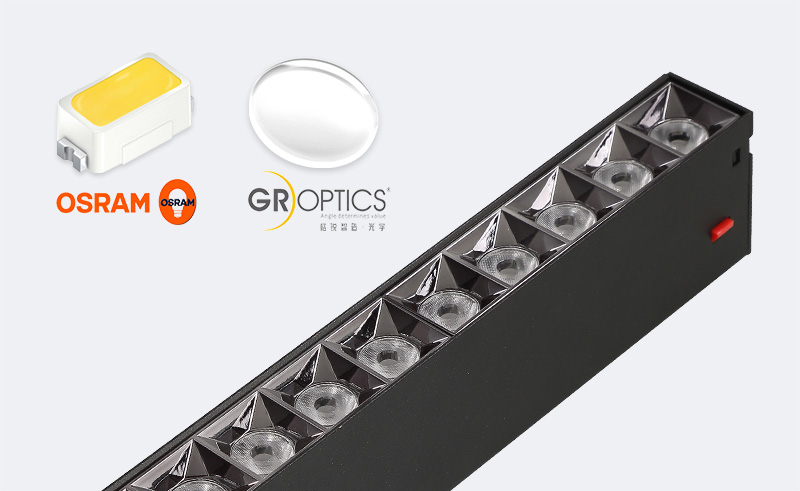

SMD Chips | XYZ35 Suspended Linear LED Lighting Systems

SMD chips are sourced by OSRAM,

A lens with GR OPTICS technology offers high CRI (Ra > 90).



Surface Finish | XYZ35 Suspended Linear LED Lighting Systems

Die-cast aluminum housing for long-lasting use,

the surface of this linear LED lighting is finished with stoving varnish to make the appearance more aesthetical.

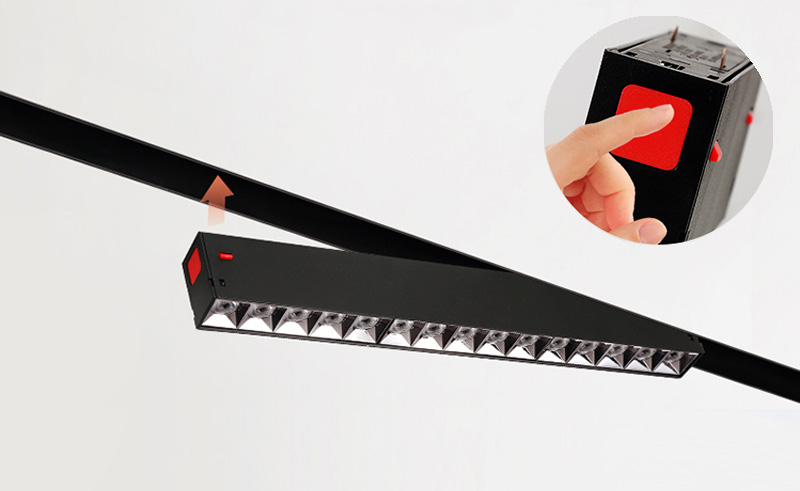

Flexible Installation | XYZ35 Suspended Linear LED Lighting Systems

This linear LED lighting fixture has fasteners to ensure to be firmly mounted,

you can easily push the buttons at two sides to release the fixtures from the track rail.

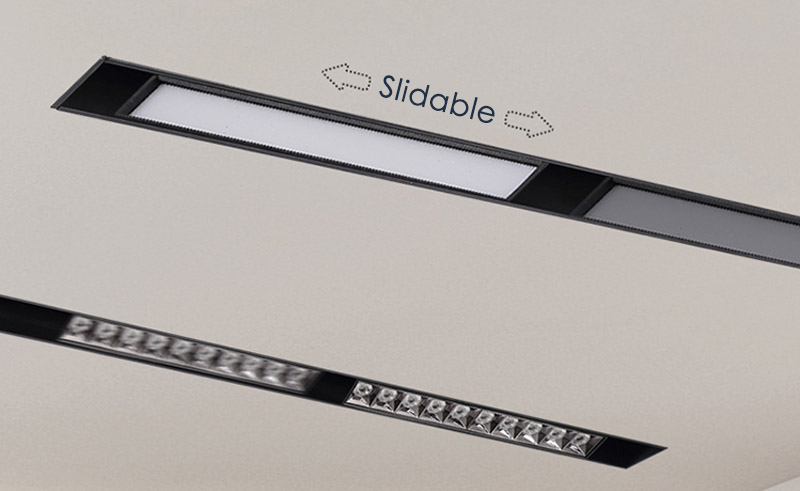

Slidable Suspended Linear LED Lighting Systems

This linear LED lighting fixture is for a 35mm magnetic track system.

Slidable on the power track rail for flexible installation.
