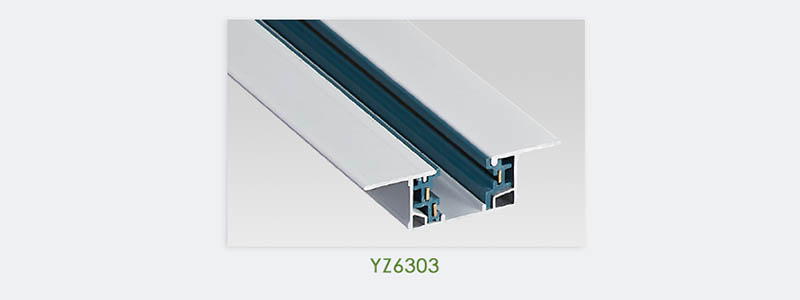

Three-Wire Track Rail

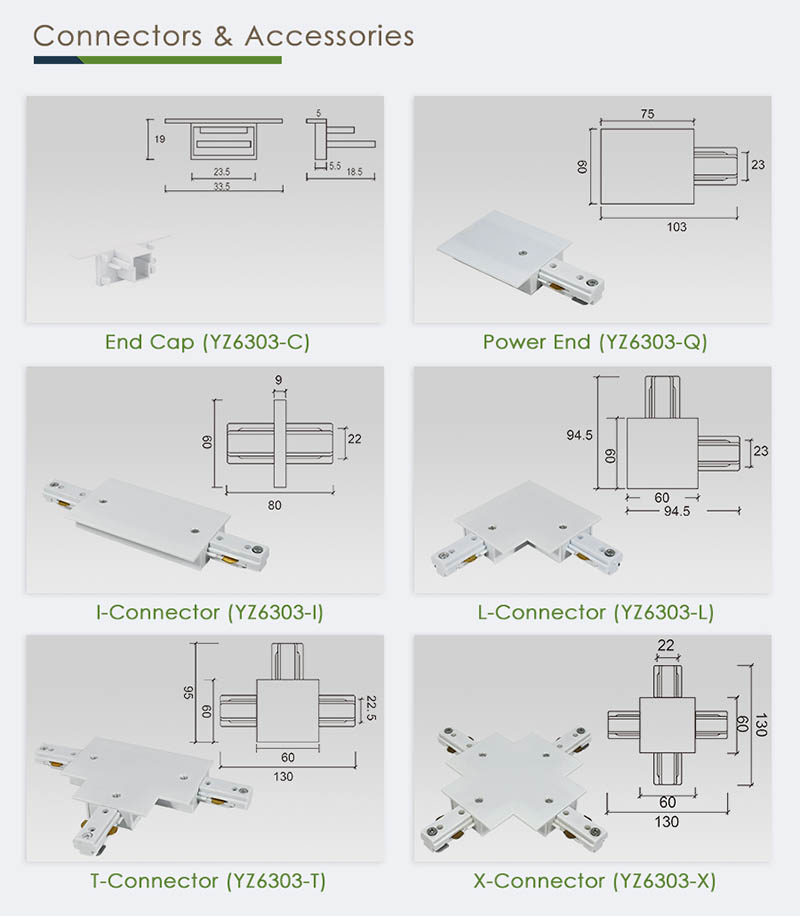

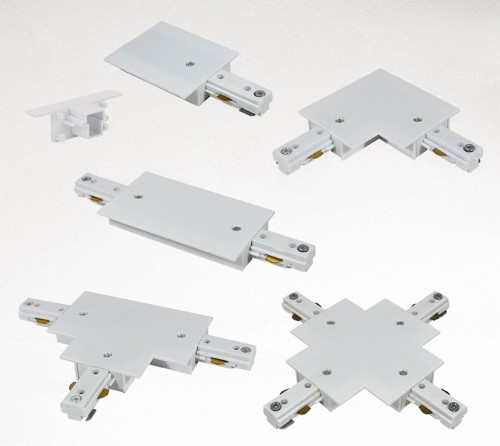

YZ6303 Track Connectors & Accessories
- Compatible with YZ6303 track rails.
- For recessed track lighting system.
- Flame retardancy PC plastic material shell.
- High performance at electrick insulation.

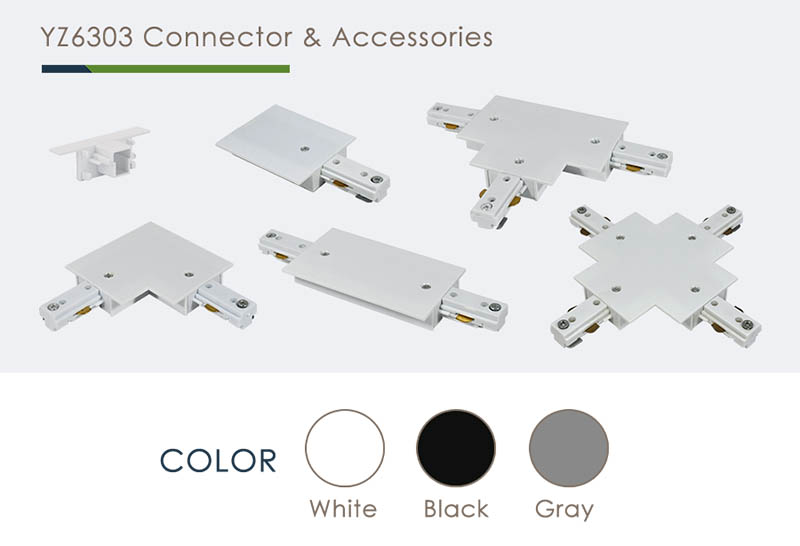

- White, black, and other custom colors are available.
- Copper pieces for high performance at conductivity.
YZ6303 track light power feed and connector are for 3 wire 1 circuit recessed track lighting systems to construct the lighting track layout. The connector body was made of PC material with features of flame retardancy & insulation to ensure electrical safety, it comes with brass contact pieces for power conducting between track rails.
Specifications
| Item No. | YZ6303 |
| Brand | Sampo |
| Wire type | Three-Wire |
| Circuit type | One-Circuit |
| Material | PC Plastic |
| Colors | White, black, customized |
| Certificated | CE, RoHS |
| Application | Indoor commercial |
| Packing | Carton |

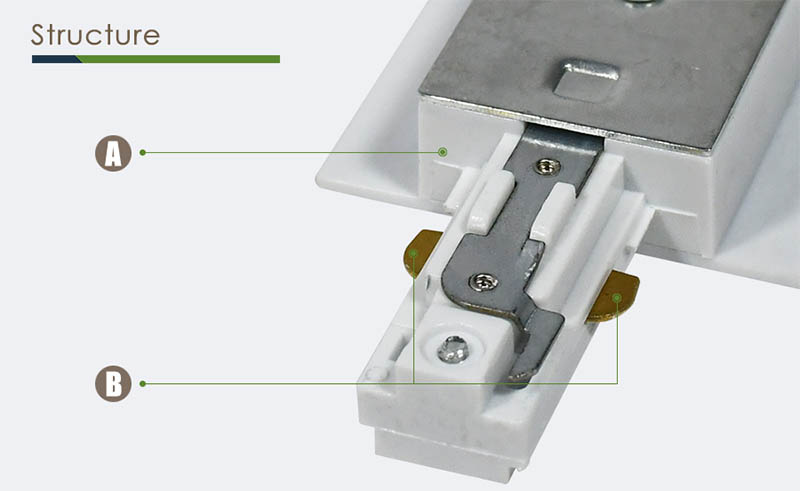

A. Body material is PC has excellent features of flame retardancy & insulation to ensure electrical safety.
B. Brass contact pieces have high performance at conductivity.
