Three-Wire Track Rail

Three-Wire Track Rail

Three-Wire Track Rail

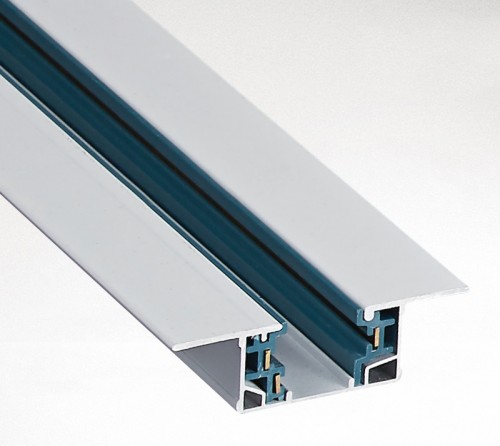

YZ6303 Recessed Track Rail



YZ6303 Recessed Track Rail

  • For recessed track lighting systems.
  • 3-wire and 1-circuit track system.
  • High performance at thermal conductivity.
  • Extruded alum-alloy profile.
  • 3 pcs of copper strips for electrical conductivity.
  • The copper strips conduct well at power supply.
  • Flame-retarded PVC strips ensure electrical safety.
  • Surface finished with powder coating.
  • White & black color are available.

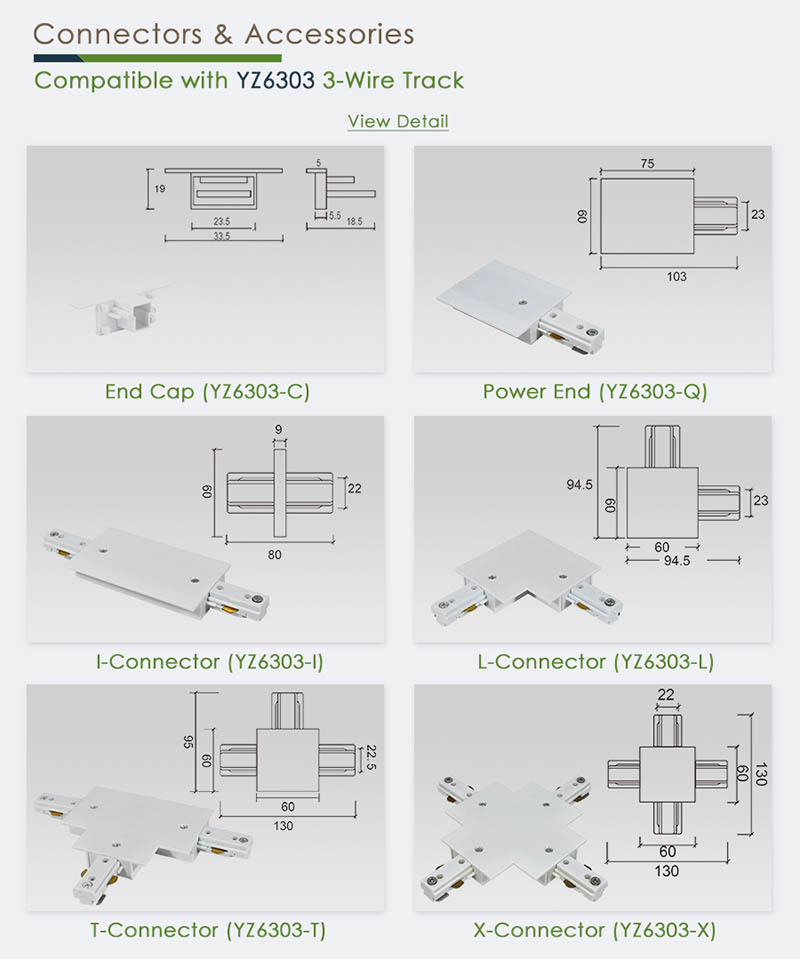

  • Varied types of connectors are available.

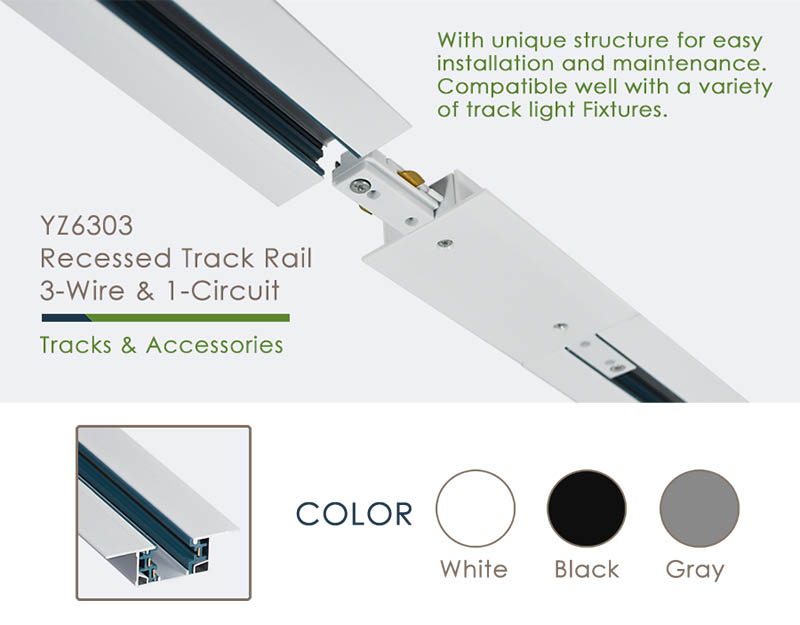

YZ6303 lighting track rail is for 3-wire and 1-circuit recessed track lighting systems to fix lighting fixtures and provide power. The track rail body was made of premium extruded alum-alloy profile, comes with 3 pieces of copper conducting strips, which are insulated by flame-retarded PVC material. This track rail is compatible with several types of connectors and accessories for versatile lighting layouts and designs.



Stunning designed and well surface finished with powder coating, regular colors are white and black, and other custom colors are available.



Specifications

Item No. YZ6303
Brand Sampo
Wire type Three-Wire
Circuit type One-Circuit
Material Extruded alum-ally profiles
Surface Finished Powder coating
Colors White, black, customized

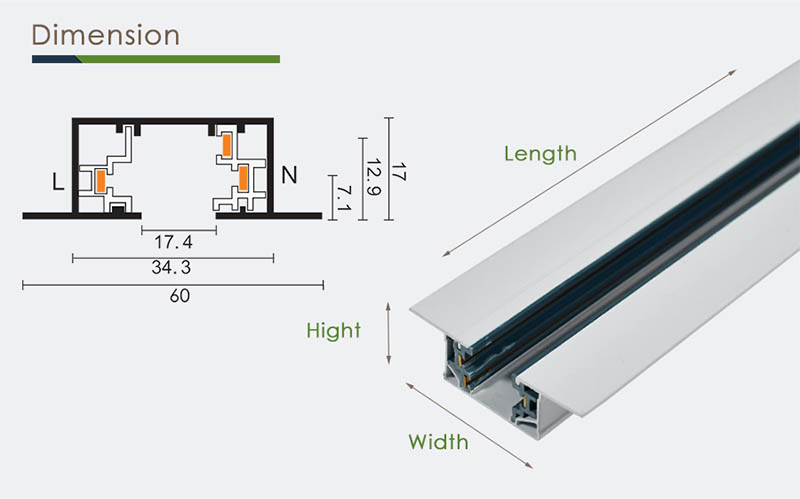

Size 60mm x 17mm
Length 1.0 / 1.5 / 2.0 / 3.0M
Certificated CE, RoHS
Application Indoor commercial
Packing Carton



Optional Length: 1.0 / 1.5 / 2.0 / 3.0 Meter

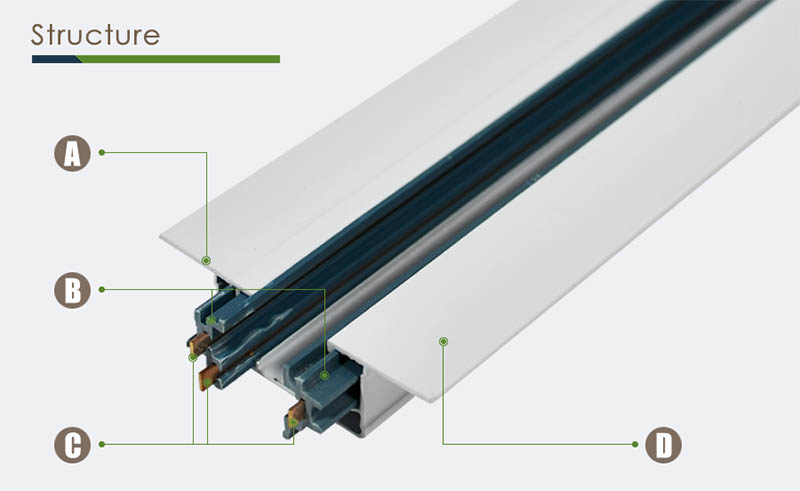

A. Housing was made of alum-alloy profile that is durable and good at thermal conductivity.
B. Flame-retarded PVC strips come with good insulation to ensure electrical safety.
C. Premium copper strips have high performance at electrical conductivity.
D. The surface of this recessed lighting track was finished with powder coating, available with white, black, and other colors.
