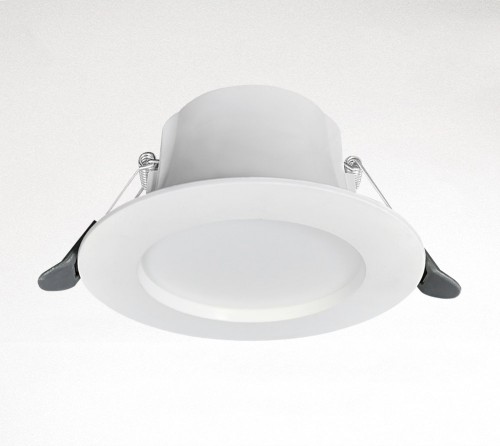

YZ8200 SMD LED Downlight



YZ8200 SMD LED Downlight

  • Regular powers: 5W.
  • SMD chips are optional from famous brands.
  • Voltage AC75V~248V available on request
  • Black, white and gray colors are available.

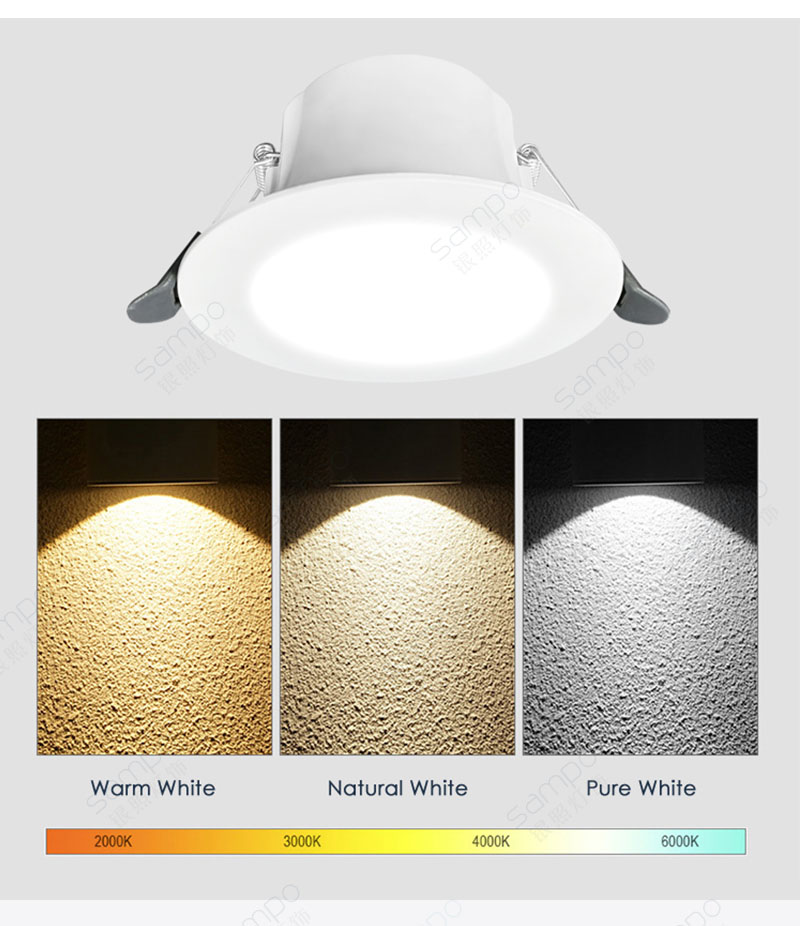

  • Color temperature 3000K~6000K available on request
  • The housing is made of flame-retardant PC material.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.

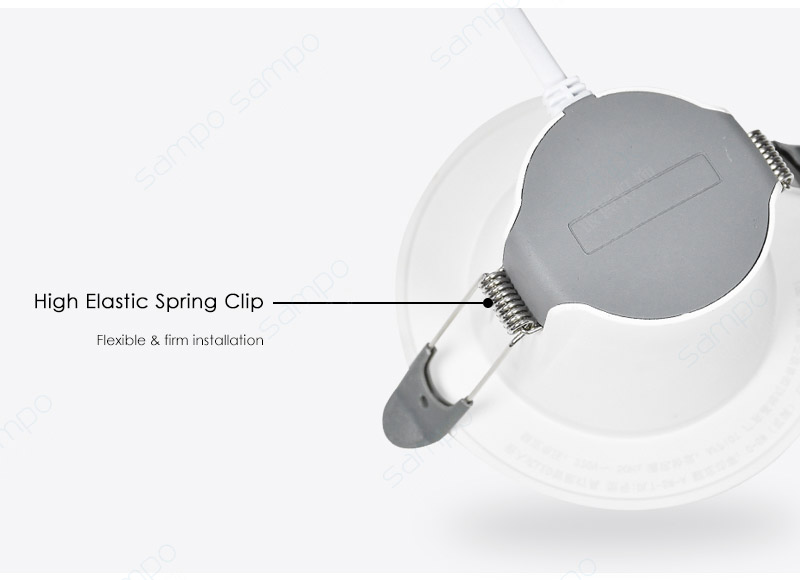

  • With spring clips to fix the fixture without tools.





YZ8200 SMD LED downlight is an & excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smartphone from anywhere at anytime. SMD chips are optional from some famous brands. Durable flame-retardant PC housing performs well at thermal conduction. With safe and reliable transformer to supply power, voltage AC75V~265V is available on requests.



The surface of the SMD LED downlight was finished with powder coating, and has white & black as standard colors, comes with stunning design.



Specifications

Motel No YZ8200
Power 5W
Voltage 75-265V
Lum. Efficiency 80lm/w
Working Temp. -20~50°C
CCT. 3000-6000K
CRI Ra>80
LED Source SMD
Housing Material Flame-Retardant PC
Finishing Powder Coating
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 2 Years
Dimmable Y
CCT Adjustable Y

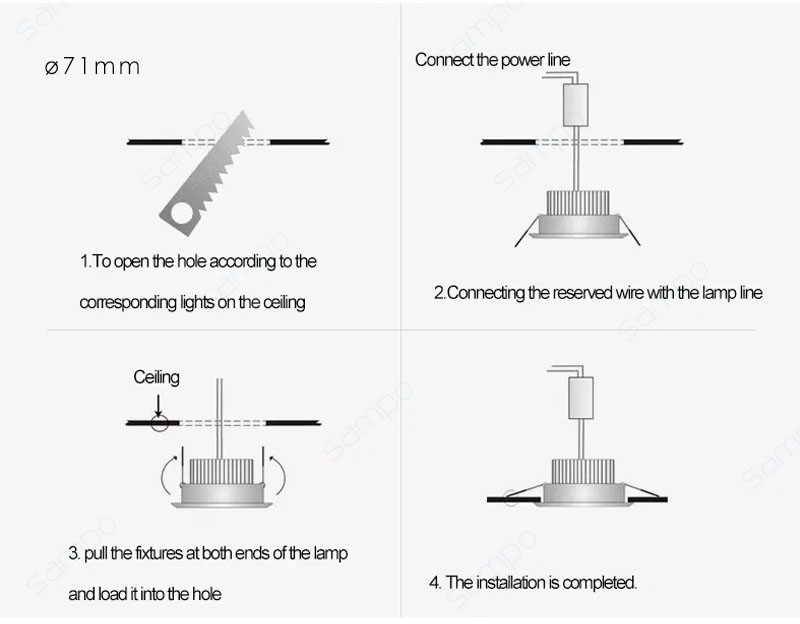

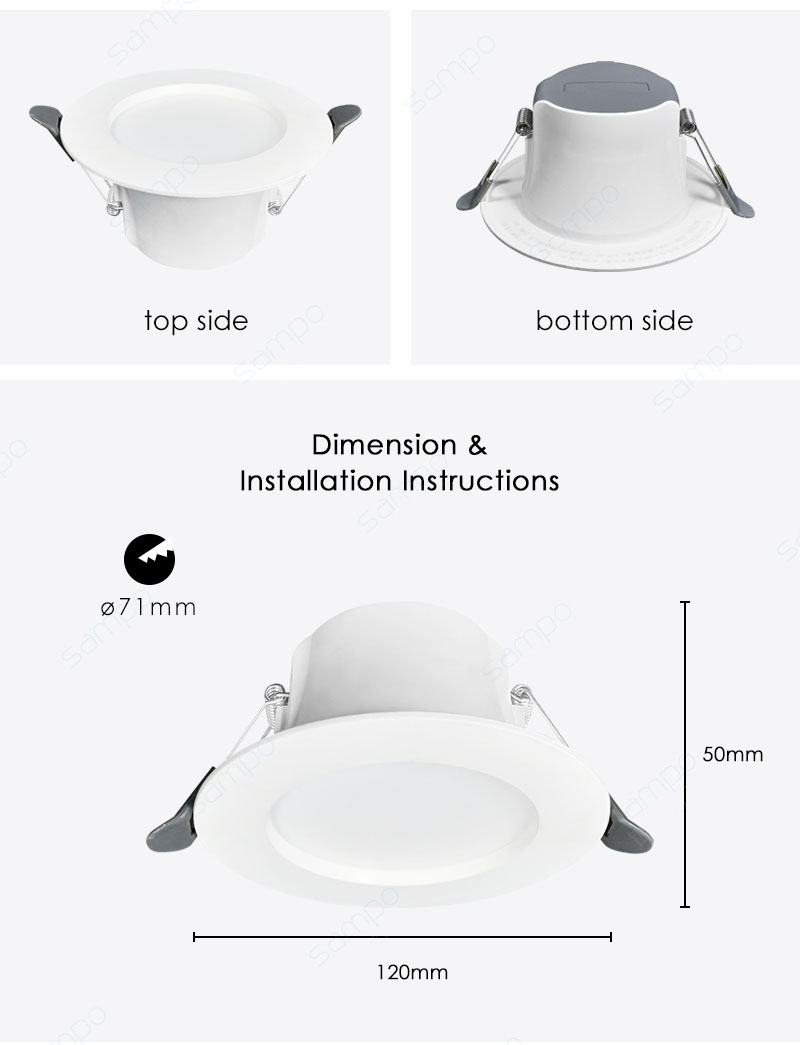

Size Of Cut-Off Φ71mm
Size Of Surface Φ78mm
Height 82mm



SMD chips are optionally sourced from Epistar, Osram and other famous brand.

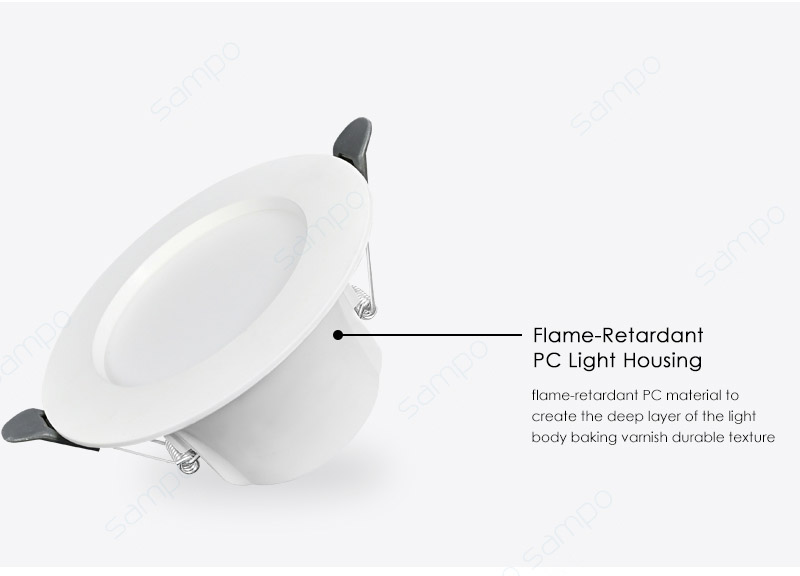

The housing of the SMD LED downlight is made of flame-retardant PC material, which is durable and has perfect performance at insulativity and thermal conductivity.
