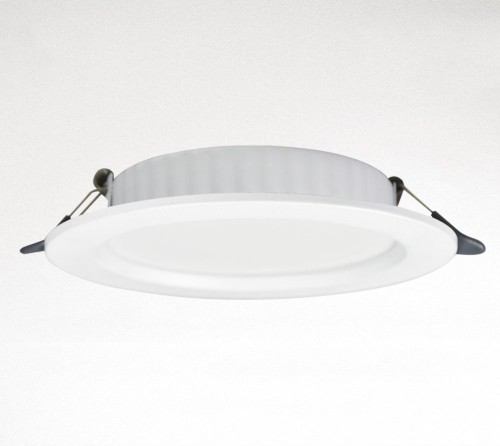

YZ8201 SMD LED Downlight



YZ8201 SMD LED Downlight

  • Smart LED Down Lights.
  • Regular powers: 5W/7W/12W/15W.
  • SMD chips are optional from famous brands.
  • Voltage AC75V~248V available on request
  • Black, white and gray colors are available.
  • Color temperature 3000K~6000K available on request
  • The housing is made of flame-retardant PC material.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.
  • With spring clips to fix the fixture without tools.



YZ8201 Smart LED Down Lights



YZ8201 smart LED down lights are an & excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smartphone from anywhere at any time. SMD chips are optional from some famous brands. Durable flame-retardant PC housing performs well at thermal conduction. With a safe and reliable transformer to supply power, voltage AC75V~265V is available on requests.

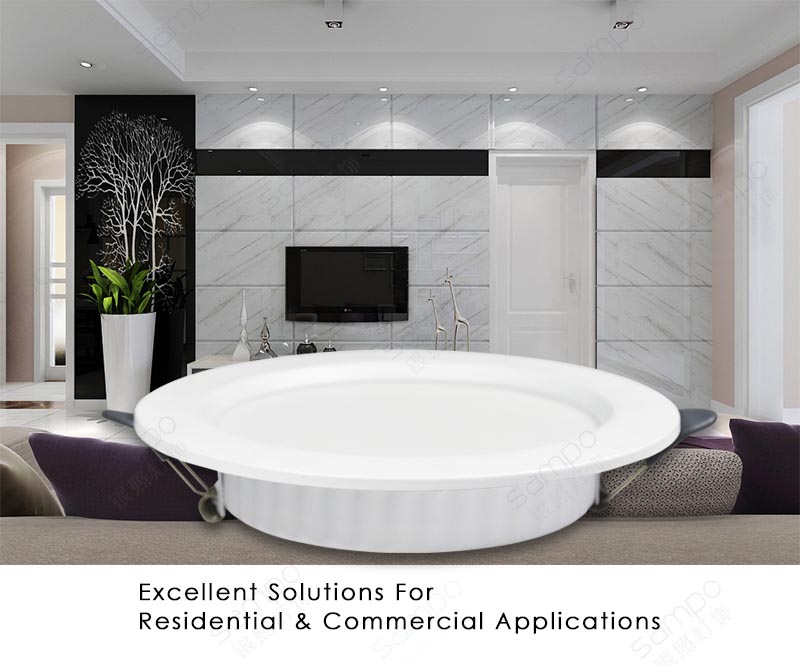

Excellent Solutions | YZ8201 Smart LED Down Lights

The surface of the smart down lights was finished with powder coating and has white & black as standard colors, which comes with a stunning design.



Specifications

Motel No YZ8201
Power 5W/7W/12W/18W
Voltage 80V
Lum. Efficiency 80lm/w
Working Temp. -20~50°C
CCT. 3000-6000K
CRI Ra>80
LED Source SMD
Housing Material Flame-Retardant PC
Finishing Powder Coating
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 2 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ80/100/125/165mm
Size Of Surface Φ98/118/145/178mm
Height 30/32/33/36mm

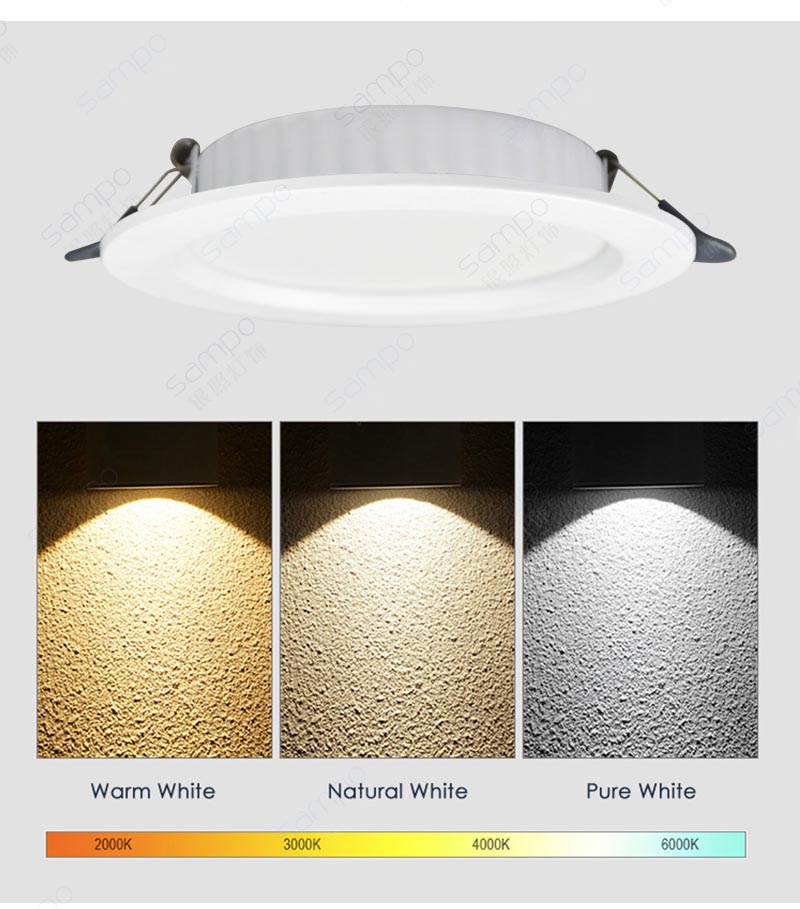

CCT Performance | YZ8201 Smart LED Down Lights

SMD chips are optionally sourced from Epistar, Osram and other famous brand.

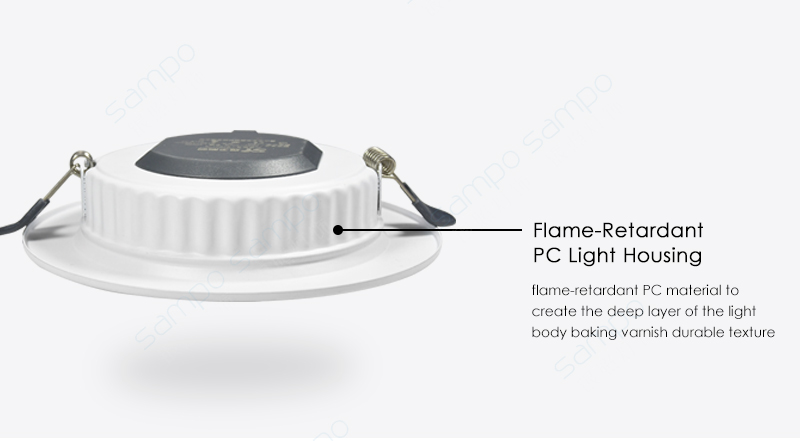

Housing | YZ8201 Smart LED Down LightsThe housing of the smart LED down lights is made of flame-retardant PC material, which is durable and has perfect performance at insulative and thermal conductivity.

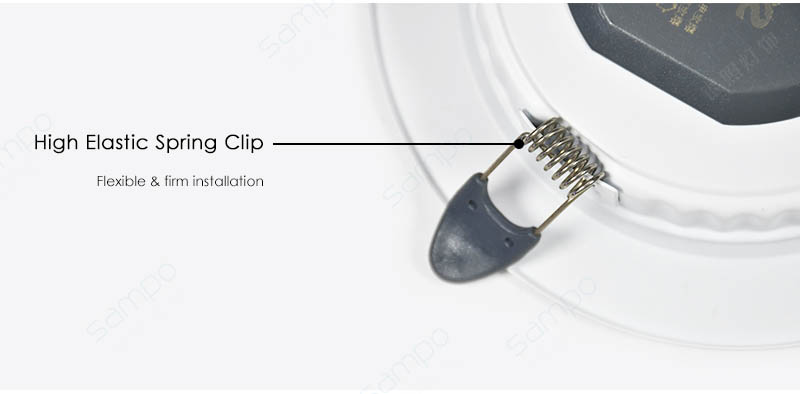

Spring Clip | YZ8201 Smart LED Down Lights

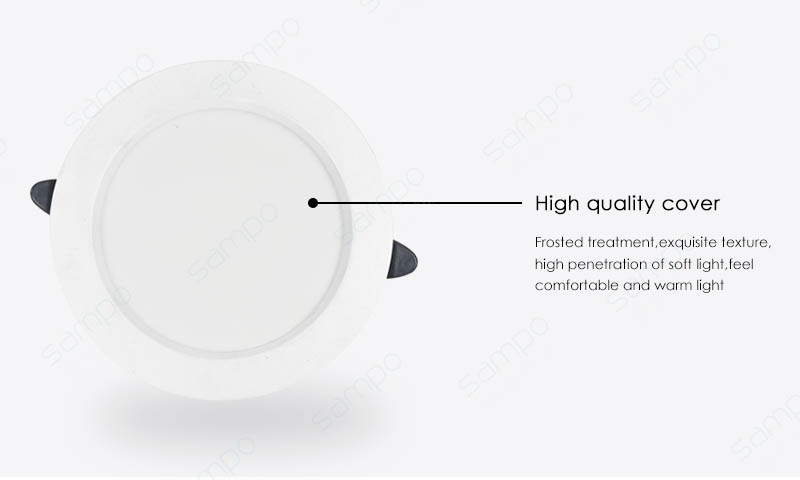

Cover | YZ8201 Smart LED Down Lights

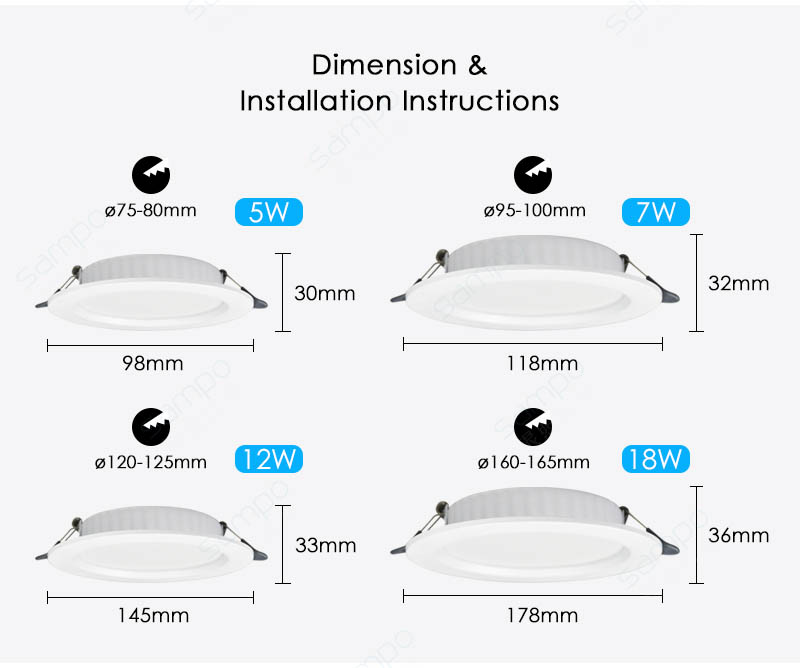

Dimension | YZ8201 Smart LED Down Lights

Installation | YZ8201 Smart LED Down Lights
