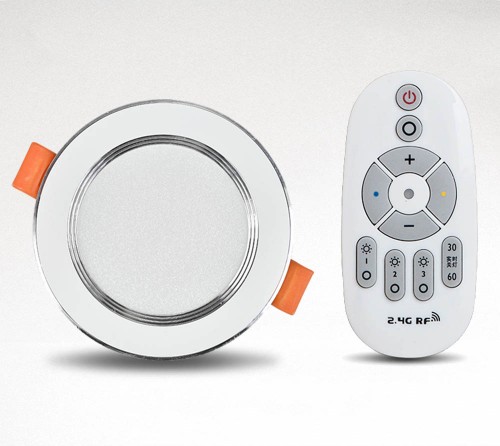

YZ8202 SMD LED Downlight

YZ8202 SMD LED Downlight

  • Smart WiFi LED Downlights.
  • Regular powers: 5W/7W/12W/15W.
  • SMD chips are optional from famous brands.
  • Voltage AC75V~248V available on request
  • Black, white and gray colors are available.
  • Color temperature 3000K~6000K available on request
  • The housing is made of flame-retardant PC material.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.
  • With spring clips to fix the fixture without tools.


YZ8202 Smart WiFi LED Downlights


YZ8202 smart WiFi LED downlights are an & excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smartphone from anywhere at any time. SMD chips are optional from some famous brands. Durable flame-retardant PC housing performs well at thermal conduction. With a safe and reliable transformer to supply power, voltage AC75V~265V is available on requests.

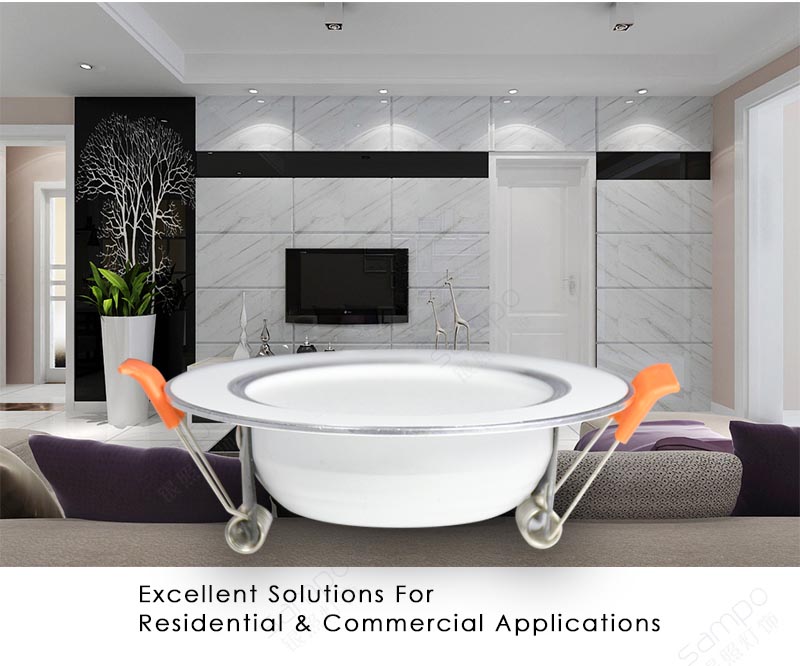

Excellent Solutions | YZ8202 Smart WiFi LED Downlights

The surface of the smart downlights was finished with powder coating and has white & black as standard colors, which comes with a stunning design.



Motel No YZ8202
Power 5W/7W/12W/18W
Voltage 80V
Lum. Efficiency 80lm/w
Working Temp. -20~50°C
CCT. 3000-6000K
CRI Ra>80
LED Source SMD
Housing Material Flame-Retardant PC
Finishing Powder Coating
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 2 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ80/100/125/165mm
Size Of Surface Φ98/118/145/178mm
Height 30/32/33/36mm

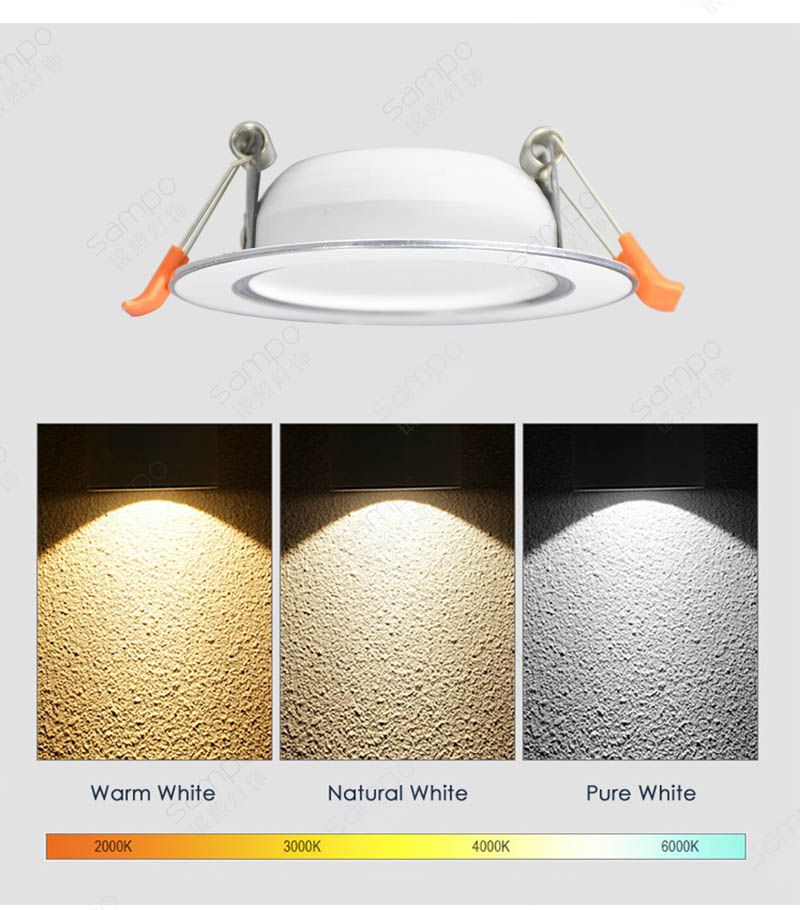

CCT Performance | YZ8202 Smart WiFi LED Downlights

SMD chips are optionally sourced from Epistar, Osram, and other famous brands.

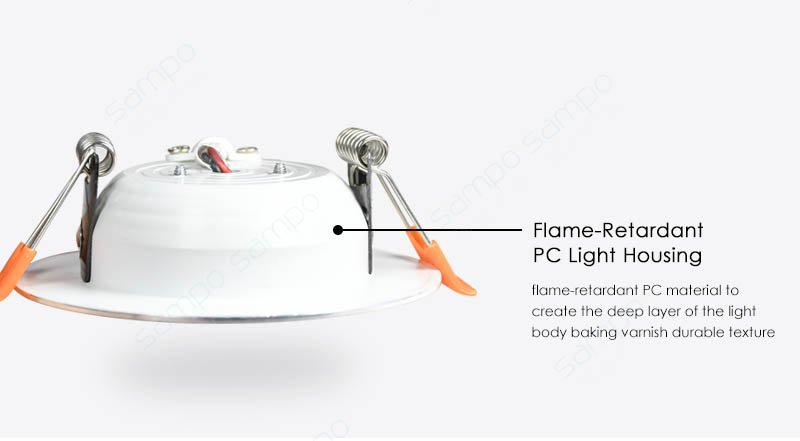

Housing | YZ8202 Smart WiFi LED DownlightsThe housing of the WiFi LED downlights is made of flame-retardant PC material, which is durable and has perfect performance at insulative and thermal conductivity.

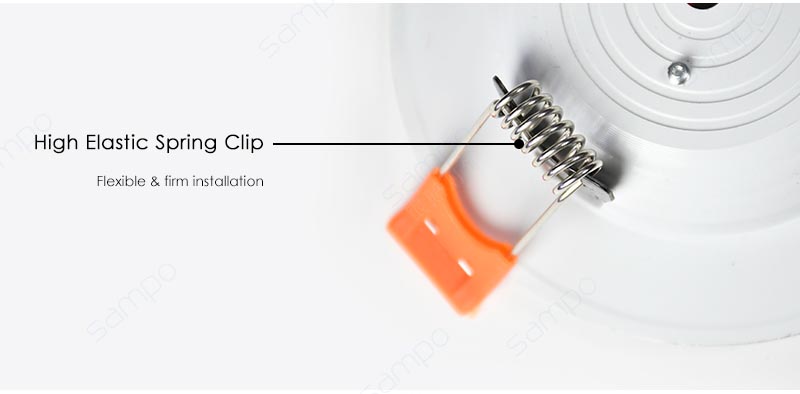

Spring Clip | YZ8202 Smart WiFi LED Downlights

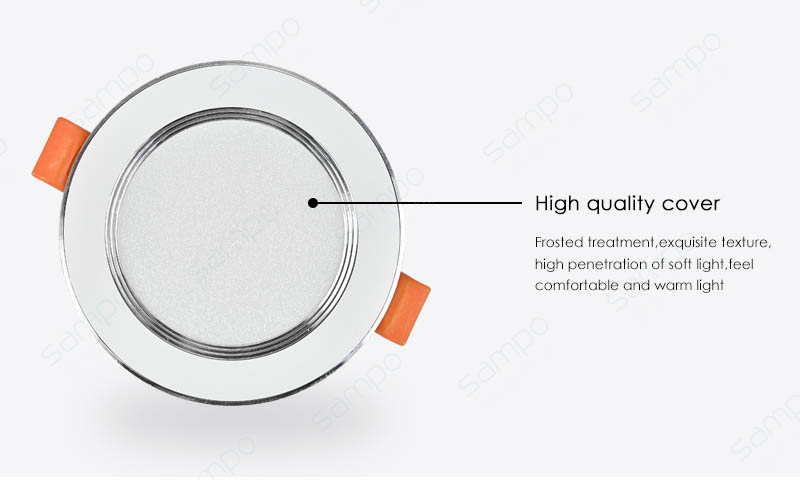

Cover | YZ8202 Smart WiFi LED Downlights

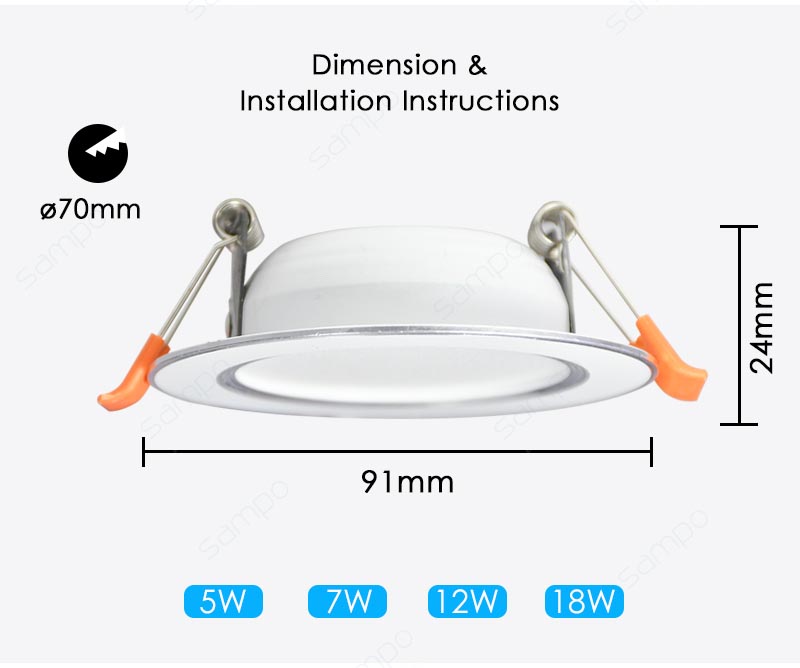

Dimension | YZ8202 Smart WiFi LED Downlights

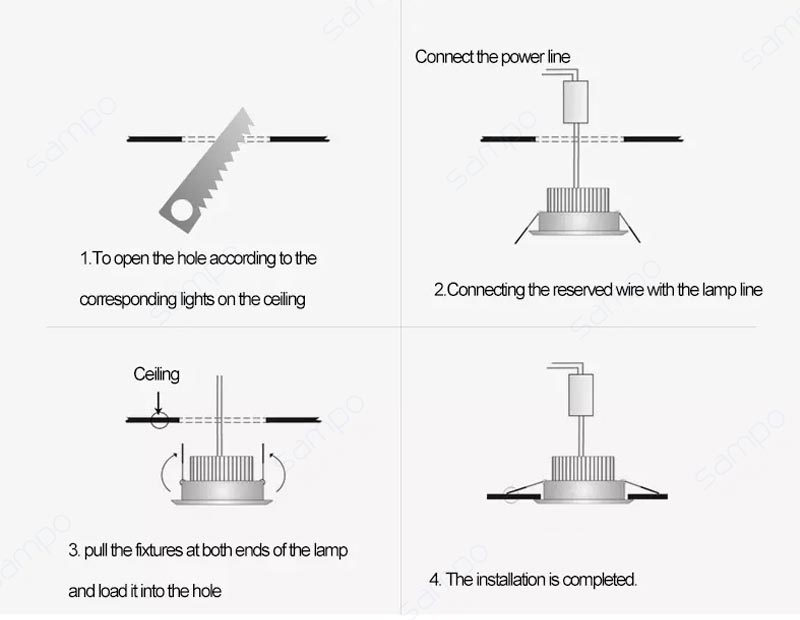

Installation | YZ8202 Smart WiFi LED Downlights
