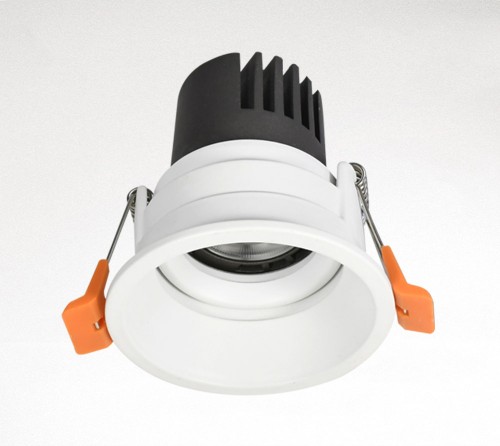

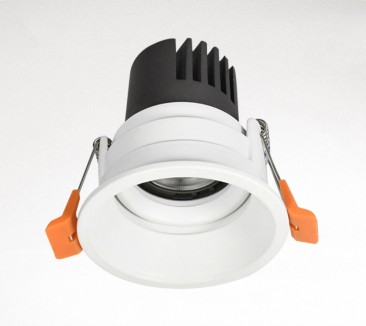

YZ8121 LED Downlight Module



YZ8121 LED Downlight Module

  • Regular powers: 7W/8W/9W/10W/12W.
  • Voltage AC75V~248V available on request
  • Black, white and gray colors are available.

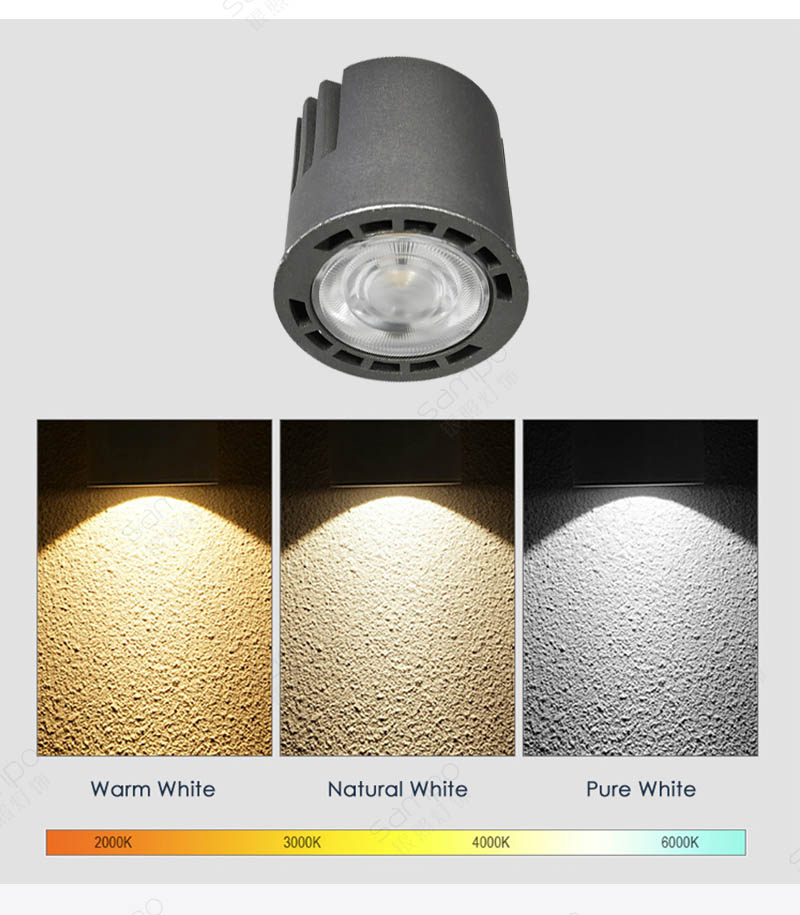

  • Color temperature 3000K~6000K available on request

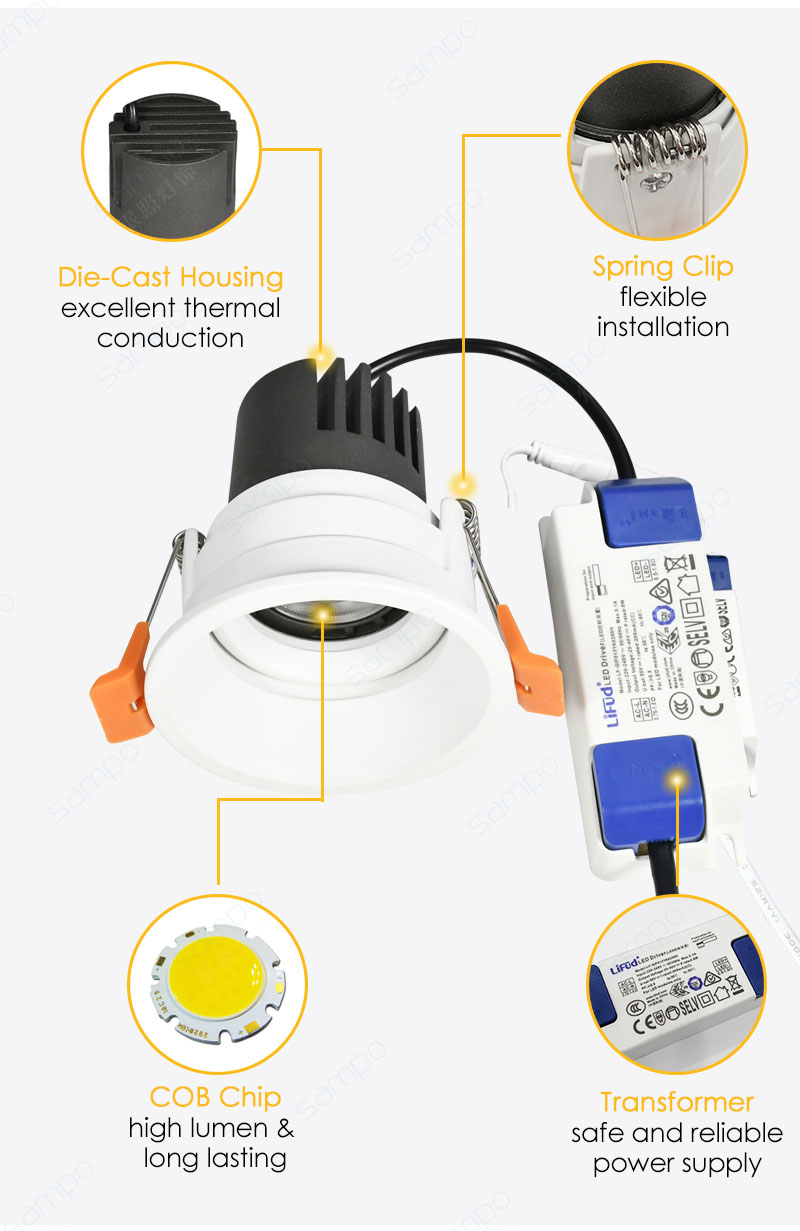

  • The housing is made of premium die-cast aluminum.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.
  • COB chips are optionsl from famous brands.

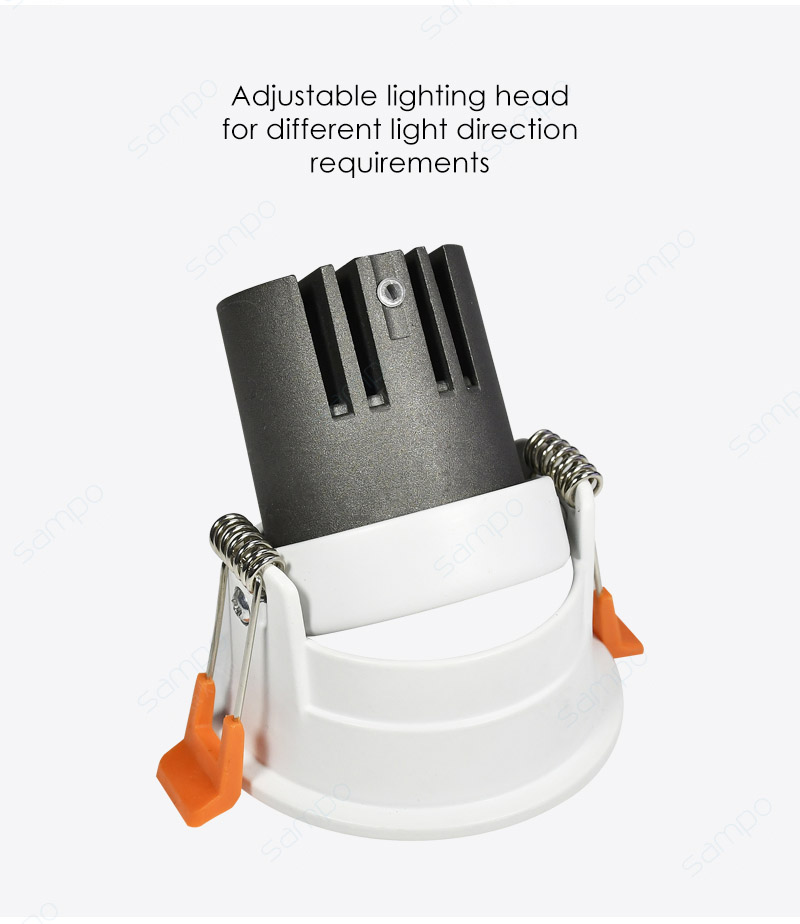

  • With spring clips to fix the fixture without tools.

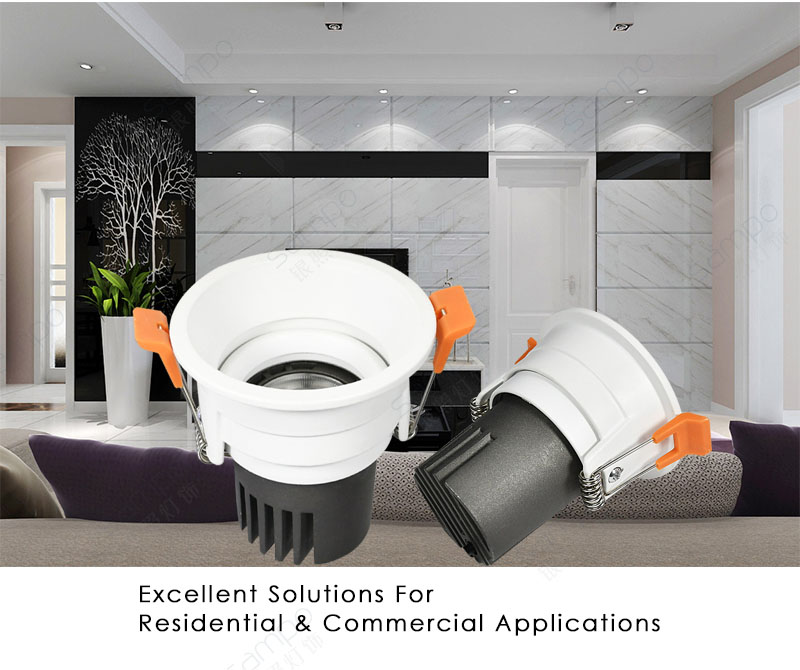

YZ8121 downlight comes with a piece of  LED downlight module that is compatible well with different GU10 downlight fittings, so it offers a wide range of applications and allow a simple and quick installation. The COB chips are optionally available from some famous brands. Durable die-casting aluminum alloy housing has perfect performance at thermal conductivity. Stoving varnish finished fitting looks stunning and elegant. With reliable and safe transformer to supply power, voltage range is available between AC75V~265V on requests.



The surface of the downlight module was finished with powder coating, and has white & black as standard colors, comes with stunning design.



Specifications

Motel No YZ8121
Power 7/8/9/10/12W
Voltage 75-265V
Lum. Efficiency 80 or 90 lm/w
Working Temp. -20~50°C
CCT. 3000-6000K
CRI Ra>80/90
LED Source COB
Housing Material Aluminum
Finishing Powder Coating
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 2 Years
Dimmable N
CCT Adjustable N

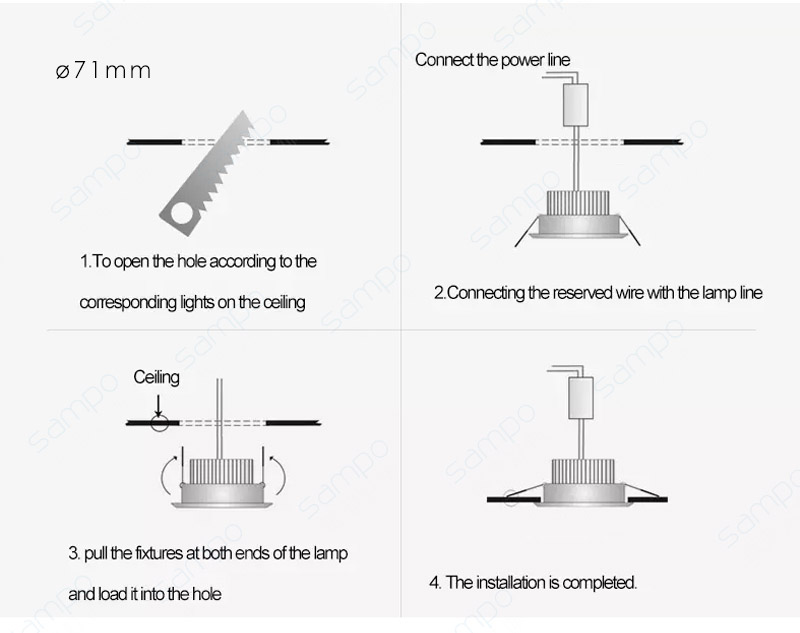

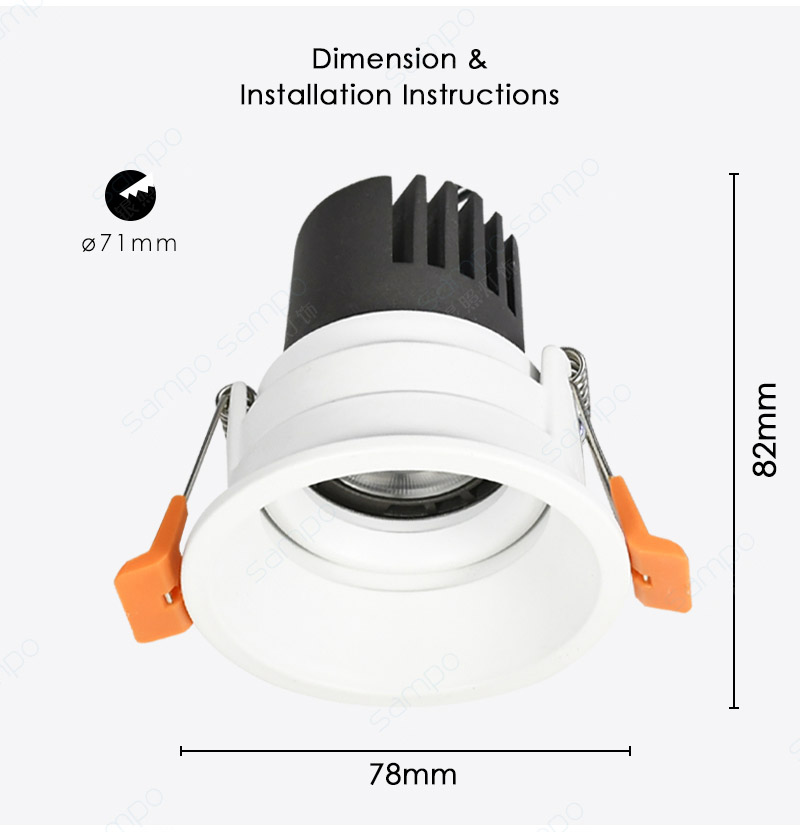

Size Of Cut-Off Φ71mm
Size Of Surface Φ78mm
Height 82mm

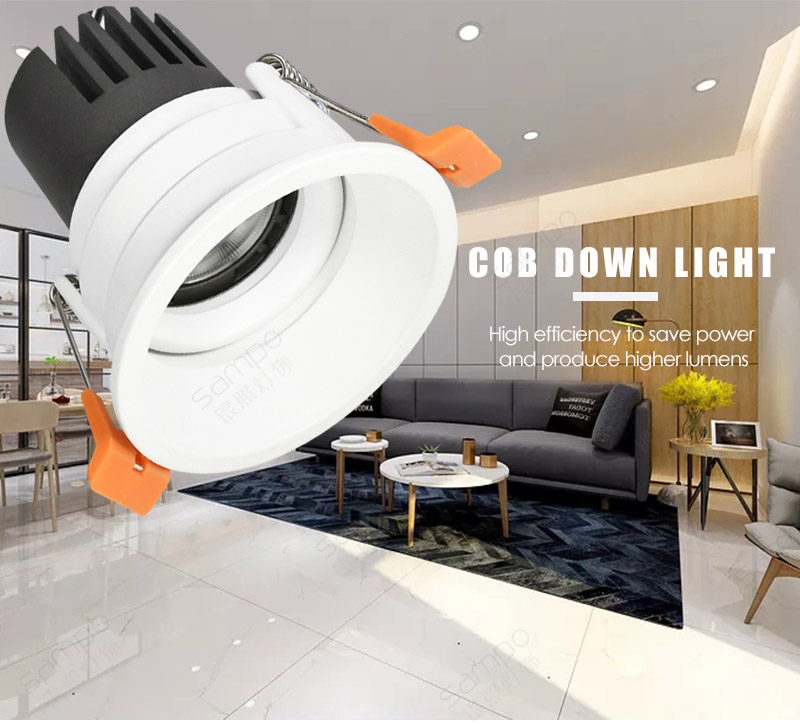

COB chips are optional to be sourced from CREE, Phillips and Epistar, Lens applied GR OPTICS technology

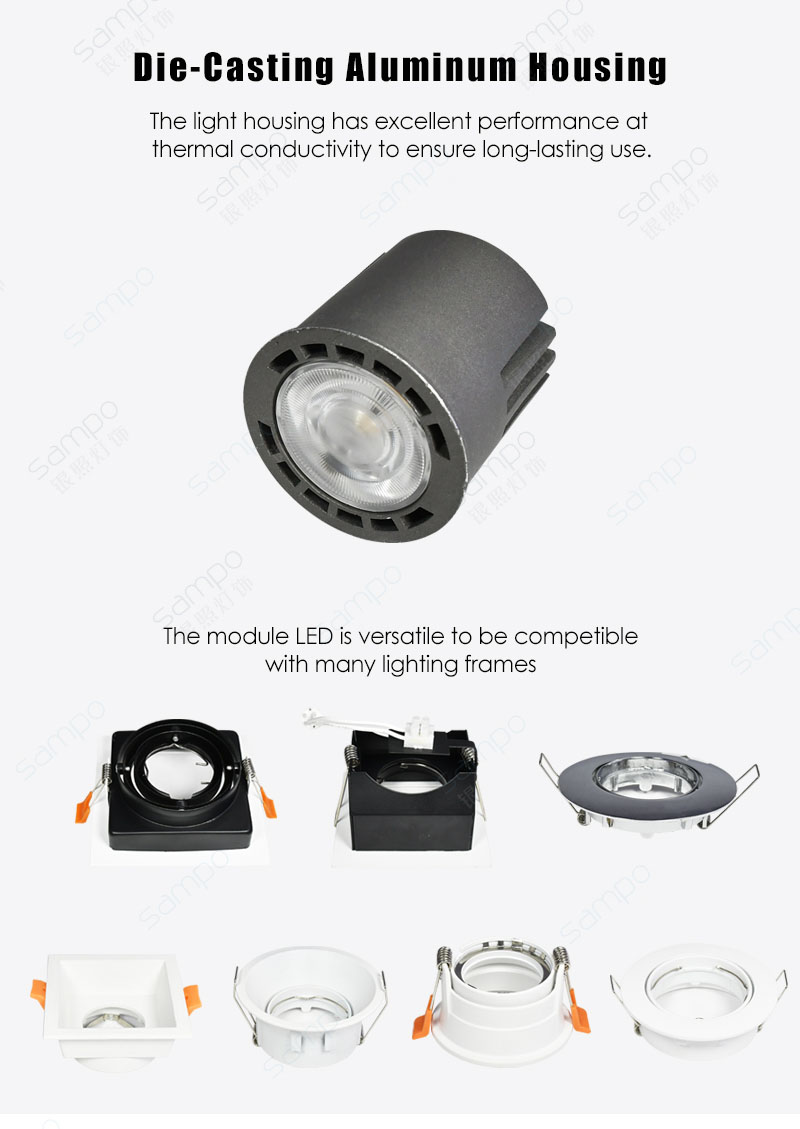

The LED bulb is module type, compatible with many aluminum housings and fittings.





The housing is made of premium die-cast aluminum-alloy, which is durable and has good performance at thermal conductivity.
