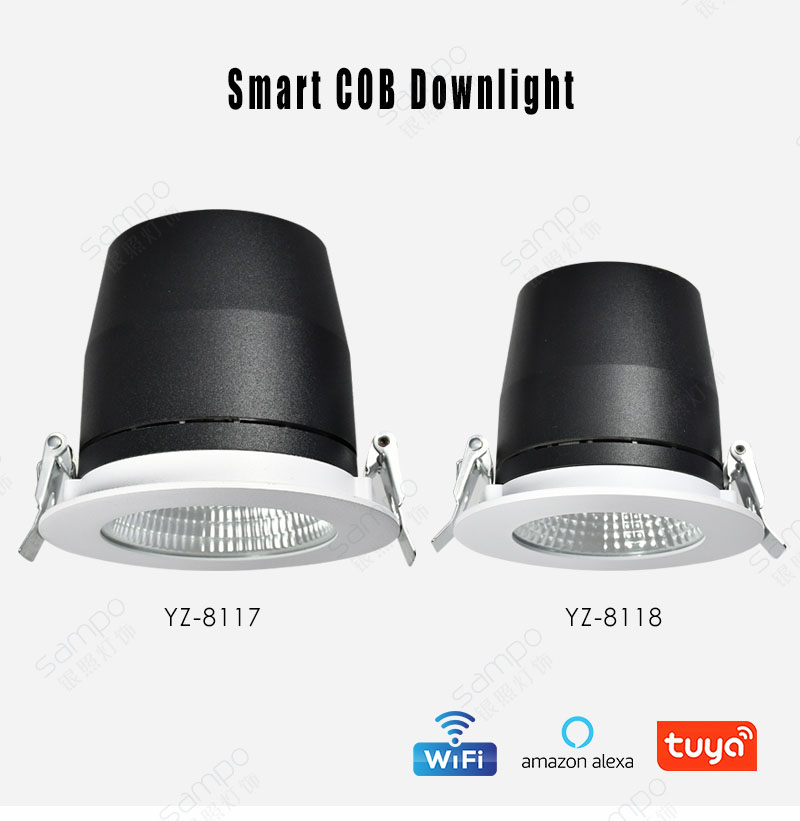

YZ8117 COB LED Downlight



YZ8117 COB LED Downlight

  • 20W / 30W recessed COB LED downlights.
  • Brightness and CCT are adjustable.
  • Compatible with wireless and wifi device for smart control.
  • Voltage AC85V~248V available on request
  • Black, white and gray colors are available.
  • Color temperature 2700K~6000K available on request
  • The housing is made of premium die-cast aluminum.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.
  • COB chips are optionsl from famous brands.
  • With spring clips to fix the fixture without tools.

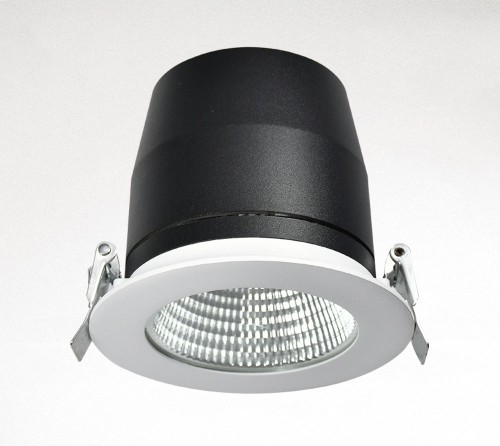

YZ8117 20W 30W Recessed COB LED Downlights



YZ8117 20W 30W COB LED downlights are perfect for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smart phone from anywhere at any time. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. The stoving varnish finish looks stunning and elegant. With a safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.



Specifications

Motel No YZ8117
Power 7W/12W
Voltage 85-265V
Lum. Efficiency 361/506 lm/w
Lum. Flux 100 lm
Working Temp. -20~50°C
CCT. 2700-6000K
CRI Ra>90
LED Source COB
Housing Material Aluminum
Finishing Stoving varnish
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 3 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ100mm
Size Of Surface Φ120mm
Height 105mm



The surface of the 20W 30W COB LED downlights housing was finished with stoving varnish and has white & black as standard colors, comes with stunning design.

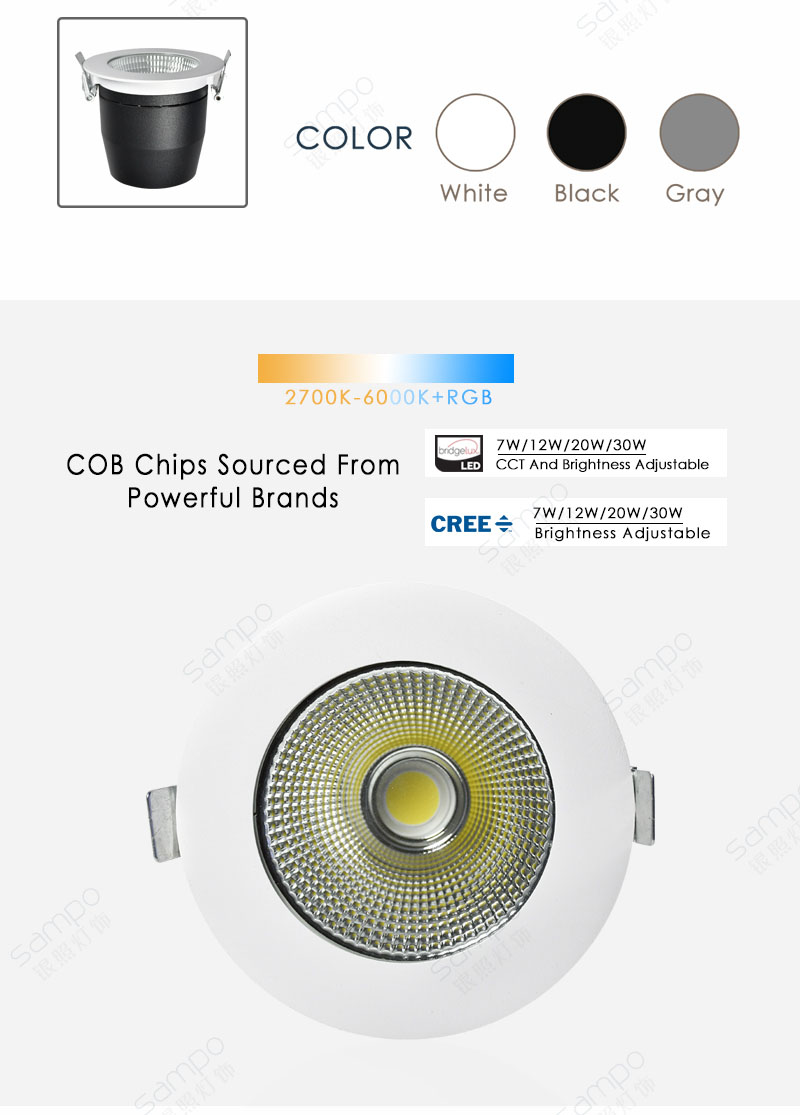

COB Chips | YZ8117 20W 30W Recessed COB LED Downlights

The COB chips of 20W 30W COB LED downlights are optional to be sourced from CREE, Bridgelux and Epistar, Lens applied GR OPTICS technology.

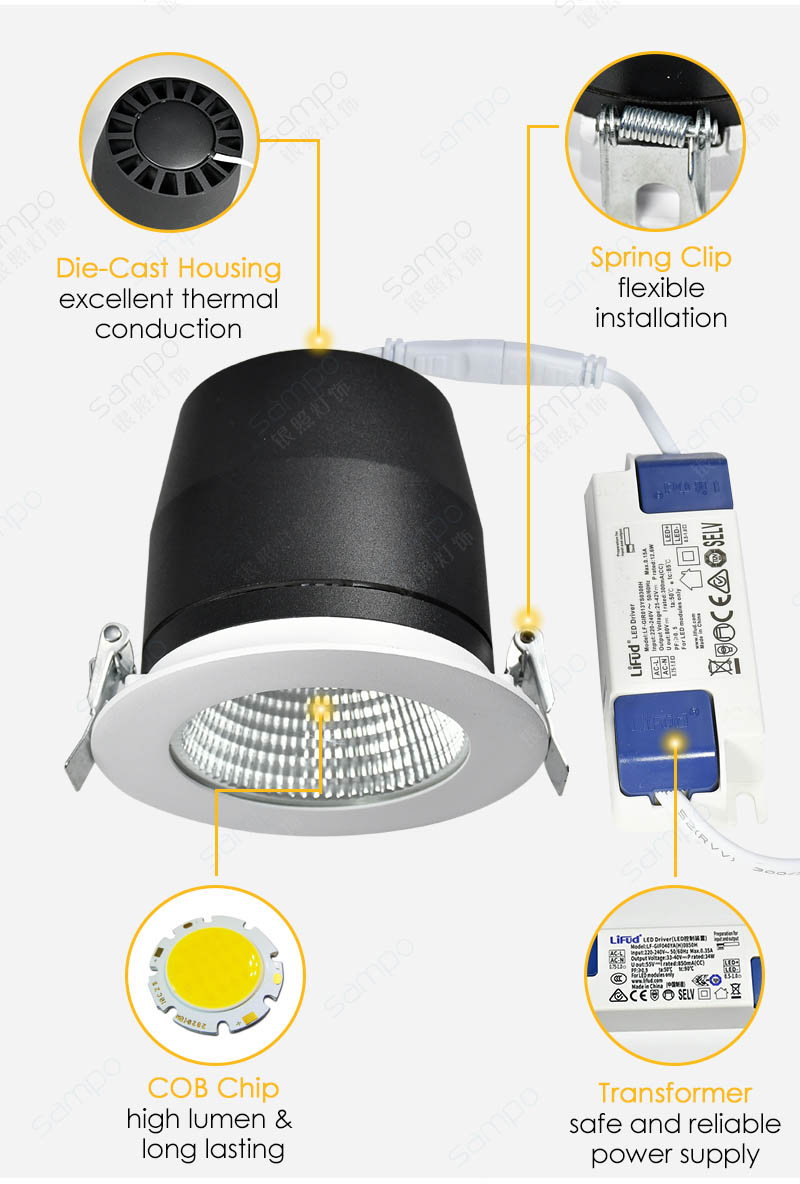

The housing of the 20W 30W COB LED downlights is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

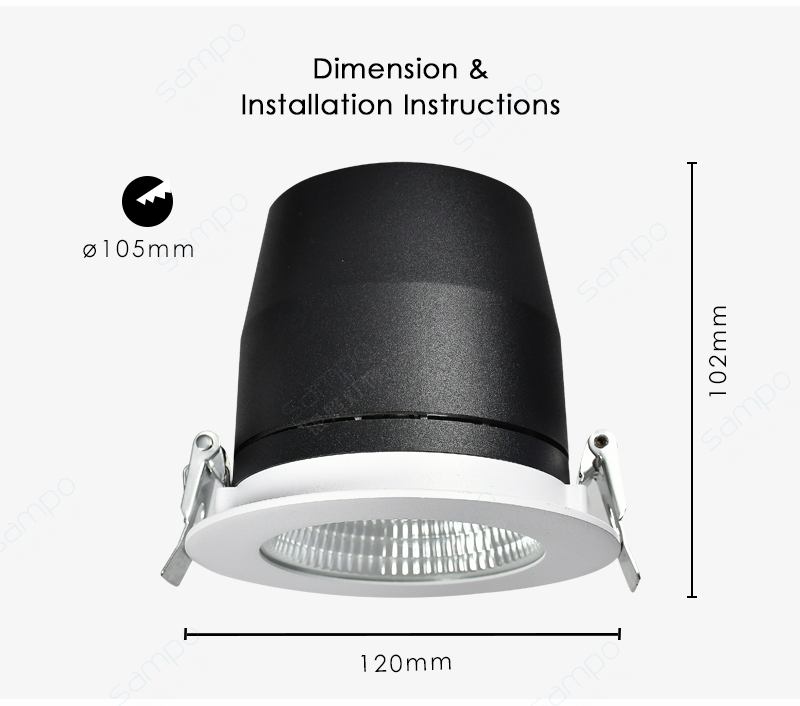

Dimentions | YZ8117 20W 30W Recessed COB LED Downlights

Installation Manual | YZ8117 20W 30W Recessed COB LED Downlights

Smart Control System | YZ8117 20W 30W Recessed COB LED Downlights

Compatible Systems | YZ8117 20W 30W Recessed COB LED Downlights

Applications | YZ8117 20W 30W Recessed COB LED Downlights

Applications | YZ8117 20W 30W Recessed COB LED Downlights
