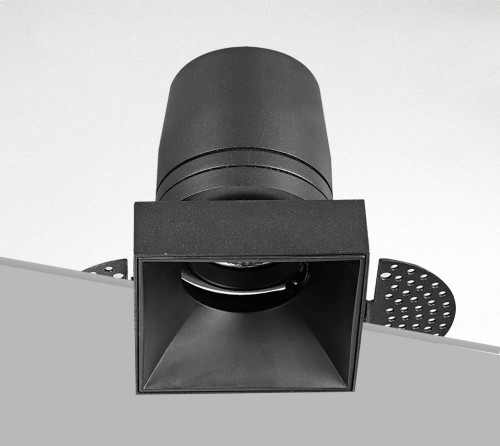

YZ8127 Trimless Downlight



YZ8127 Trimless Downlight

  • Trimless recessed LED downlights and spotlights.
  • Regular powers at 15W.
  • Black, white and gray colors are available.
  • Brightness and CCT are adjustable.
  • Compatible with wireless and wifi devices for smart control.
  • Voltage AC85V~248V available on request.
  • Color temperature 2700K~6000K available on request.
  • The housing is made of premium die-cast aluminum.
  • Excellent thermal conductivity for long-lasting use.
  • The powder coating finish offers a stunning appearance.
  • COB chips are optional from famous brands.
  • With spring clips to fix the fixture without tools.



YZ8127 trimless recessed LED downlights and spotlights are an excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smartphone from anywhere at any time. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. The stoving varnish finish looks stunning and elegant. With a safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.



YZ8127 15W Trimless Recessed LED Downlights And Spotlights

The surface of the trimless LED downlights was finished with stoving varnish and have white & black as standard colors, comes with stunning design.

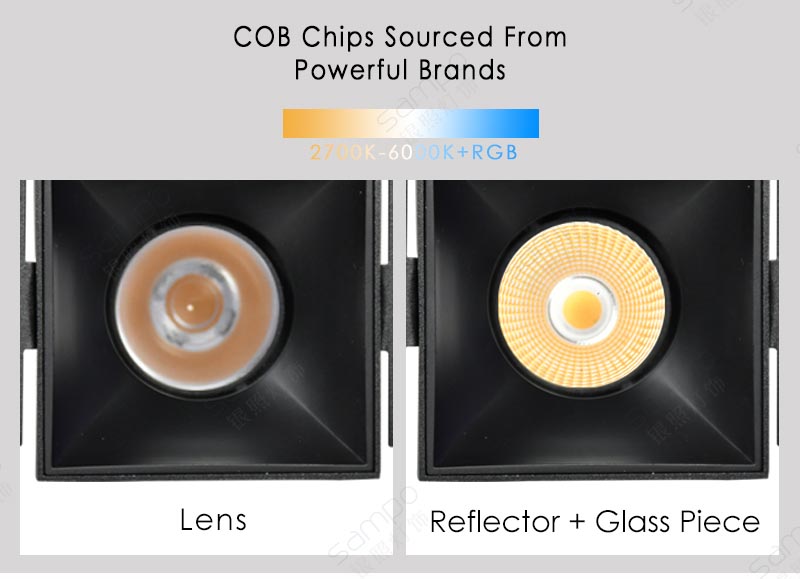

COB Chips | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

The COB chips are sourced from CREE, Bridgelux, and Epistar, Lens applied GR OPTICS technology.



Specifications

Motel No YZ8127
Power 15W
Voltage 85-265V
Lum. Efficiency 90lm/w
Working Temp. -20~50°C
CCT. 2700-6000K
CRI Ra>90
LED Source COB
Housing Material Aluminum
Finishing Stoving varnish
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 3 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ75mm
Size Of Surface Φ73mm
Height 102mm



Heat Sinks | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

The housing of the trimless LED spotlights is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity. The heat sink is changeable with 2 options.

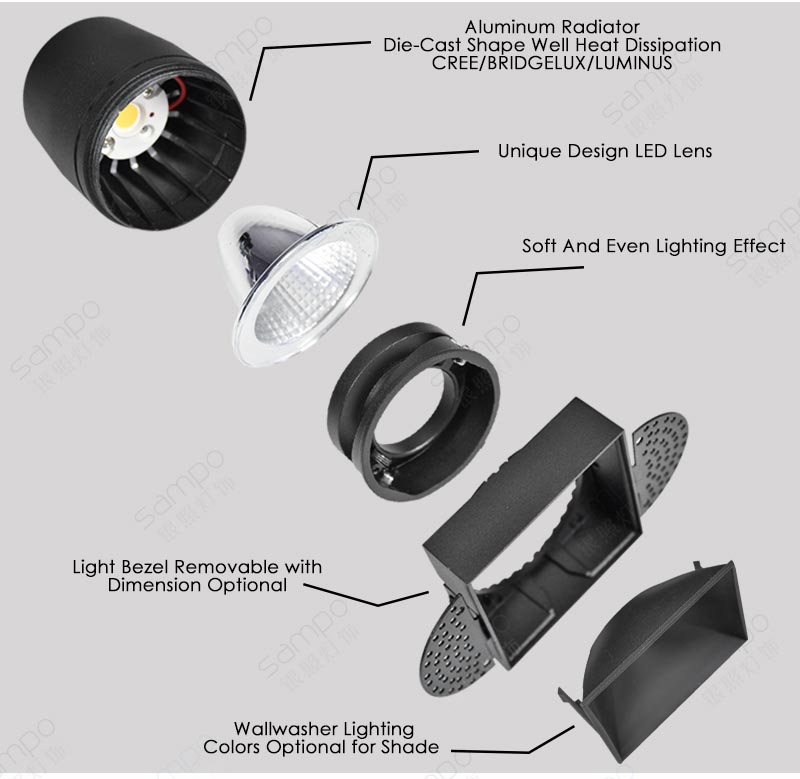

Structure | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

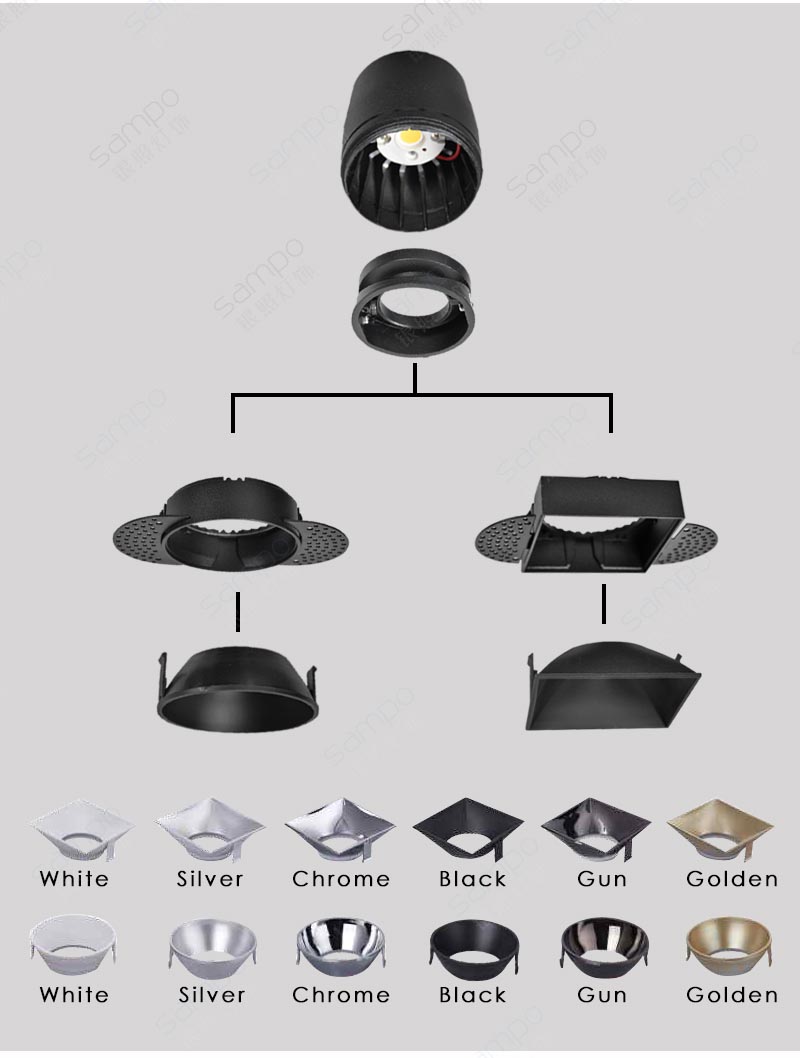

Changeable Ring | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

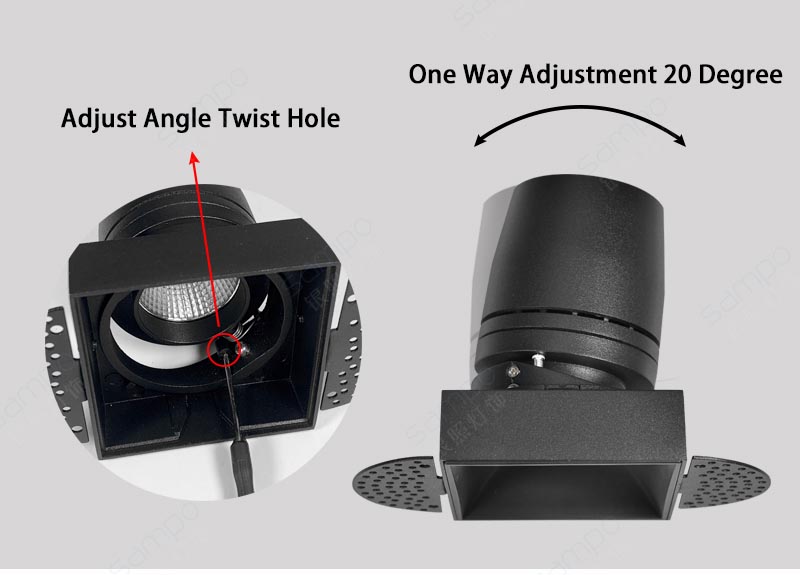

Adjustable Head | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

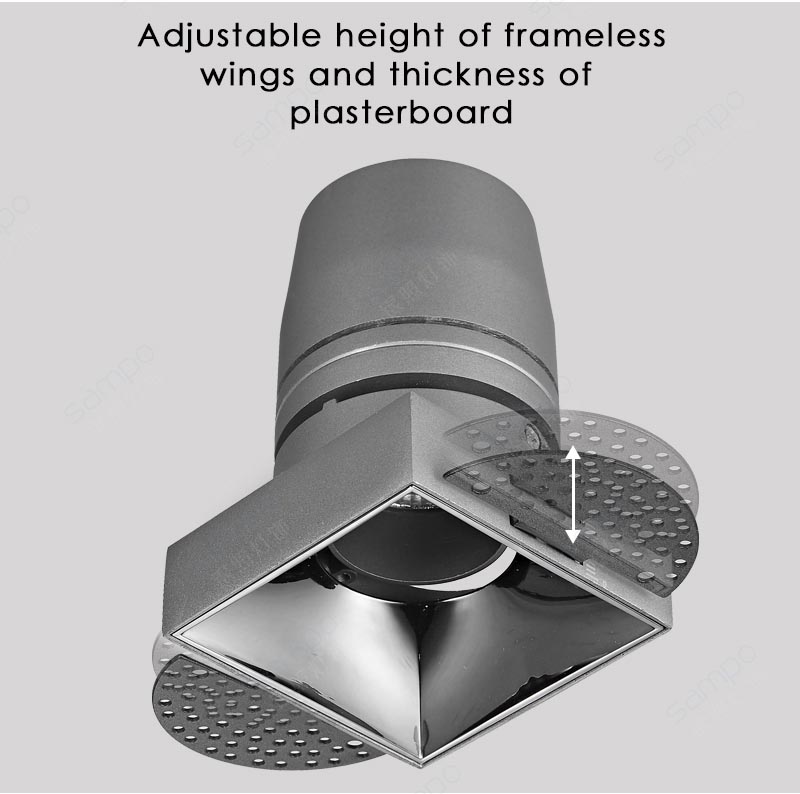

Adjustable Wings | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

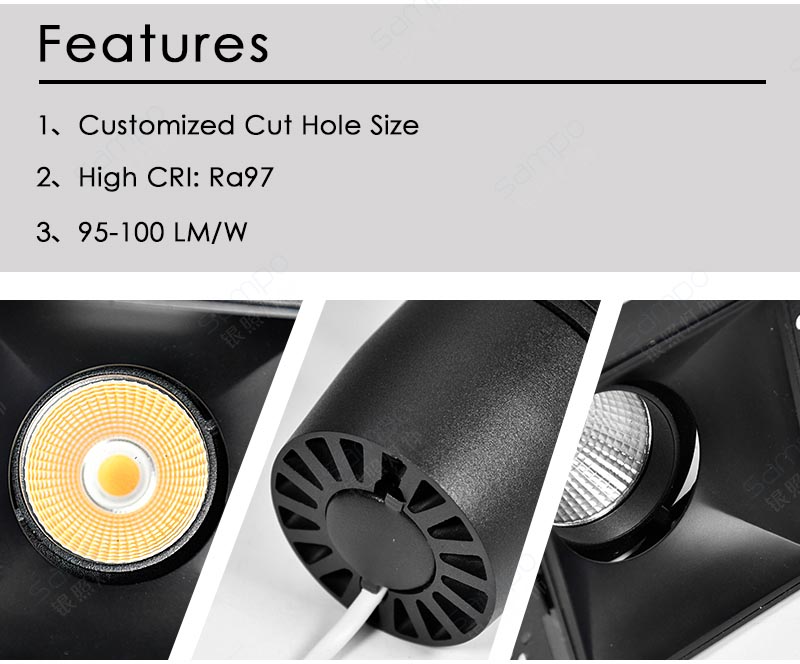

Features | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

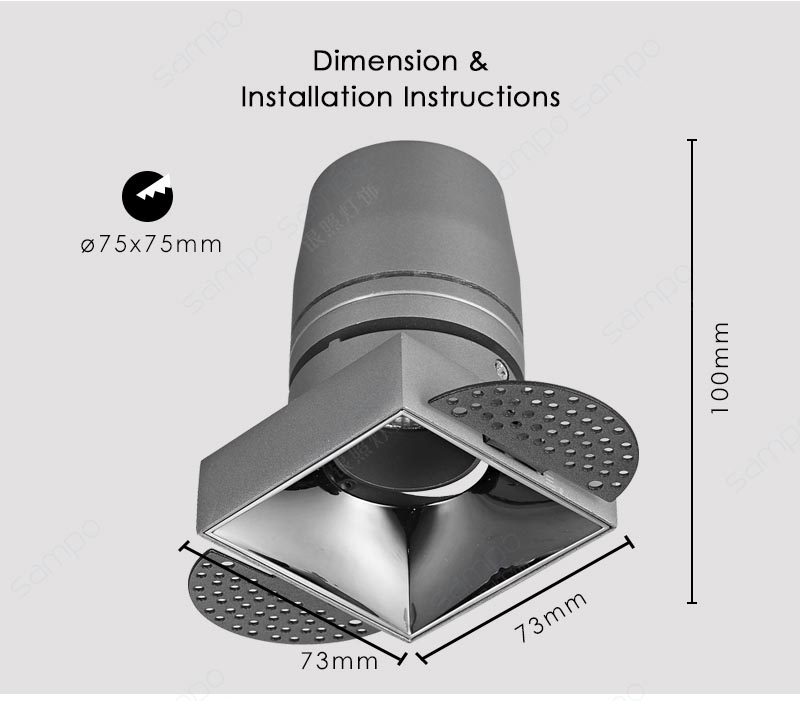

Dimension | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

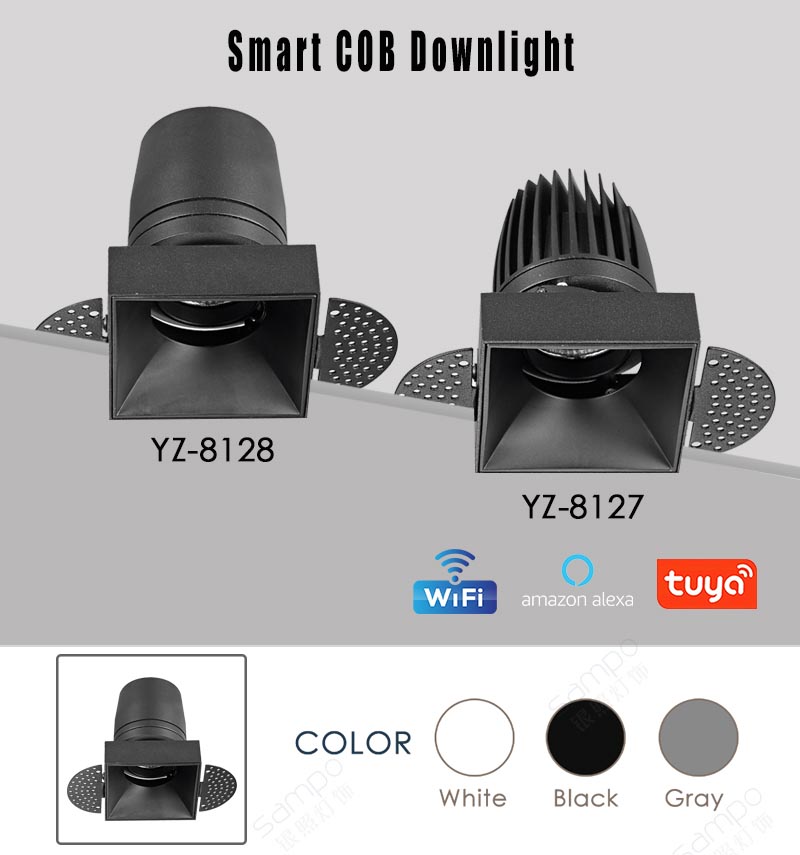

Smart Control System | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

Compatible Systems | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

Applications | YZ8127 15W Trimless Recessed LED Downlights And Spotlights

Applications | YZ8127 15W Trimless Recessed LED Downlights And Spotlights
