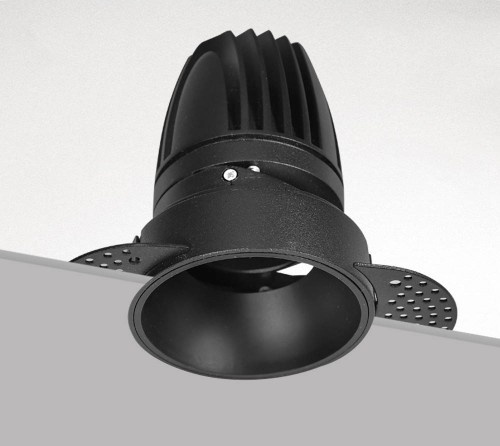

YZ8125 Trimless Downlight



YZ8125 Trimless Downlight

  • Trimless recessed adjustable LED downlights.
  • Regular powers at 15W.
  • Black, white and gray colors are available.
  • Brightness and CCT are adjustable.
  • Compatible with wireless and wifi devices for smart control.
  • Voltage AC85V~248V available on request.
  • Color temperature 2700K~6000K available on request.
  • The housing is made of premium die-cast aluminum.
  • Excellent thermal conductivity for long-lasting use.
  • The powder coating finish offers a stunning appearance.
  • COB chips are optional from famous brands.
  • With spring clips to fix the fixture without tools.



YZ8125 trimless recessed adjustable LED downlights are an excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smartphone from anywhere at any time. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. The stoving varnish finish looks stunning and elegant. With a safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.



YZ8125 15W Trimless Recessed Adjustable LED Downlights

The surface of the trimless recessed downlights was finished with stoving varnish and have white & black as standard colors, comes with stunning design.

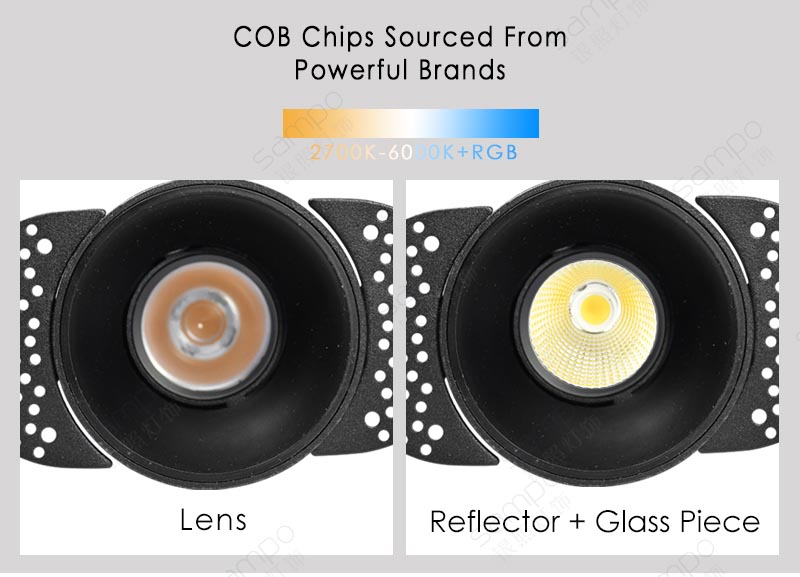

COB Chips | YZ8125 15W Trimless Recessed Adjustable LED Downlights

The COB chips are sourced from CREE, Bridgelux, and Epistar, Lens applied GR OPTICS technology.



Specifications

Motel No YZ8125
Power 15W
Voltage 85-265V
Lum. Efficiency 90lm/w
Working Temp. -20~50°C
CCT. 2700-6000K
CRI Ra>90
LED Source COB
Housing Material Aluminum
Finishing Stoving varnish
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 3 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ75mm
Size Of Surface Φ73mm
Height 102mm



Heat Sinks | YZ8125 15W Trimless Recessed Adjustable LED Downlights

The housing of the trimless downlights and fittings is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity. The heat sink is changeable with 2 options.

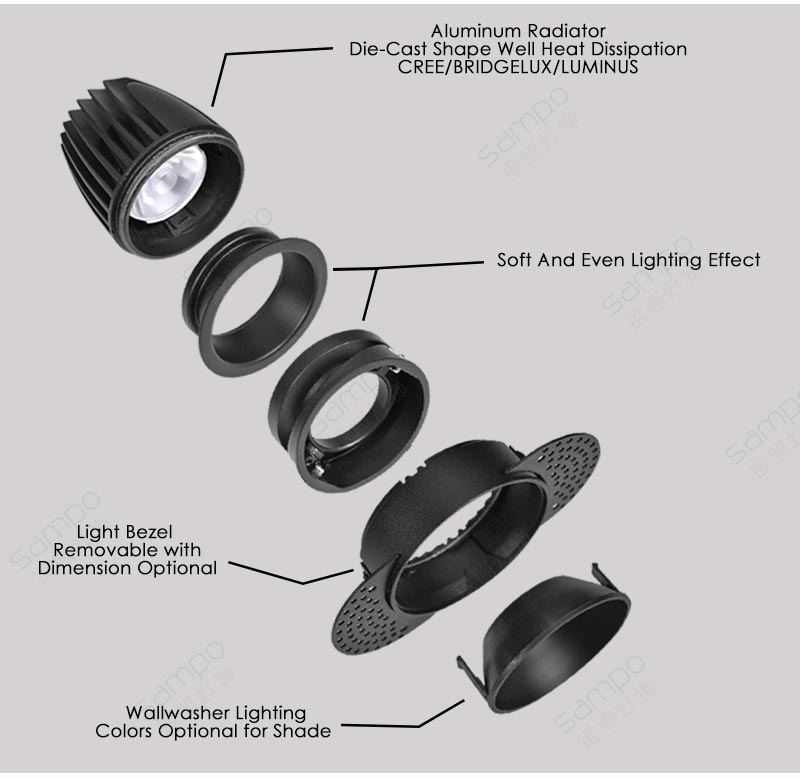

Structure | YZ8125 15W Trimless Recessed Adjustable LED Downlights

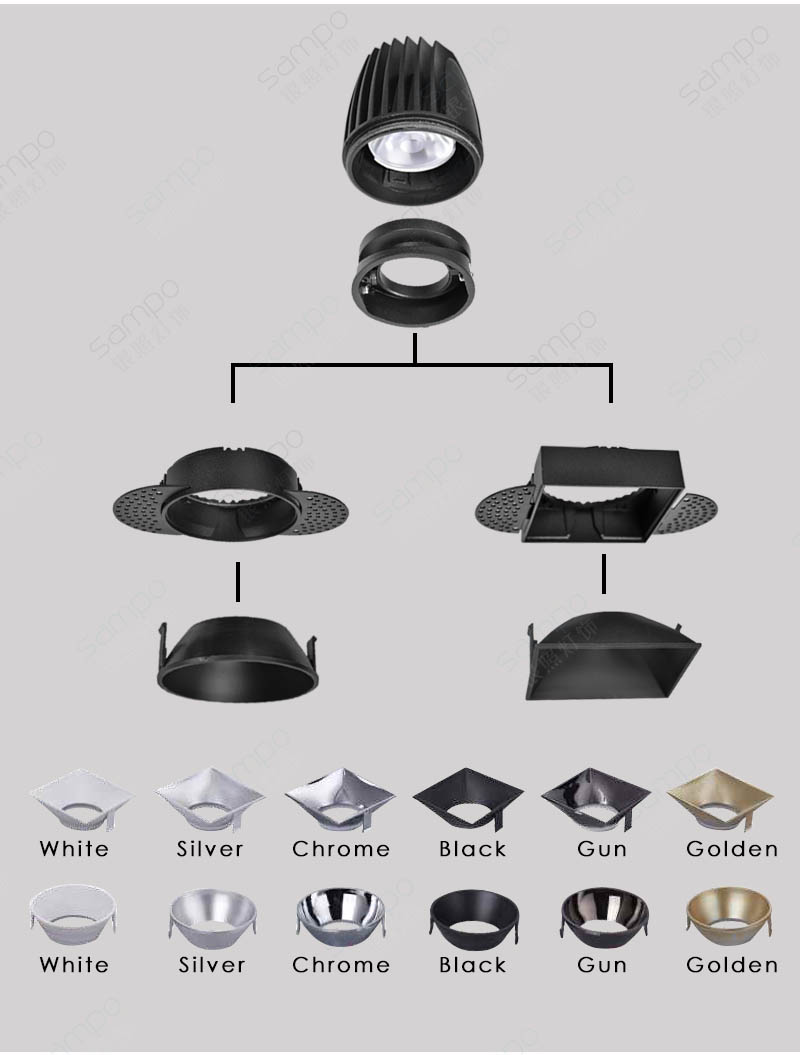

Changeable Ring | YZ8125 15W Trimless Recessed Adjustable LED Downlights

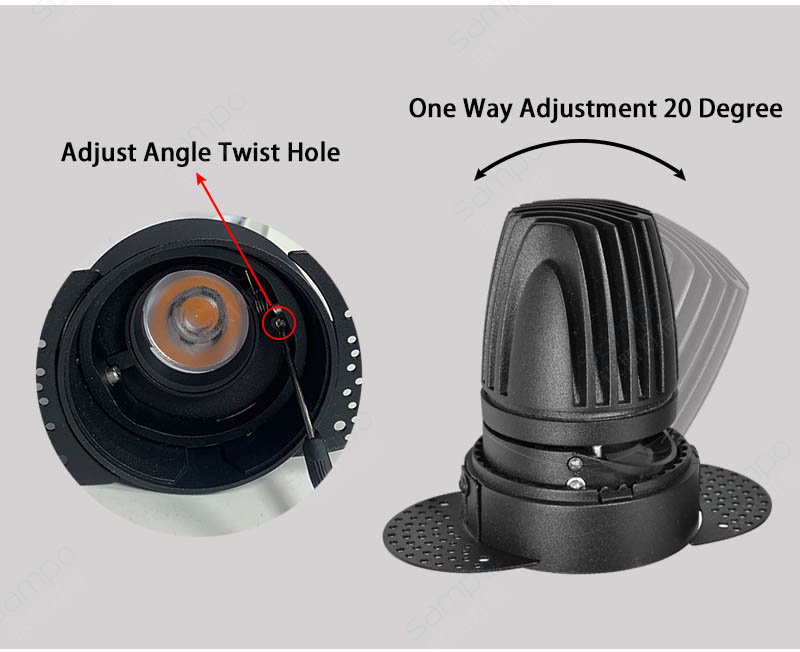

Adjustable Head | YZ8125 15W Trimless Recessed Adjustable LED Downlights

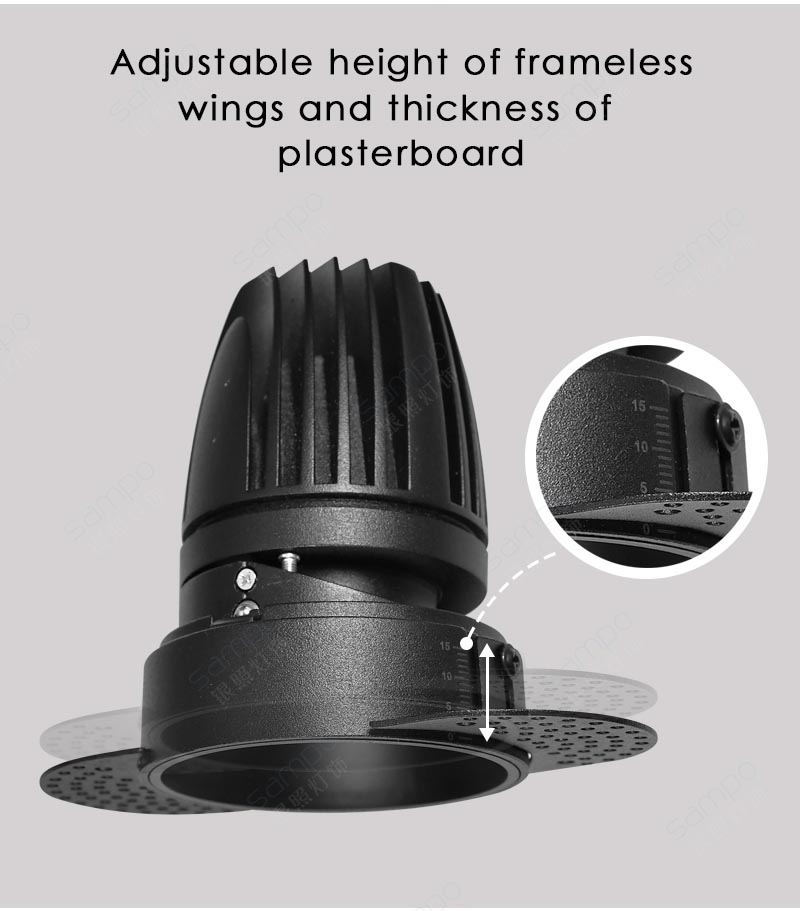

Adjustable Wings | YZ8125 15W Trimless Recessed Adjustable LED Downlights

Features | YZ8125 15W Trimless Recessed Adjustable LED Downlights

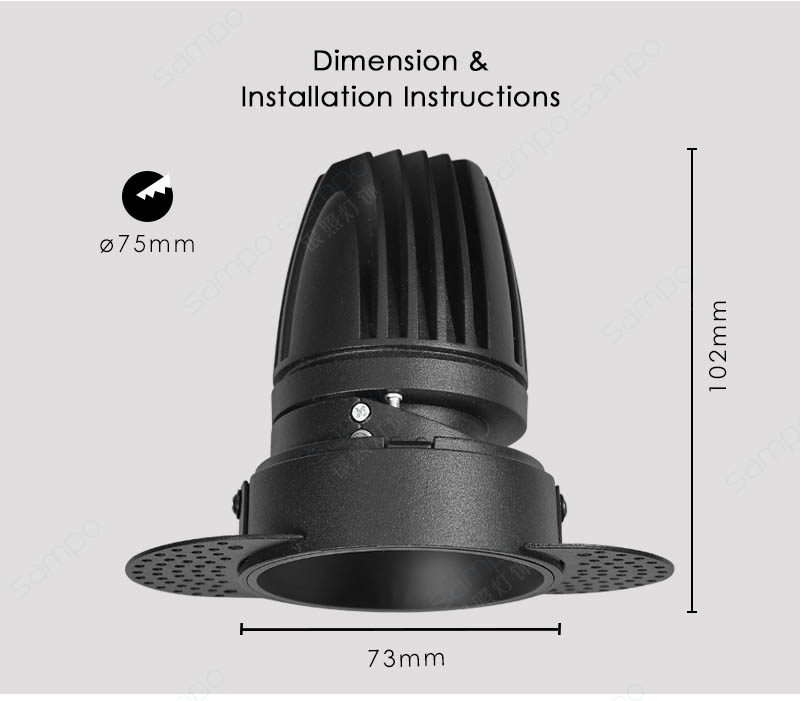

Dimension | YZ8125 15W Trimless Recessed Adjustable LED Downlights

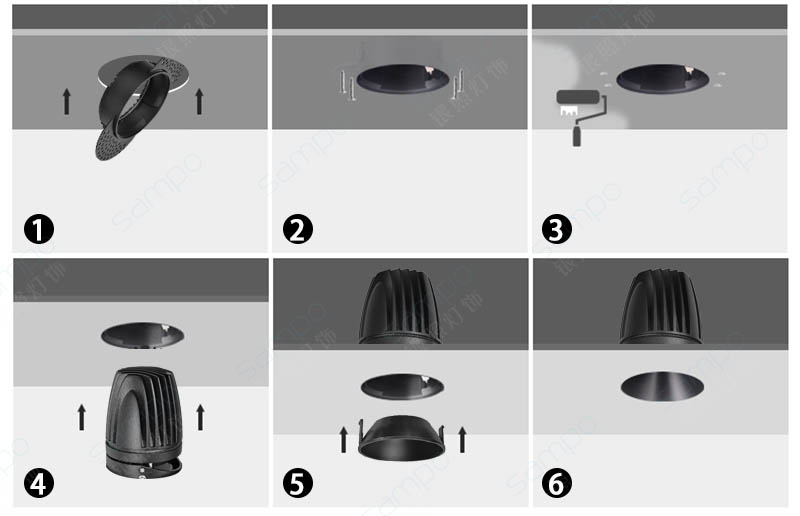

Installation Manual | YZ8125 15W Trimless Recessed Adjustable LED Downlights

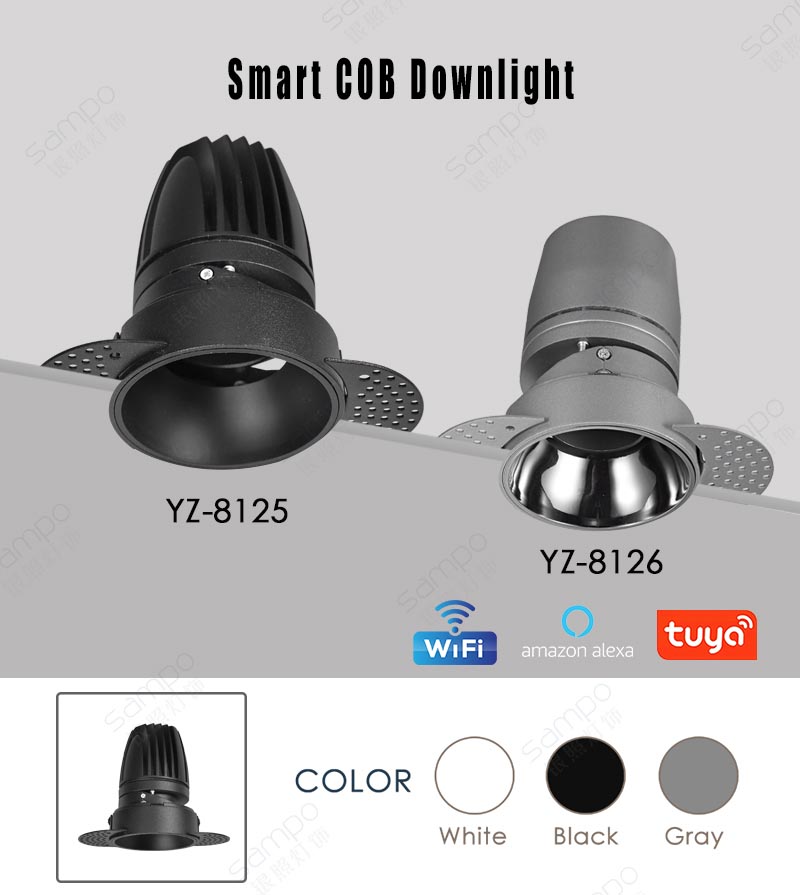

Smart Control System | YZ8125 15W Trimless Recessed Adjustable LED Downlights

Compatible Systems | YZ8125 15W Trimless Recessed Adjustable LED Downlights

Applications | YZ8125 15W Trimless Recessed Adjustable LED Downlights

Applications | YZ8125 15W Trimless Recessed Adjustable LED Downlights
