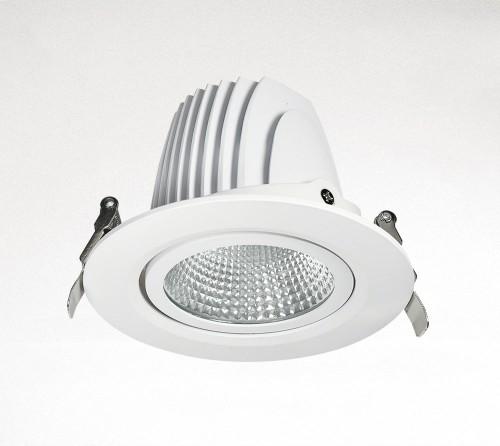

YZ8114 COB LED Downlight



YZ8114 COB LED Downlight

  • Recessed adjustable COB downlights.
  • Brightness and CCT are adjustable.
  • Regular powers: 7W/12W.
  • Compatible with wireless and wifi device for smart control.
  • Voltage AC85V~248V available on request
  • Black, white and gray colors are available.
  • Color temperature 2700K~6000K available on request
  • The housing is made of premium die-cast aluminum.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.
  • COB chips are optionsl from famous brands.
  • With spring clips to fix the fixture without tools.



YZ8114 Recessed Adjustable COB Downlights



YZ8114 recessed adjustable COB downlights are an excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smart phone from anywhere at any time. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. The stoving varnish finish looks stunning and elegant. With a safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.



Specifications

Motel No YZ8114
Power 7W/12W
Voltage 85-265V
Lum. Efficiency 80 or 90 lm/w
Working Temp. -20~50°C
CCT. 2700-6000K
CRI Ra>80 or 90
LED Source COB
Housing Material Aluminum
Finishing Powder Coating
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 3 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ115mm
Size Of Surface Φ130mm
Height 95mm

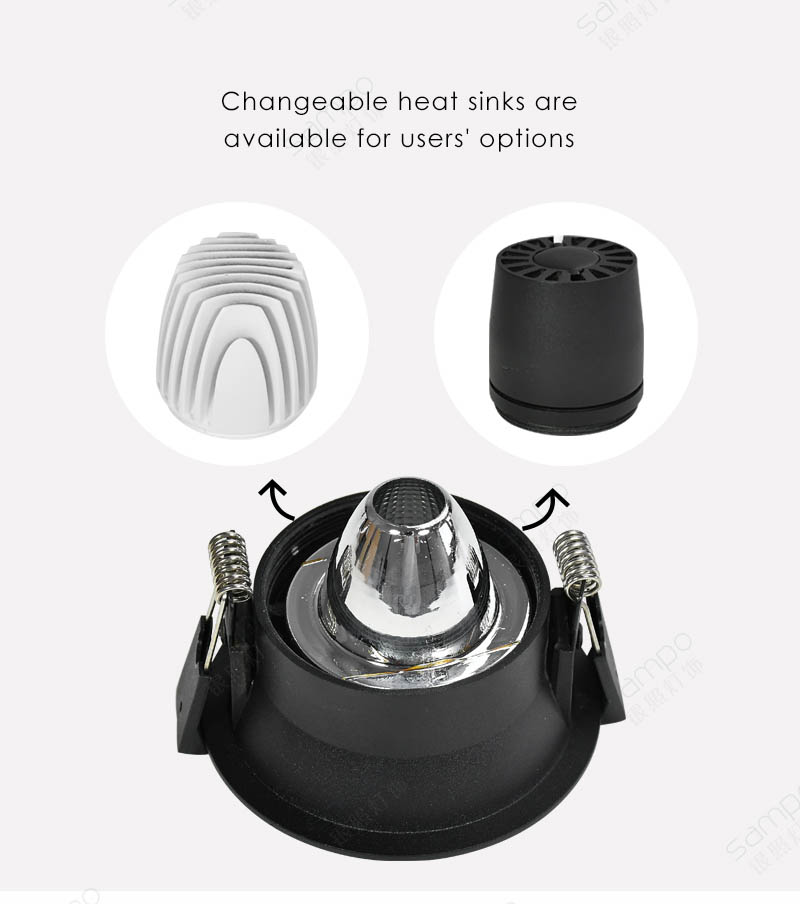

Heat Sink | YZ8114 Recessed Adjustable COB Downlights

The surface of the recessed downlight was finished with stoving varnish, and has white & black as standard colors, comes with stunning design.

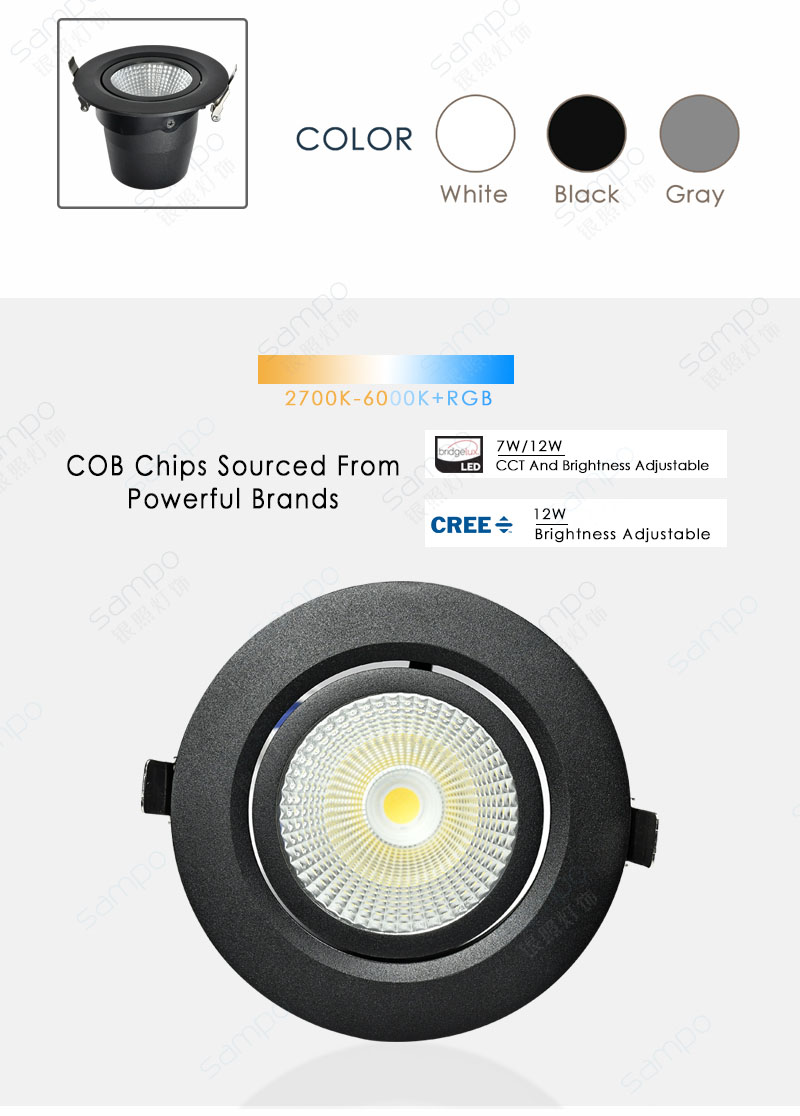

COB Chips | YZ8114 Recessed Adjustable COB Downlights

COB chips are optional to be sourced from CREE, Bridgelux and Epistar, Lens applied GR OPTICS technology.

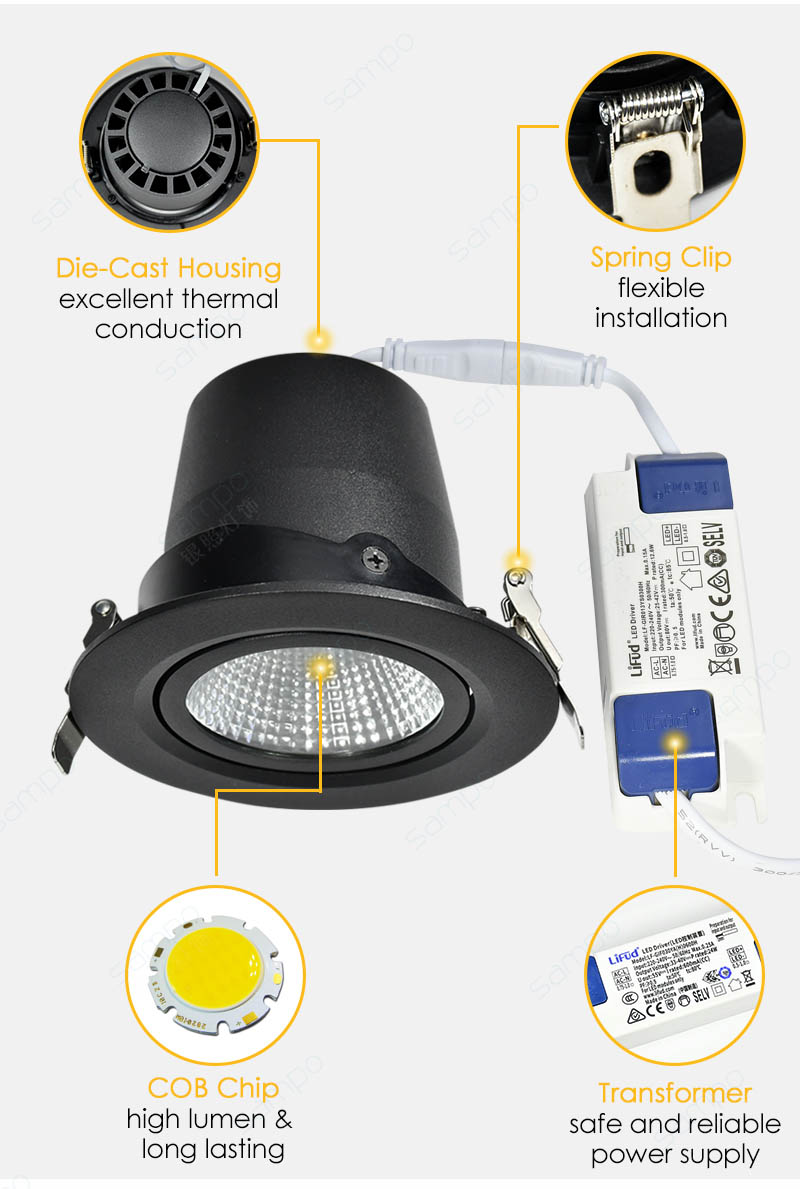

Features | YZ8114 Recessed Adjustable COB Downlights

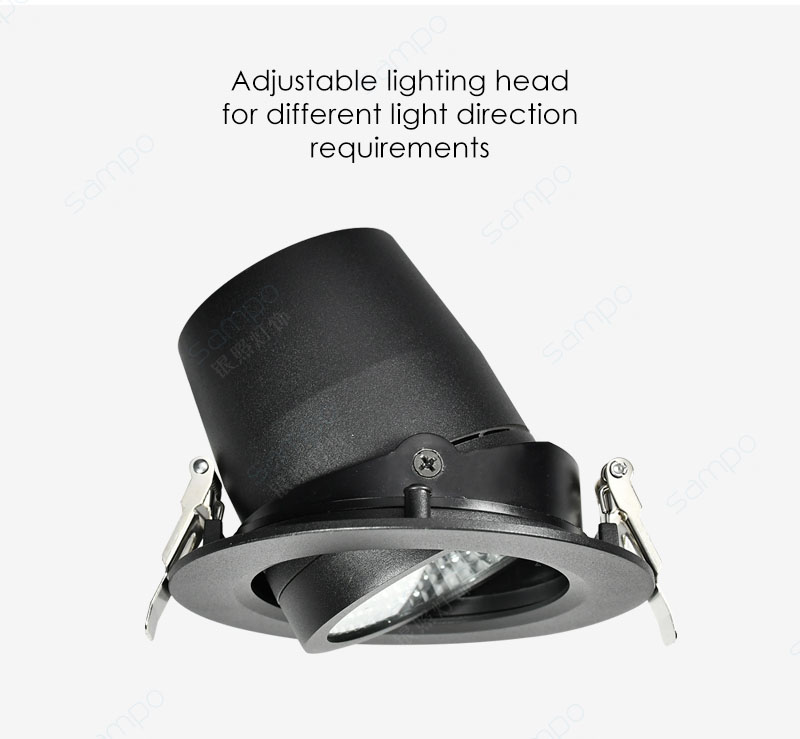

Tilt Light Head | YZ8114 Recessed Adjustable COB Downlights

The housing of the COB downlight is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

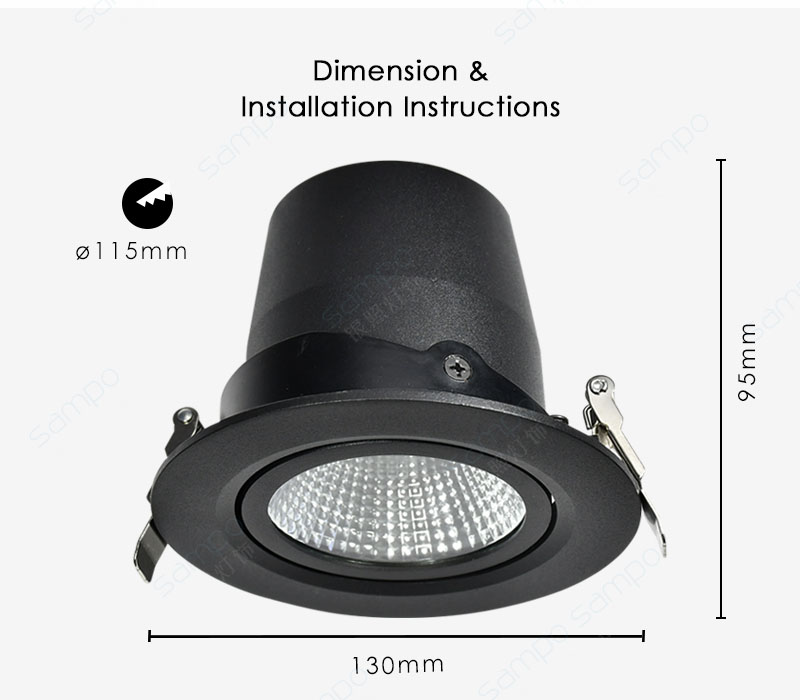

Dimension | YZ8114 Recessed Adjustable COB Downlights

Installation Manual | YZ8114 Recessed Adjustable COB Downlights

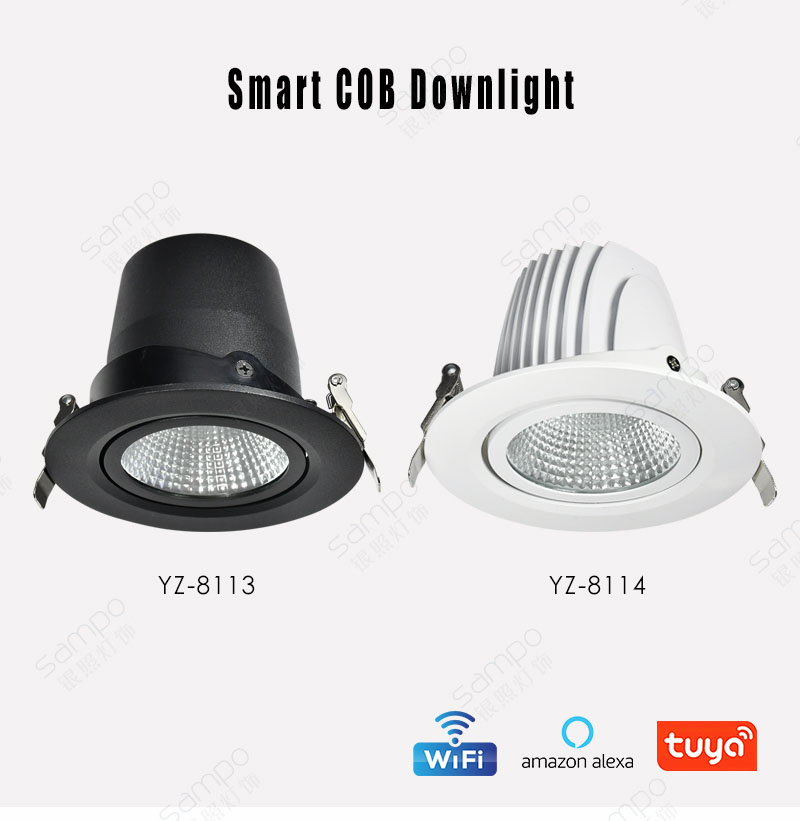

Smart Control System | YZ8114 Recessed Adjustable COB Downlights

Compatible Systems | YZ8114 Recessed Adjustable COB Downlights

Smart Feature | YZ8114 Recessed Adjustable COB Downlights

Smart Features | YZ8114 Recessed Adjustable COB Downlights
