Integrated LED Downlights

Integrated LED Downlights

Integrated LED Downlights

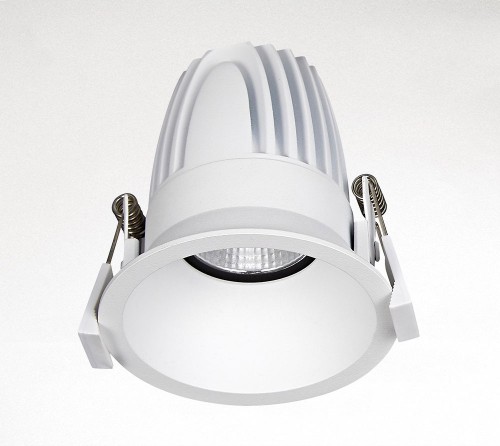

YZ8107 COB LED Downlight



YZ8107 COB LED Downlight

  • Recessed round LED downlights and fittings.
  • Brightness and color changing available.
  • Regular powers: 7W/12W.
  • Compatible with wireless and wifi device for smart control.
  • Voltage AC85V~248V available on request
  • Black, white and gray colors are available.
  • Color temperature 2700K~6000K available on request
  • The housing is made of premium die-cast aluminum.
  • Excellent thermal conductivity for long-lasting use.
  • Powder coating finish offers stunning appearance.
  • COB chips are optionsl from famous brands.
  • With spring clips to fix the fixture without tools.



YZ8107 Color Changing Recessed Round LED Downlights And Fittings



YZ8107 recessed downlights and fittings are a perfect solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smart phone from anywhere at anytime. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. Stoving varnish finish looks stunning and elegant. With safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.



Heat Sinks | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

The housing of the round led downlight is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.The heat sink is changeable and has 2 options



Specifications

Motel No YZ8107
Power 7W/12W
Voltage 85-265V
Lum. Efficiency 361/506 lm/w
Lum. Flux 100 lm
Working Temp. -20~50°C
CCT. 2700-6000K
CRI Ra>90
LED Source COB
Housing Material Aluminum
Finishing Powder Coating
Color White/Black/Gray
Lifespan 30000 hrs
Warranty 3 Years
Dimmable Y
CCT Adjustable Y
Size Of Cut-Off Φ75mm
Size Of Surface Φ85mm
Height 92mm



COB Chips | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

The COB chips are optional to be sourced from some famous brands, such as CREE, Bridgelux and Epistar, Bridgelux is the perfect options for color changing downlights. Lens applied GR OPTICS technology.



Lens Or Class Piece | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

The surface of the round downlight was finished with stoving varnish and has white & black as standard colors, comes with stunning design.


Features | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

Dimension | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

Installation Manual | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

Smart Control System | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

Compatible Systems | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

Applications | YZ8107 Color Changing Recessed Round LED Downlights And Fittings

Applications | YZ8107 Color Changing Recessed Round LED Downlights And Fittings
