220V Magnetic Grille Light vs 48V Low Voltage Magnetic Linear Light: Safety, Installation & Cost Differences

If you’re an interior designer, lighting wholesaler, home renovation contractor or retail shop owner choosing magnetic track lighting, you must be confused between 220V direct-input magnetic grille light and traditional 48V low-voltage magnetic linear light. These two mainstream magnetic lighting systems have huge gaps in safety, construction cost, wiring work, project cycle and applicable scenes. This complete comparison guide breaks down all core differences, and introduces our high-performance 220V anti-glare magnetic grille light as a cost-effective solution for modern no-main-light decoration.

1. Core Difference: Power Supply Mode & Transformer Demand

48V Low Voltage Magnetic Track Light

Traditional 48V magnetic rail requires an independent 48V constant voltage transformer for every circuit. The transformer takes up ceiling space, needs reserved wiring boxes, and increases material & labor costs. For large projects with multi-group magnetic tracks, multiple transformers are required, leading to complicated wiring and hidden wiring chaos risks.

220V Direct Input Magnetic Grille Light

Our 220V magnetic grille light supports direct AC220V mains power input, no extra transformer needed. The track directly connects household commercial mains, greatly simplifying circuit design, saving transformer purchasing cost and reserved ceiling space, especially suitable for large-area shops, villas and old house renovation without complicated electrical transformation.

2. Safety Performance Comparison: 220V VS 48V Magnetic Light

• 48V Low Voltage Model Safety Advantage: Extra low voltage under human body safe voltage, track surface can be touched safely without electric shock risk, more friendly for families with kids and elderly.
• 220V Magnetic Grille Light Safety Guarantee: Although it uses 220V mains, our product adopts dual anti-drop safety buckle isolation design, fully insulated internal conductive terminals, sealed lamp body structure to prevent accidental electric leakage. The lamp heads are locked by double side red safety latches, which cannot fall off even under strong collision, eliminating hidden danger of electric shock caused by lamp falling.

3. Installation Cost & Construction Period Contrast

48V Low Voltage Magnetic Track

1. Extra cost: 48V transformer, special low-voltage wiring cables, independent wire storage boxes
2. Construction work: Electricians need to separate strong & weak current wiring, reserve transformer installation slots in advance, longer construction cycle
3. Old house renovation limitation: Most old apartments cannot reserve transformer slots, so reconstruction cost surges sharply

220V Direct Input Magnetic Grille Light

1. Zero extra accessories cost: No transformer, no special low-voltage wire, directly connect original household 220V circuit
2. Simple construction: Only need to reserve single group mains wire for track, electrician construction time is cut by half
3. Perfect for old renovation: No deep ceiling slot required, surface mounted track can be installed without destroying original ceiling structure, greatly reduce renovation budget

4. Highlights Of Our 220V Anti-Glare Magnetic Grille Light

4.1 Premium OSRAM LED Chip, High Color Rendering & Anti-Glare Effect

This 220V magnetic grille lamp adopts original OSRAM light chip, with uniform light output, no flicker and no color spots. Built-in deep anti-glare cup filters harsh light, effectively protect eyes from glare fatigue, Ra high color rendering restores real texture of clothing, artworks and home furniture.

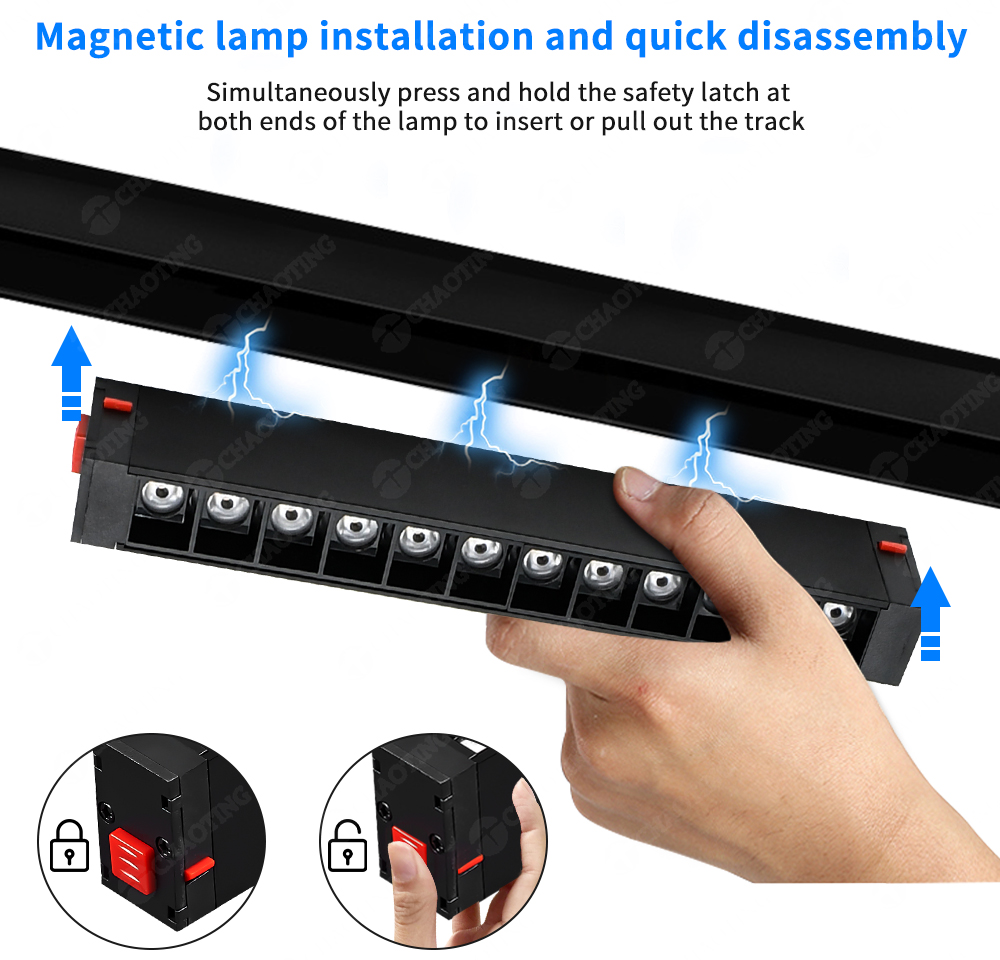

4.2 Dual Side Safety Buckle, Quick Install & Disassemble

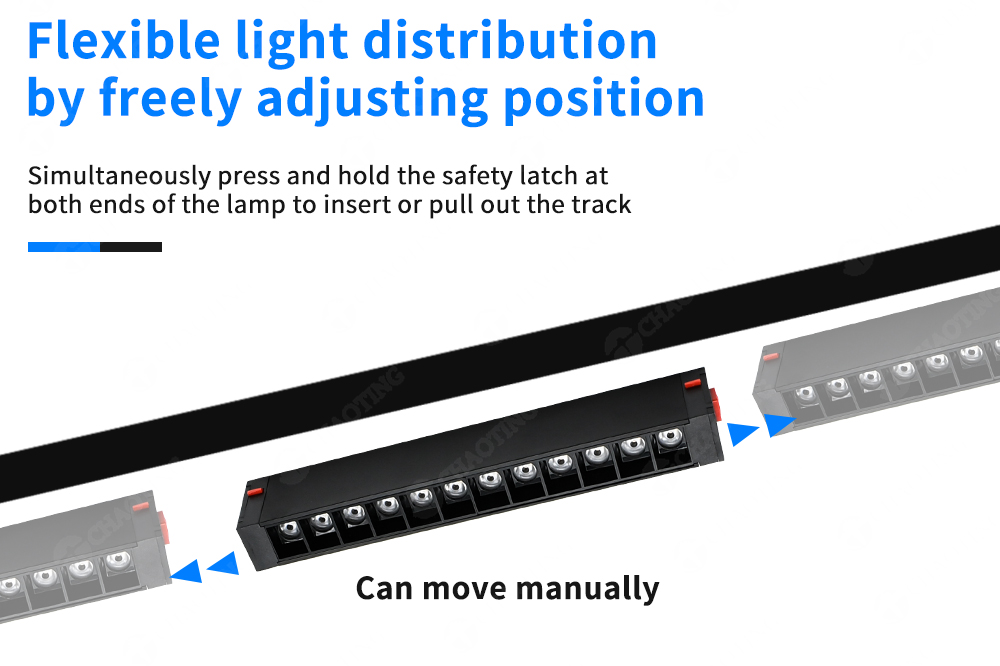

Red safety latches are set on both ends of the lamp body. Press the two buckles at the same time to snap or take down the lamp head from the track within 2 seconds. Strong built-in magnet adsorbs tightly with the track, double buckle lock avoids accidental falling during long-term use, convenient for later maintenance and layout adjustment.

4.3 Frosted Integral Aluminum Lamp Body, Fast Heat Dissipation

The whole lamp housing is made of integrated frosted aluminum alloy, high hardness, anti-rust and anti-corrosion. The hollow grille structure forms air convection heat dissipation channel, quickly export heat generated by OSRAM chips, reduce light decay and extend the service life of the lamp to over 50,000 hours.

4.4 2700K-6500K Adjustable CCT, 3 Common Light Modes Optional

Support full spectrum dimmable color temperature from warm 2700K to cool white 6500K, preset three mainstream light modes: 3000K warm light for cozy living room, 4000K neutral light for clothing shop display, 6000K cool white light for gallery and office accent lighting.

4.5 Multiple Power & Beam Angle Options For Different Scenes

Two mainstream power specifications: 9W (L220*W25*H41MM) and 18W (L410*W25*H41MM). Optional beam angles of 15°/24°/36°, narrow beam for artwork accent lighting, wide beam for overall space ambient lighting. Black & white lamp body housing can match all minimalist interior styles.

5. Which One Should You Choose? 220V or 48V Magnetic Track Light?

Choose 48V Low Voltage Magnetic Light If:

• New house full ceiling decoration, enough budget to reserve transformer slots
• Family with infants and young children, ultra-low voltage safety is the top priority
• Small single circuit lighting layout, only 2-3 lamp heads in one space

Choose Our 220V Magnetic Grille Light If:

1. Large commercial projects: clothing boutique, cosmetic shop, gallery, office showroom with multi-group long tracks
2. Old apartment renovation without reserved transformer slots, refuse to destroy original ceiling
3. Lighting contractors & wholesalers want to cut overall project material and labor cost
4. Villa, loft high ceiling decoration, need simple mains wiring without complicated weak current transformation

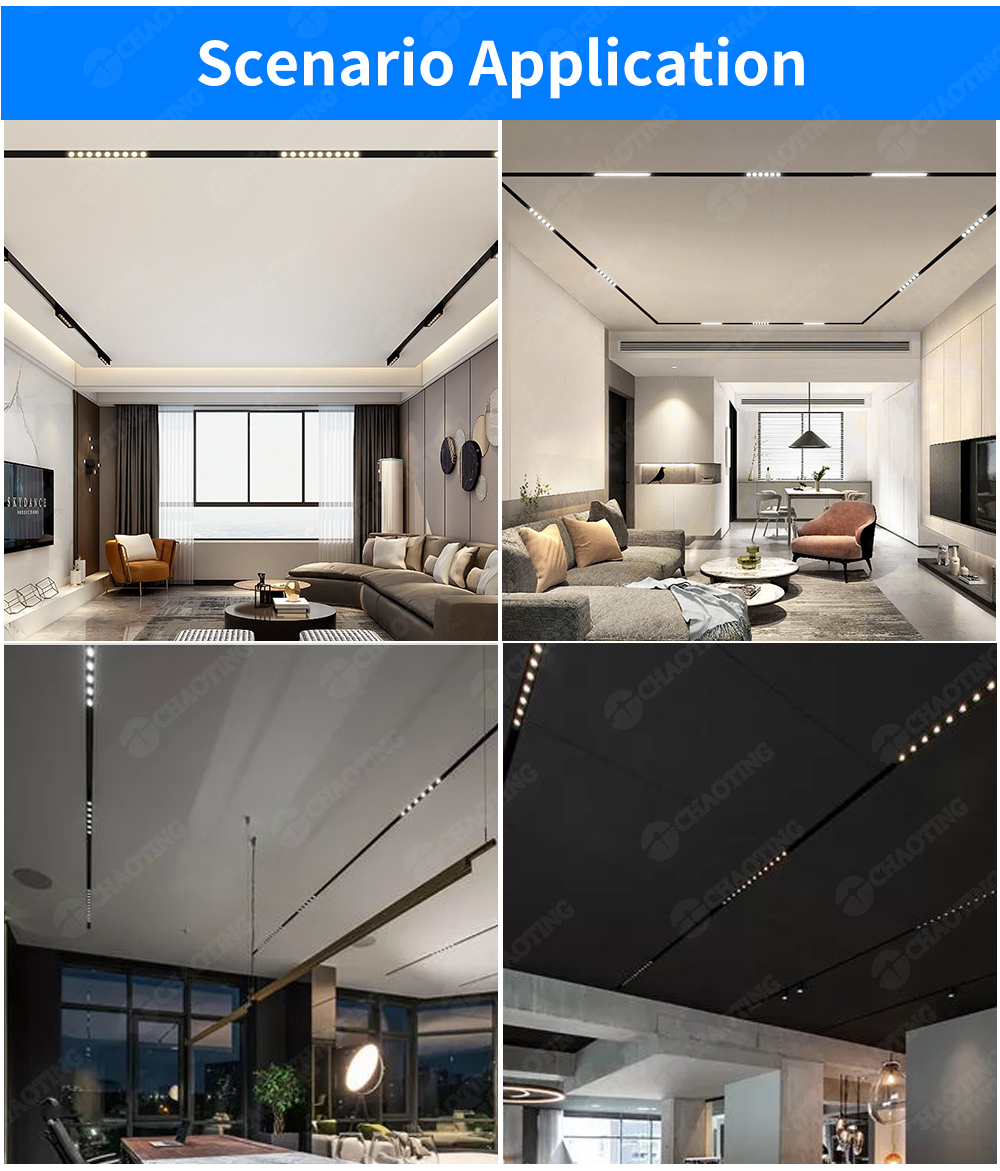

6. Wide Application Scenarios For 220V Magnetic Grille Lighting System

The complete 220V magnetic track system supports surface mounted, recessed mounted and suspended installation methods, freely collocate spotlights, pendant lamps, linear grille lamps to realize layered no-main-light lighting for all spaces:

• Modern minimalist living room, bedroom, study, villa interior decoration
• Fashion clothing boutique, jewelry shop, cosmetic store commodity display lighting
• Art gallery, painting exhibition hall, showroom artwork anti-glare accent lighting
• Cafe, dessert shop, office reception area, hotel public area atmosphere lighting

Get Wholesale Price & Product Catalog Of 220V Magnetic Grille Light

If you are a lighting distributor, project contractor or interior designer looking for cost-effective 220V magnetic track lighting solutions, welcome to contact our sales team for full product catalog, free sample testing and bulk order quotation. We support customized beam angle, color temperature, logo packaging and OEM service for global lighting projects.
