6-Wire Multi-Circuit Track Rail vs 2/4 Wire Ordinary Track Light: Why Commercial Shops Prefer 6-Conductor System

When renovating clothing boutiques, art galleries, cafes and retail showrooms, most contractors and shop owners struggle to choose between classic 2-wire, 4-wire track rail and the newly launched 6-wire multi-circuit track system. Ordinary 2/4 wire track lights can only realize unified switch or limited group dimming, which cannot meet the differentiated lighting demands of multi-functional commercial spaces. This article fully compares the structure, control mode, matching accessories and project adaptability of three track systems to help you pick the most suitable track rail for your commercial lighting project.

1. Core Circuit & Independent Control Difference

2-Wire 1-Circuit Track Rail

The simplest single-circuit track system, only one group of copper conductive strips inside the aluminum rail. All track lamps on the whole track can only turn on or off at the same time, without any separate partition control function. It’s only suitable for small single-area shops with uniform lighting demand, such as tiny convenience stores.

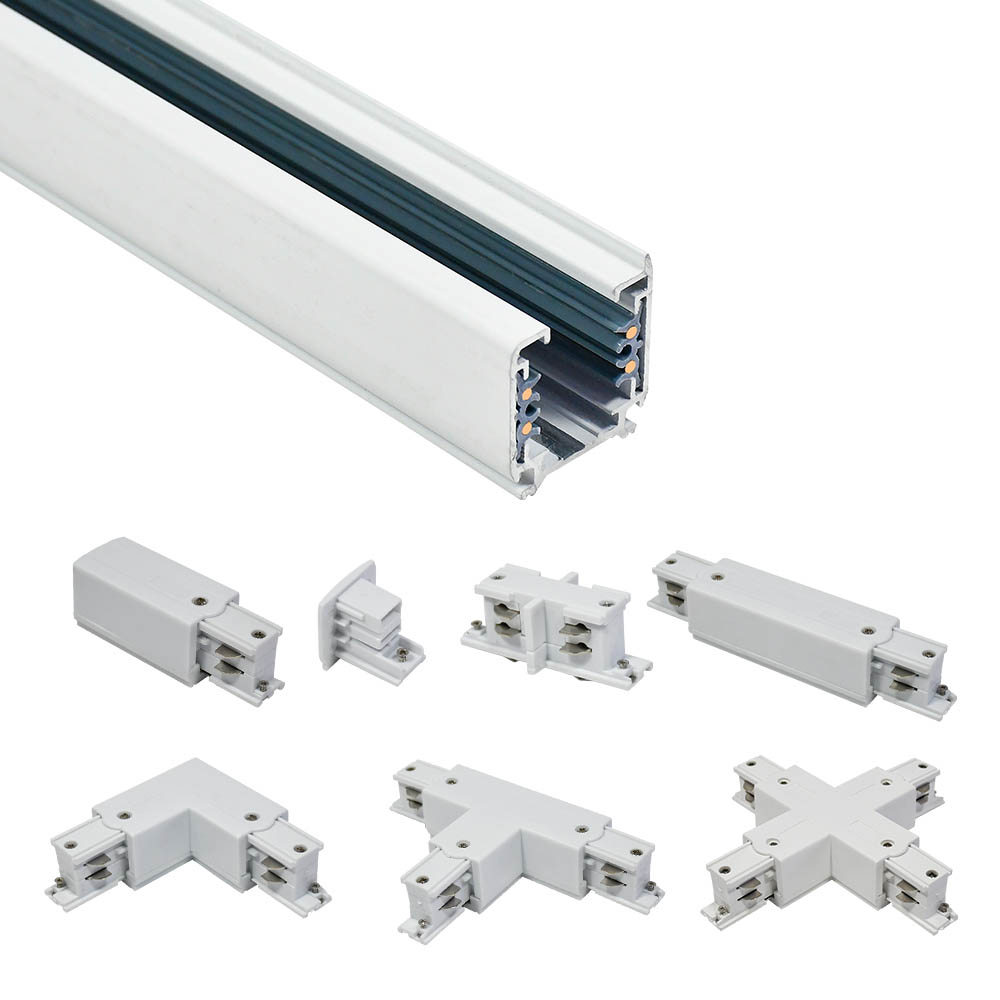

4-Wire 3-Circuit Track Rail

Equipped with 3 independent conductive circuits, users can divide the track into 3 lighting zones for separate switching. But the zone division flexibility is limited, it cannot support complex multi-area layout of large galleries and multi-area clothing boutiques. Most 4-wire systems do not match professional DALI dimming protocol.

New 6-Wire 4-Circuit Multi-Zone Track Rail

6 groups of high-purity thick copper strips form 4 completely independent control circuits. Store owners can freely divide the ceiling track into 4 different lighting zones: window display area, men’s clothing zone, women’s clothing zone and fitting room for clothing shops; exhibition booth A/B/C/D for art galleries. Each zone supports independent switch, brightness adjustment and scene mode switching, fully compatible with DALI intelligent dimming system, which is the biggest advantage over 2/4 wire track.

2. Internal Material & Conductive Stability Comparison

• Conductive copper strip: 2/4 wire track adopts thin copper sheet, which is easy to produce voltage drop when the track laying length exceeds 8 meters; 6-wire track uses widened thickened copper strips with low resistance, stable power transmission even for 30-meter long-distance layout of large commercial venues.
• Insulation material: All three types use flame-retardant ABS insulation strips, while 6-wire track adds double-layer isolation design between each circuit to effectively avoid short circuit risk caused by multi-circuit wiring.
• Aluminum housing: The three track rails all adopt extruded aluminum alloy shell with good heat dissipation, the standard dimension of 6-wire track is 31.5mm*35.5mm, which reserves more internal space for multi-group copper strips without increasing ceiling embedding difficulty.

3. Complete Matching Accessory Compatibility

Accessories of 2/4 Wire Track

Only simple linear I connector, L corner connector and single-side feeder are supplied, lacking T three-way and X cross connectors. It can only complete simple straight line and 90-degree corner layout, unable to realize complex cross and three-way partition wiring of multi-functional shops.

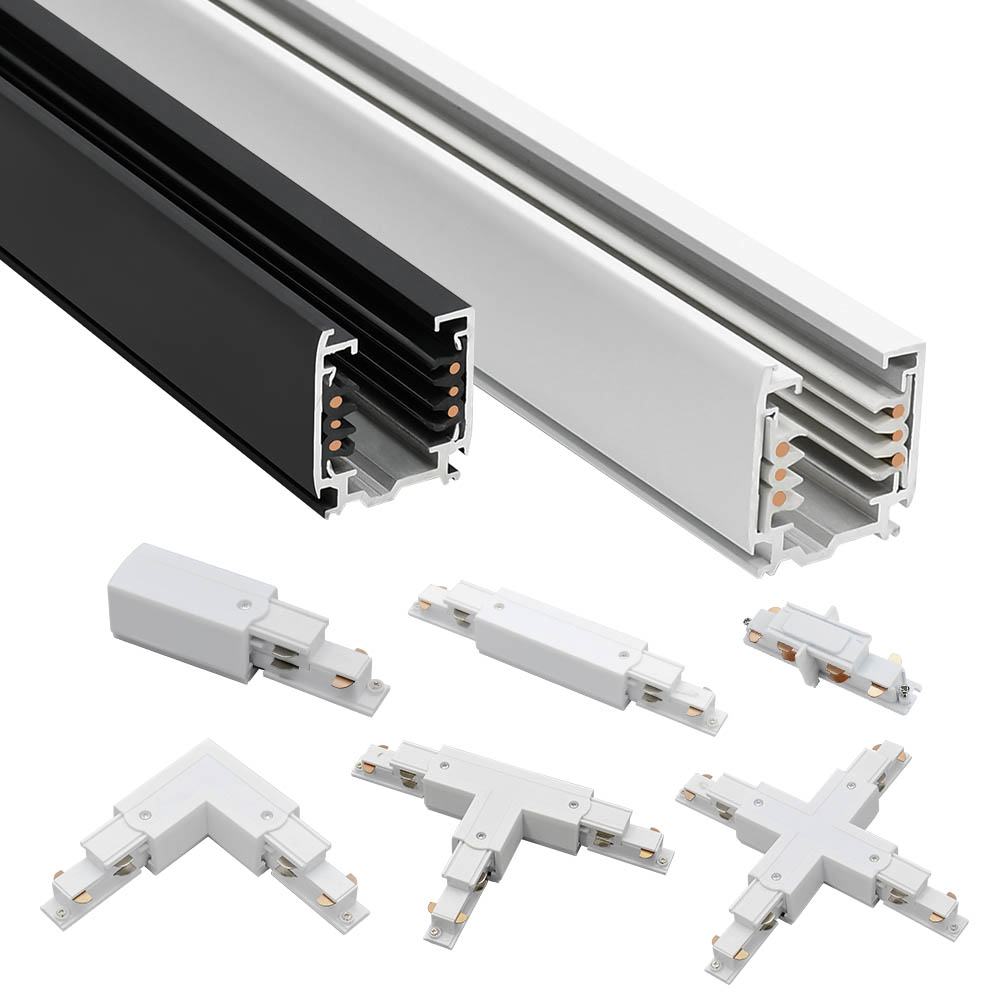

Full Set Supporting Accessories of 6-Wire Multi-Circuit Track System

Complete one-stop matching connectors support all irregular ceiling layout design of commercial spaces:

1. Track rail: 1m/2m/3m standard length, matte black & white optional;
2. Power feeder: Single-end power supply head to connect mains voltage;
3. End cap: Seal track ends to prevent electric leakage and dust;
4. I linear connector: Splice two straight track sections;
5. L right-angle connector: Complete 90-degree wall corner layout;
6. T three-way connector: Realize three-direction space partition wiring;
7. X four-way cross connector: Solve multi-booth cross layout of galleries and shopping malls.

4. Applicable Commercial Scenarios Contrast

Best Match For 2-Wire Track Light

Small single-function retail stalls, mini storage shops, low-budget small residential simple ceiling lighting, only require basic uniform spot lighting without partition control.

Best Match For 4-Wire Track Light

Medium-sized single-area clothing stores, ordinary home living room lighting, small cafes with simple zoning demand, projects with limited budget and low intelligent control requirements.

Exclusive Scenarios For New 6-Wire Multi-Circuit Track Rail

• Large multi-area clothing boutiques: Independent lighting control for window display, different clothing categories and fitting rooms;
• Art galleries & exhibition halls: Separate brightness adjustment for each artwork booth to avoid light interference between exhibits;
• High-end cafes & flower shops: Differentiate bar counter, dining area and rest lounge lighting scenes;
• Luxury villas & large showrooms: Realize layered no-main-light multi-zone intelligent lighting.

5. Wholesale & Engineering Project Cooperation Advantage Of 6-Wire Track

For global lighting distributors and commercial project contractors, the new 6-wire multi-circuit track rail is a differentiated competitive product that cannot be replaced by traditional 2/4 wire track lights:

1. Market differentiation: Few manufacturers launch mature 6-conductor track system in the market, less competition and higher profit margin for wholesalers;
2. Flexible order policy: Support small sample orders for market test, mixed bulk loading of track rails and all matching connectors;
3. OEM customization service: Custom track length, shell color, printed brand LOGO and private packaging box;
4. Free engineering support: Provide customized lighting layout drawings according to store space size for large commercial projects;
5. Long quality warranty: 5-year full system warranty for track rail and all supporting accessories.

Conclusion: Which Track Rail Should You Choose?

If you are decorating a tiny single-area shop with simple lighting demand and limited budget, 2-wire track light can meet basic lighting needs. For medium-sized stores with simple partition requirements, 4-wire 3-circuit track rail is a cost-effective choice. But for high-end commercial projects such as large clothing boutiques, art galleries and multi-functional exhibition halls that need multi-zone independent intelligent control, the new 6-wire multi-circuit track rail is undoubtedly the most ideal long-term lighting solution.

If you want to get complete parameter sheets, layout case drawings and latest wholesale price list of our 6-wire track system, feel free to contact our sales team for professional project matching consultation.
