6-Wire Multi-Circuit LED Track Rail: Full Guide For Gallery, Boutique & Villa Lighting Projects

Traditional 2-wire and 4-wire track lighting can only realize single-circuit unified control, which cannot meet the differentiated lighting needs of multi-functional commercial spaces. Our newly launched 6-wire multi-circuit aluminum track rail solves this pain point perfectly. It supports 4 independent lighting zones to realize separate switch and dimming control, becoming the preferred lighting solution for high-end clothing boutiques, art galleries, cafes and luxury villas in the global market.

1. What Is The Core Advantage Of 6-Wire Multi-Circuit Track Rail Compared With Ordinary Track?

• 4 independent control circuits: Different areas of the store can turn on/off and adjust brightness separately without interfering with each other;
• DALI dimming compatible: Match smart dimming system to realize scene mode switching for exhibition, rest area and window display;
• High-conductivity thick copper strips: Stable power transmission, long-distance laying without voltage drop;
• Complete matching accessories: I/L/T/X cross connectors to freely splice any space layout;
• Aluminum alloy shell: Fast heat dissipation, flame-retardant insulation strip, long service life and safe use.

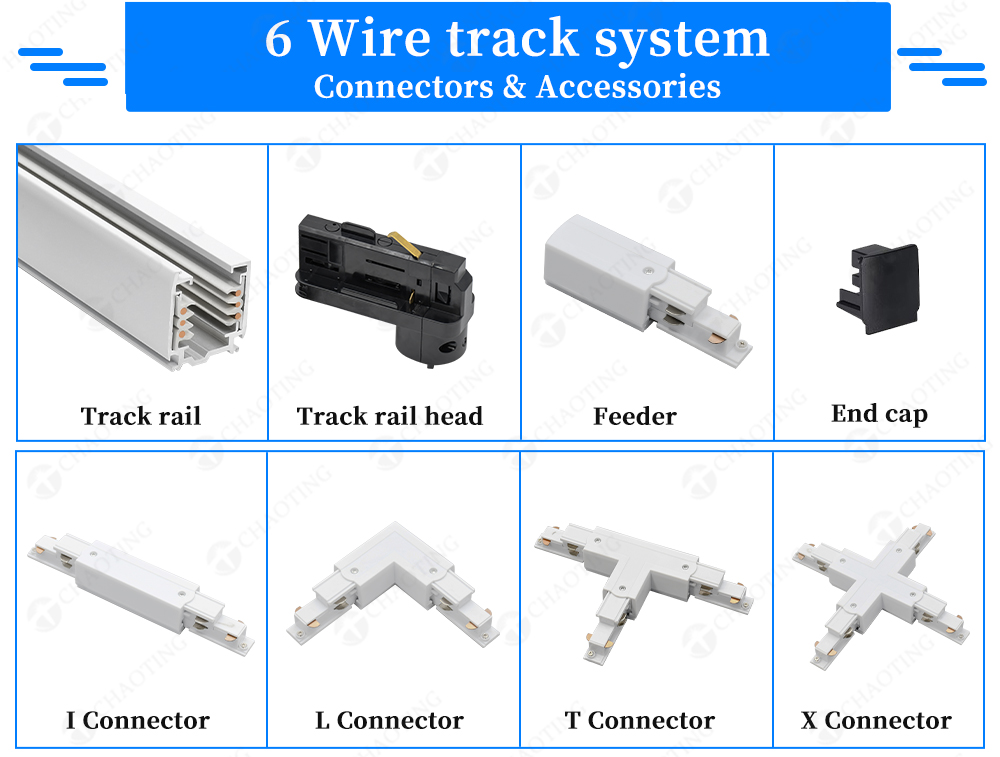

2. Full Set Supporting Accessories Of 6-Wire Track System

The complete 6-wire track lighting kit contains all splicing and installation accessories to support any irregular ceiling layout design:

• Track rail: 1m/2m/3m standard length, black & white two optional colors, size 31.5*35.5mm;
• Power feeder: Single-side power supply head to connect mains power;
• End cap: Seal the two ends of the track to prevent electric leakage;
• Linear I connector: Splice two straight track sections;
• L right-angle connector: Realize 90-degree corner layout;
• T three-way connector: Three-direction space layout;
• X four-way cross connector: Four-way multi-area partition wiring.
•

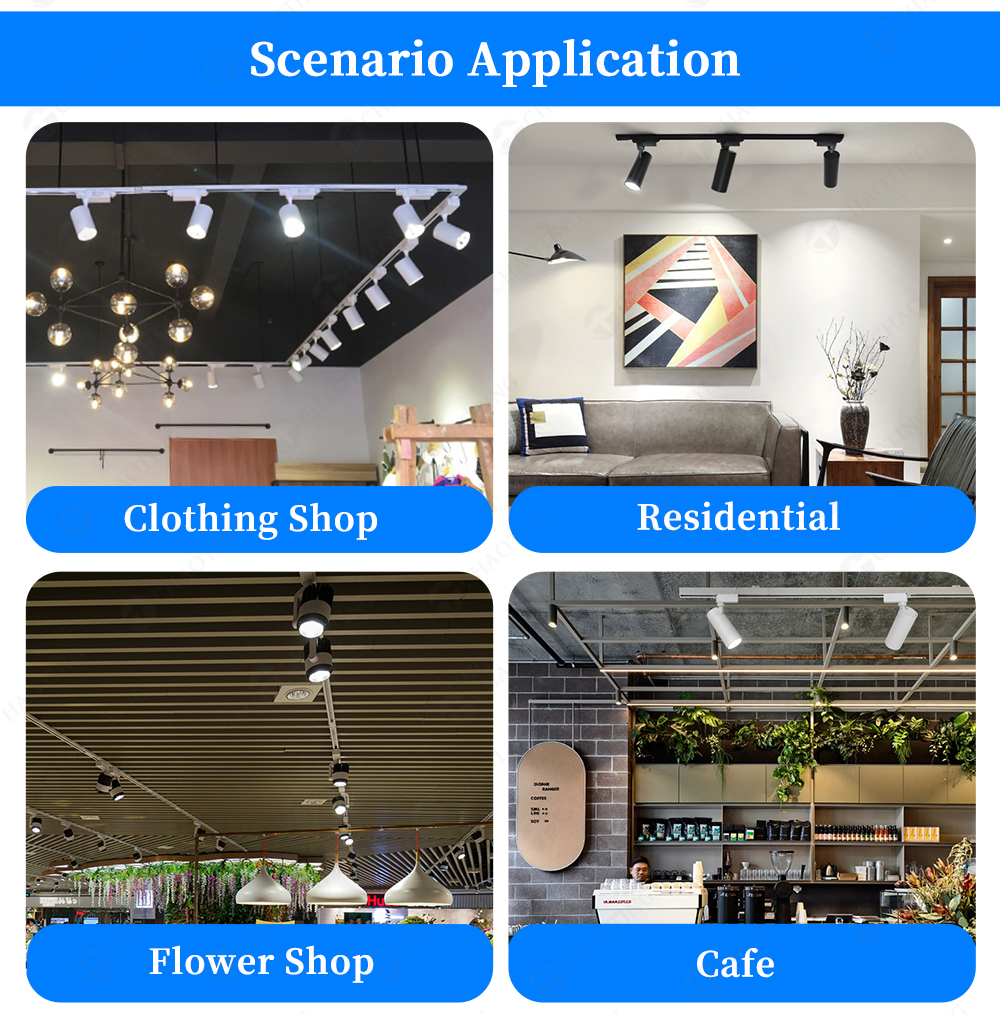

3. Suitable Application Scenarios For 6-Wire Multi-Circuit Track Lighting

Multi-zone independent control is the core selling point of this new track rail, which is highly matched with the lighting logic of commercial places with multiple functional areas:

Clothing Boutique

Separate control of window display area, men's clothing area, women's clothing area and fitting room, adjust different brightness and color temperature according to new product launch and business hours.

Art Gallery & Exhibition Hall

Different exhibition booths independently adjust light brightness to avoid overexposure of art paintings and artworks, highlight texture without light interference between exhibits.

Cafe & Restaurant

Distinguish dining area, bar counter and rest lounge, switch warm soft light scene at night to create a relaxing atmosphere.

Luxury Villa & Large Living Room

Realize layered no-main-light lighting, independently control sofa area, background wall and display cabinet lighting.

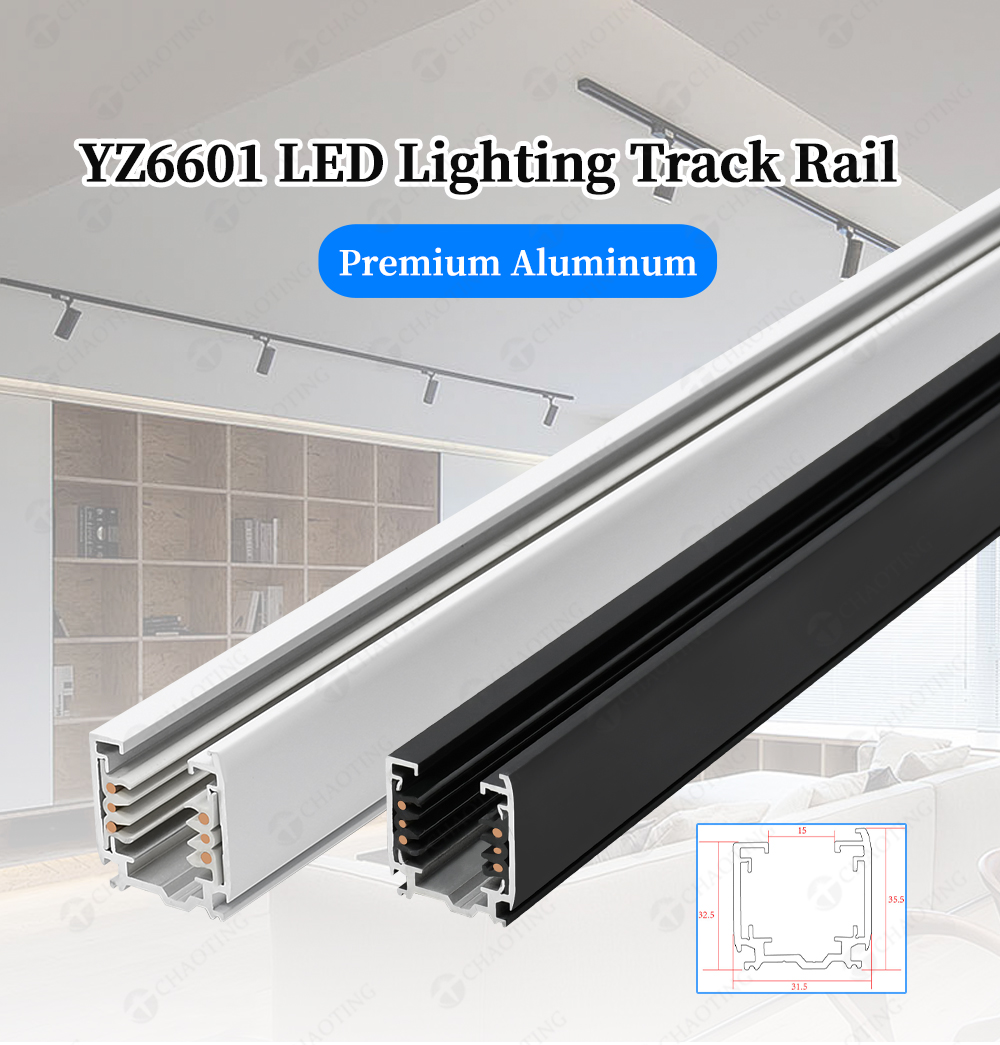

4. Material & Size Parameter Introduction

• Shell material: Extruded aluminum alloy, wear-resistant and good heat dissipation;
• Conductive part: 6 groups of high-purity thick copper strips, low resistance and stable conduction;
• Insulation layer: Flame-retardant ABS material, meet international electrical safety standards;
• Standard dimension: Width 31.5mm, height 35.5mm;
• Optional length: 1000mm / 2000mm / 3000mm customized length support;
• Appearance color: Matte black / matte white two conventional colors, support OEM color customization.

5. Installation Layout Guide: How To Splice 6-Wire Track With Different Connectors

The flexible connector combination can splice any ceiling layout according to the space drawing:

1. Use I linear connector for long straight wall and aisle layout;
2. Match L connector for wall corner and room edge turning;
3. T connector is suitable for space three-way partition such as clothing store passage;
4. X cross connector for multi-area intersection such as gallery multi-booth intersection;
5. Install power feeder at the track end, and seal the other end with end cap after layout completion.

6. Wholesale & OEM Cooperation Support For Global Distributors

As the original manufacturer of the new 6-wire multi-circuit track rail, we provide flexible cooperation policies for global lighting distributors and engineering contractors:

• Sample support: Small quantity sample order available for market test;
• Mixed bulk order: Support mixed loading of track rail and matching connectors;
• OEM customization: Custom packaging box, brand LOGO printing, custom track length;
• Project support: Provide free lighting layout scheme drawing for large commercial projects;
• Warranty guarantee: 5-year whole set track system quality warranty.

If you are looking for a differentiated commercial lighting product to seize the local high-end boutique and gallery market, our new 6-wire multi-circuit track rail is the best competitive product. Contact us to get complete parameter specification and wholesale price list.
