When undertaking large exhibition halls, permanent showrooms and continuous display areas, many contractors will encounter troubles with magnetic track layout. Simply cutting rails and splicing them on site often leads to uneven power supply, gaps between sections or unstable lamp fitting. Reasonable planning of single rail length and matching suitable connectors is the key to a smooth project handover.

Most factory standard magnetic track rails are produced in 1m, 2m and 3m fixed sizes. Some buyers tend to buy the longest rail to reduce splicing points. However, long rails bring difficulties for transportation, lifting and ceiling embedding. It is necessary to balance transport conditions, ceiling structure and circuit layout before confirming track specifications.

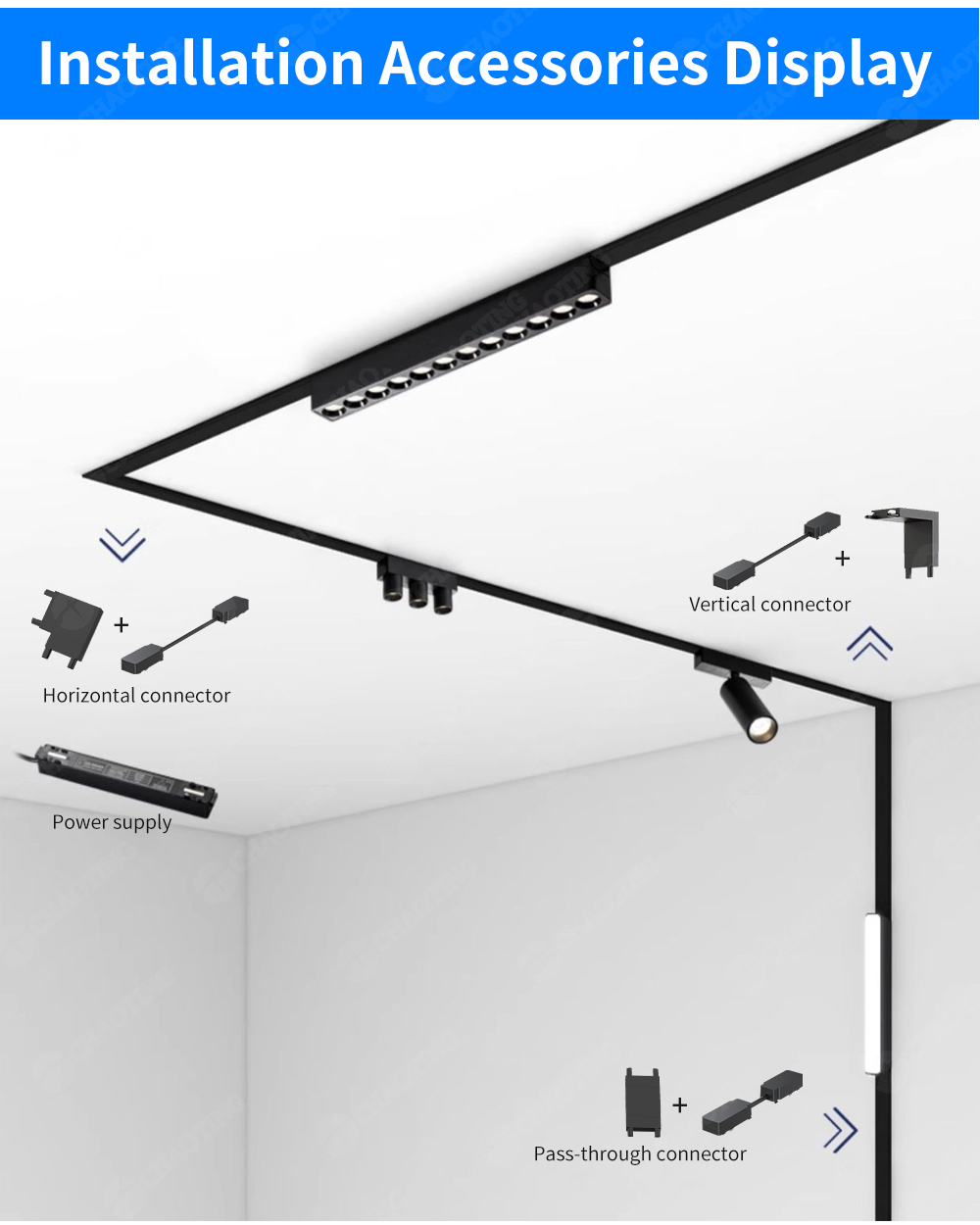

Select connectors based on your space layout

Linear straight connection uses standard I-type connectors, which is the simplest solution for straight ceiling arrangement. If you need to turn corners for wall display zones, rigid L-shaped connectors are the first choice for right-angle layout. Keep in mind rigid L connectors require precise cutting of track ends, small dimensional errors will cause assembly failure.

Flexible connectors are good for slight angle adjustment and position correction during installation. But we do not suggest using too many flexible joints on one continuous circuit, excessive flexible connections will affect power transmission stability. For cross display zones and T-shaped partition layouts, dedicated X-type and T-type track connectors are designed for these special layouts.

Practical reminders for long-distance magnetic track systems

Do not build an ultra-long single loop without planning power access points. When the total track length exceeds 12 meters, adding multiple power supplies at different positions effectively prevents voltage drop and dim lighting at the far end of the track.

Confirm track internal wiring structure before purchasing connectors. Different manufacturers’ magnetic rails have slight differences in conductive strip position. Mismatched connectors cannot conduct electricity normally, which is one of the most frequent problems we see in overseas project sites.

Custom Magnetic Track Rail & Connector Wholesale

We supply complete magnetic track rails and full series matching connectors, including straight, L, T, X and flexible connectors. Standard length rails are in stock, customized cutting service is available for commercial exhibition and retail chain projects.

If you are designing lighting layout for exhibition projects and need technical drawings, dimension lists or bulk wholesale quotations, send over your layout plan for a tailored lighting solution.
