Magnetic Track Light FAQ: 12 Most Frequently Asked Questions For Buyers & Interior Designers

When wholesale buyers, interior designers and homeowners search magnetic track lighting on Google, they have many confusing questions about voltage, smart control, installation ways, track size, lamp types, accessories, beam angle and color temperature. This FAQ collects 12 high-frequency customer & Google search questions, all matched with our 220V high voltage magnetic track system real pictures, solving all your magnetic lighting doubts at once.

Q1: Does this 220V magnetic track light support smart control like Tuya, Zigbee, Bluetooth, Alexa and Google Assistant?

A: Yes. Our 220V magnetic track lighting system is compatible with Tuya APP, Zigbee, Bluetooth. It supports dimming brightness 0%-100% and tunable color temperature from 2700K to 6500K. You can control the lights via mobile phone, Amazon Alexa or Google Assistant voice command, create custom scene modes for daily life.

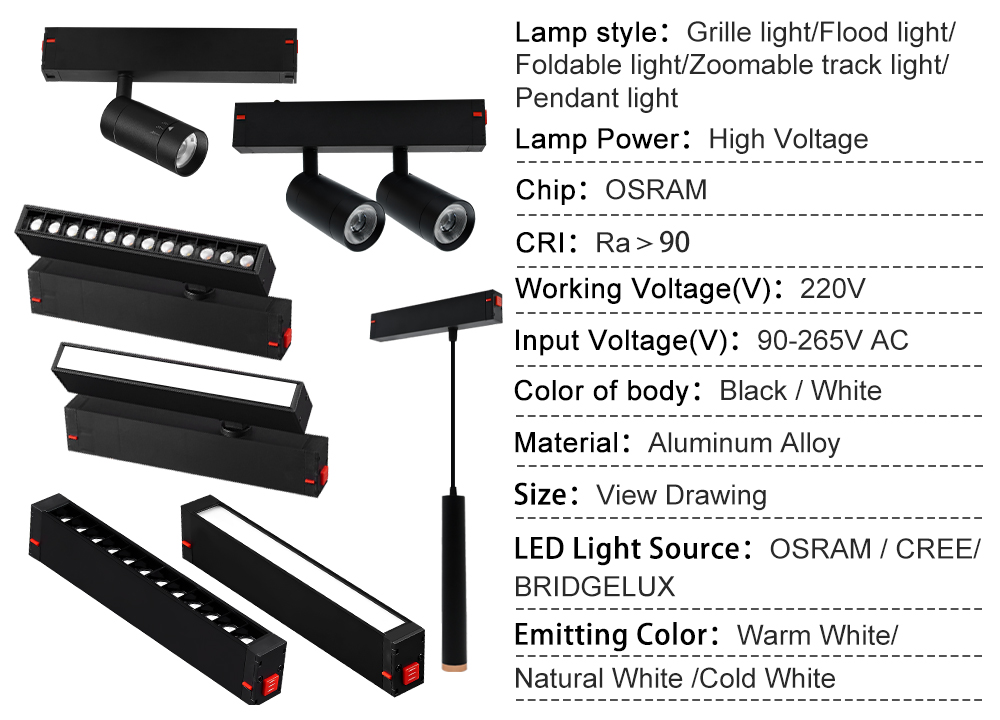

Q2: What lamp styles are available for this 220V magnetic track rail? What chips do you use?

A: We supply a full series of interchangeable magnetic lamp heads for the same track rail, all built with high-quality OSRAM / CREE / BRIDGELUX LED chips, CRI>90 to restore true color of clothes, artworks and furniture. Available lamp types: 1. Magnetic Grille Light (anti-glare narrow beam) 2. Magnetic Flood Light (wide area ambient fill light) 3. Foldable Grille / Flood Light (adjustable angle) 4. Zoomable Magnetic Track Spotlight 5. Magnetic Pendant Light All lamp bodies are made of aluminum alloy, black & white housing optional, input voltage AC90-265V wide voltage.

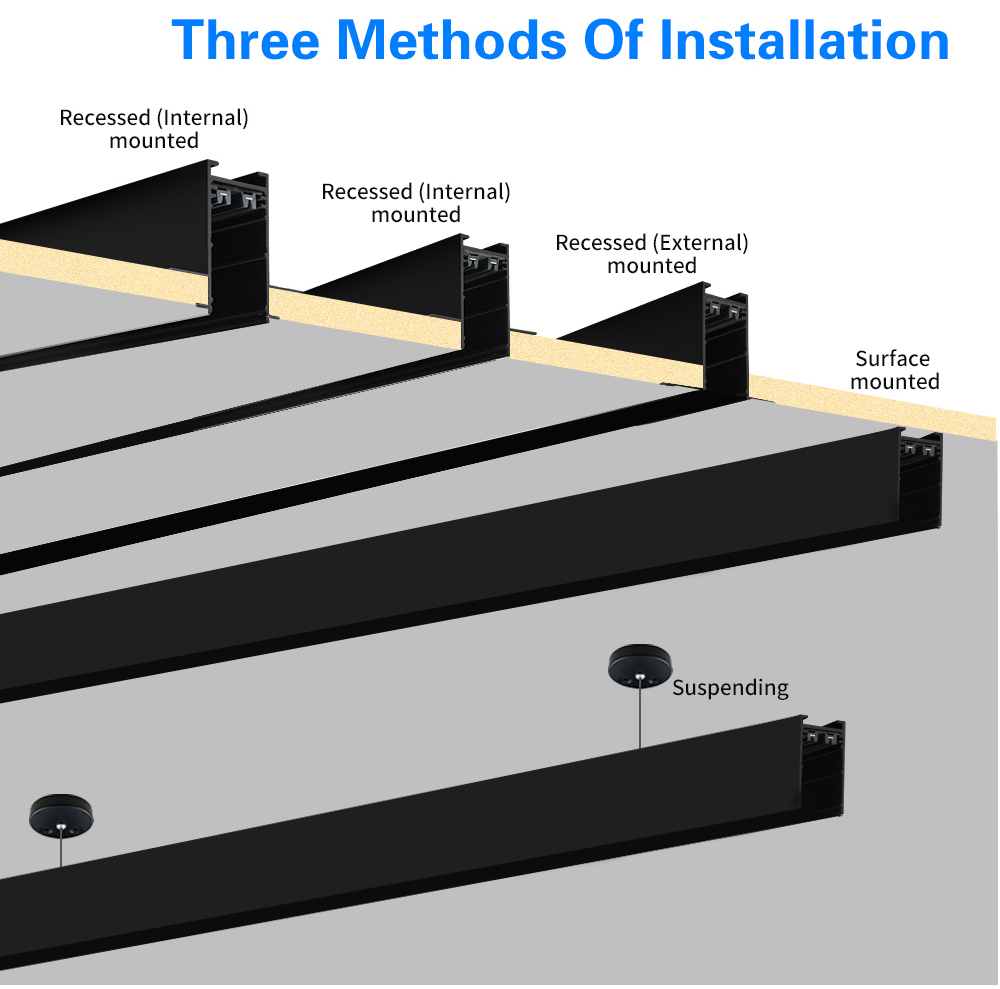

Q3: How many installation methods does the 220V magnetic track support? Can it fit old house renovation?

A: Our 6809 series magnetic track supports 4 universal installation modes to fit new decoration and old apartment renovation: 1. Surface Mounted: Directly fixed on ceiling, no ceiling slot required, best for old house refit 2. Recessed External Mounted: Half embedded into gypsum board, shallow slot only 3. Recessed Internal Mounted: Fully hidden inside ceiling for seamless minimalist look 4. Suspended Mounted: Hang with hoisting accessories for high-ceiling villa & loft No deep ceiling cutting needed for surface installation, greatly reduce renovation cost and construction time.

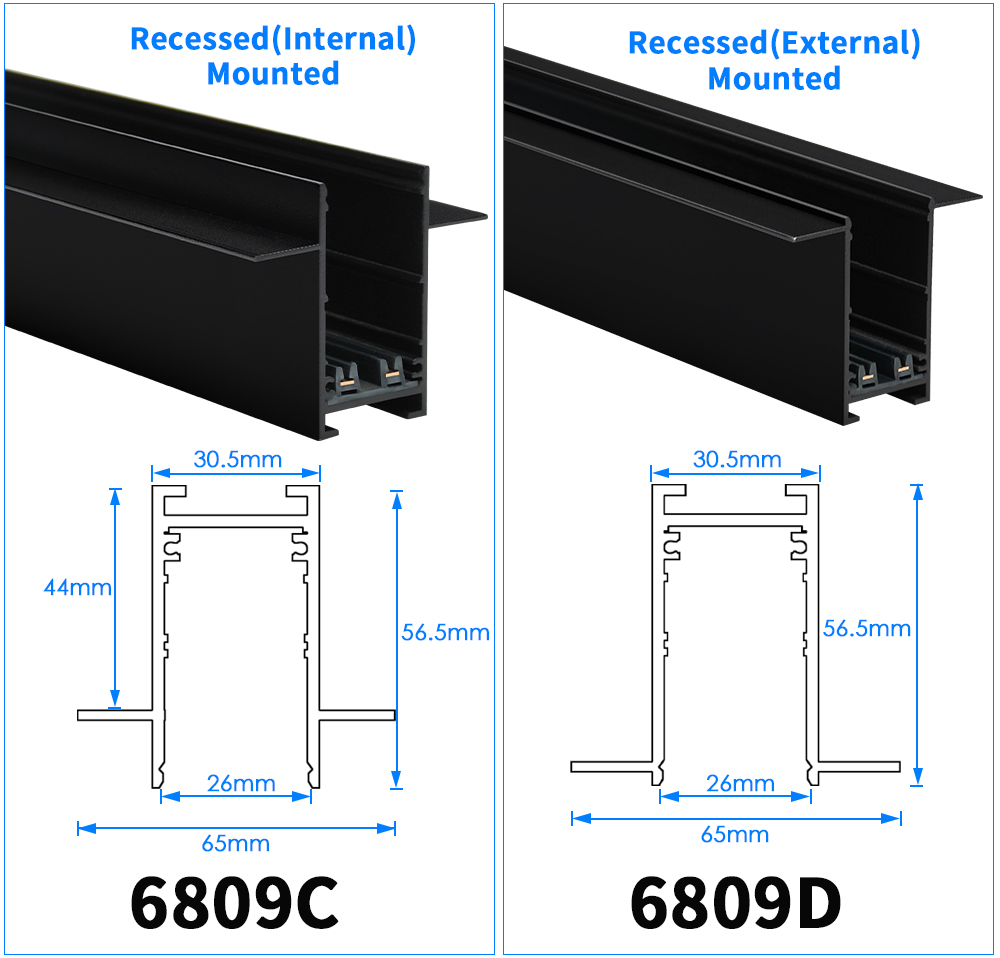

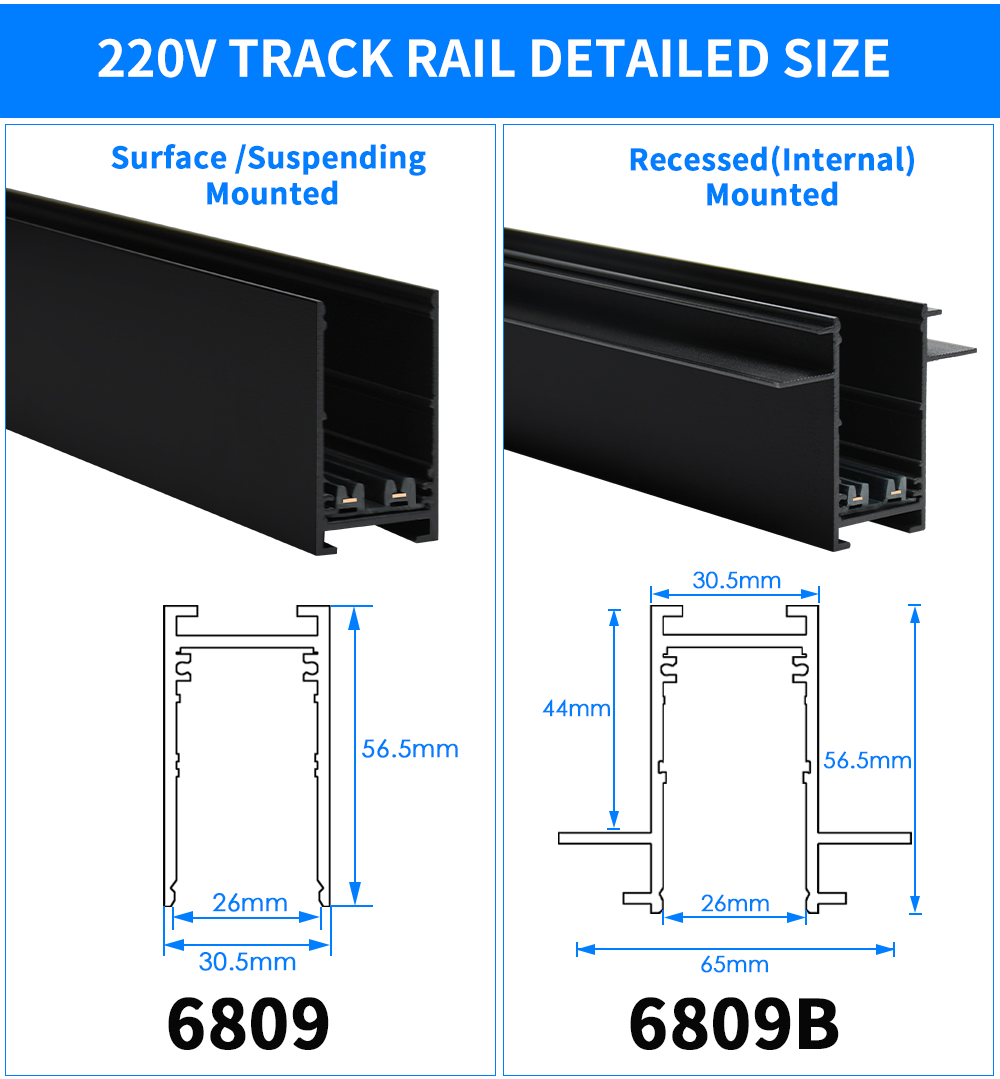

Q4: What track rail sizes do you provide for different installation ways? What’s the section dimension?

A: We developed 4 track profiles model 6809 / 6809B / 6809C / 6809D for different mounting demands: - 6809: Surface / Suspended Mounted, outer width 30.5mm, height 56.5mm - 6809B: Recessed Internal Mounted, total width 65mm, height 56.5mm - 6809C: Recessed Internal Mounted - 6809D: Recessed External Mounted All tracks adopt thickened aluminum extrusion, strong bearing capacity for multiple lamp heads.

Q5: What matching installation accessories do I need for splicing track layout?

A: We supply a complete set of matching accessories to freely splice track into L-shape, T-shape, cross shape or long straight lines: 1. I-Type straight connector: Extend track length unlimitedly 2. L-Type horizontal & vertical corner connector: For room corner layout 3. Power head: Connect household AC220V mains power 4. Embedded part, joiner cover, hoisting hanging parts for suspended installation All accessories match black & white track rail perfectly.

Q6: What power options and beam angles are magnetic grille light & flood light available?

A: 1. Magnetic Flood Light (120° wide beam): 9W / 18W / 27W, 3 lengths optional 2. Magnetic Grille Light (anti-glare): 9W / 18W, beam angle 15°/24°/36° adjustable Both series use OSRAM chip, frosted aluminum body for fast heat dissipation, no light decay after long time use.

Q7: What’s the difference between foldable magnetic grille light and regular grille lamp?

A: Foldable series lamp body can flip the light emitting surface up and down, freely adjust irradiation angle without moving the lamp position on track. Same power specifications: 9W / 18W, beam angle 24°, suitable for wall washing, artwork local accent lighting, flexible layout for irregular space.

Q8: What power and beam angles do magnetic track spotlights support?

A: Magnetic spotlights adopt BRIDGELUX chip, narrow focused beam 15°/24°/36° for accent lighting: - 7W small spotlight: Ø40*80mm / Ø40*90mm - 20W large spotlight: Ø50*100mm Perfect for clothing store, jewelry shop, gallery artwork display to highlight product texture.

Q9: What color temperature range can this magnetic track light adjust? What scenes fit each CCT?

A: Full tunable color temperature range 2700K~6500K, three classic fixed light modes for different usage: 1. 3000K Warm Light: Cozy atmosphere for living room, bedroom, villa resting area 2. 4000K Neutral Light: True color restoration for clothing boutique, gallery, office 3. 6000K Cool White Light: High brightness for showroom, supermarket, public reception space

Q10: Is 220V high voltage magnetic track safe? Will lamp heads fall off easily?

A: Safe enough for daily commercial & household use. Every lamp head is equipped with double side safety lock buckles, only press two red buckles simultaneously can you take down the lamp. Strong built-in magnet holds lamp tightly on track, collision and vibration will not cause falling. Internal conductive terminals are fully insulated to avoid electric leakage risk.

Q11: Can magnetic lamp heads slide freely on the track to adjust lighting position?

A: Yes, all lamp heads can slide freely along the track rail at any time, no extra wiring required. You can re-layout the lighting distribution anytime according to new display furniture or home decoration adjustment, flexible and easy to modify without construction work.

Q12: What scenes are 220V magnetic track lighting most suitable for?

A: Widely used in residential and commercial projects: 1. Modern no-main-light home: living room, bedroom, study, loft, villa 2. Retail shop: fashion clothing store, cosmetic shop, jewelry boutique, shoe store 3. Commercial space: art gallery, painting exhibition hall, cafe, office lobby, hotel public area 4. Old house renovation: surface mounted installation without destroying original ceiling structure

Get Wholesale Catalog & Custom Magnetic Track Lighting Solution

If you are a lighting wholesaler, interior designer or renovation contractor with more questions about 220V magnetic track light, contact our sales team to get full product catalog, free sample testing, customized beam angle, CCT, logo and OEM packaging service for global lighting projects.
