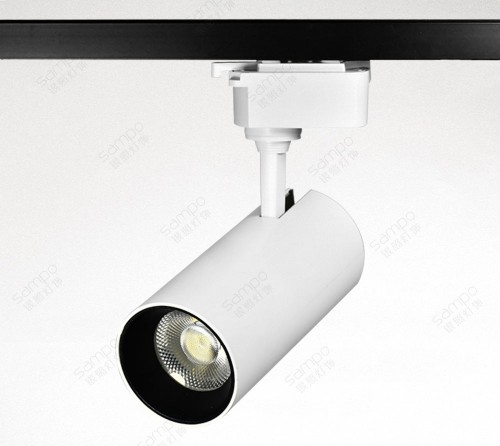

YZ7105 COB Track Light



YZ7105 COB Track Light

  • Power available at 10/20/30W.
  • For commercial & residential track lighting.
  • The beam angle is at 24°/36°.
  • Voltage 165-265V available on request.
  • Color temperature 3000K~6000K.
  • Stunning design finished with stoving varnish.
  • Black, white, gray, and other colors are optional.
  • Die-casting aluminum housing.
  • Integrated with a reliable non-isolated driver.
  • COB chips are optional from famous brands.
  • 360° horizontally & 90° vertically adjustable head.
  • Fix on track rail without tool.

YZ7105 10W 20W 30W LED Track Lighting Heads



YZ7105 LED track lighting heads have optional powers at 10/20/30W for commercial & residential lighting solutions, comes with durable die-cast aluminum enclosure finished with stoving varnish, black, white, and gray are optional. It produces soft spotlight to highlight the objects with a mild feeling. The LED chip is COB type and optional from famous brands. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 90° and horizontally rotatable at 360°. The voltage range is between 165-265V to comply with different standards in many countries.

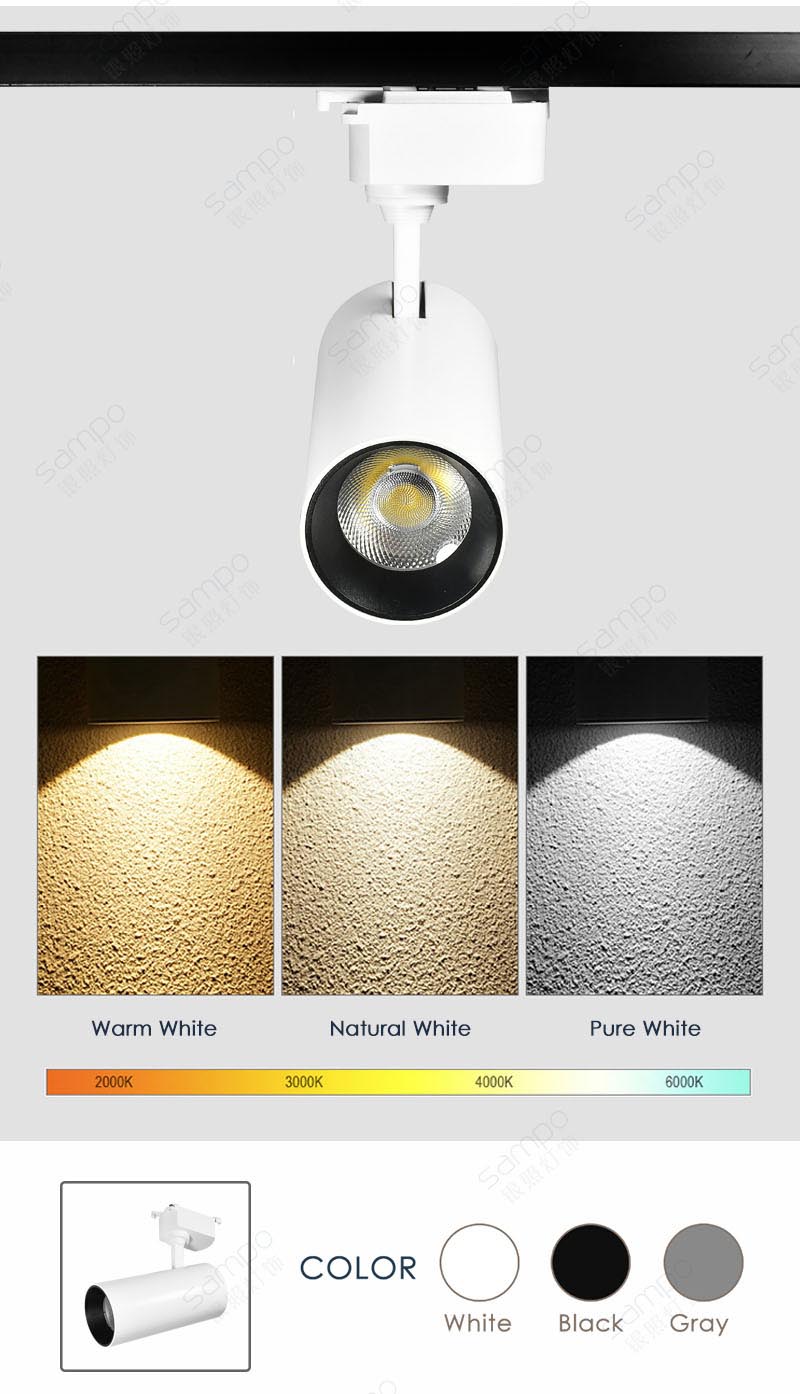

Surface Finishing | YZ7105 10W 20W 30W LED Track Lighting Heads

COB chips of the track lighting heads are optional to be sourced from famous brands, CREE, Epistar, Bridgelux, and so on.  And the lens applied GR OPTICS technology.




COB Chips | YZ7105 10W 20W 30W LED Track Lighting Heads

The surface of the housing was finished with stoving varnish and has white & black as standard colors, comes with stunning design.



Specifications

Item No.  YZ7105
Power 10/20/30W
Input Voltage 165-265V
Luminous Efficiency 80 or 90 lm/W
Working Temp. -20~50°C
Color Temp. 3000-6000K
CRI Ra>80/90
Beam Angle 24°
LED Source COB
Housing Material Aluminum
Finishing Stoving Varnish
Color White/Black/Gray
Lifespan (hrs) 30000
Warranty (Years)  2
Dimmable (Y/N) N
CCT Adjustable (Y/N) N
Dimension (mm) 10W: Φ50*120mm
20W: Φ68*150mm
30W: Φ78*175mm

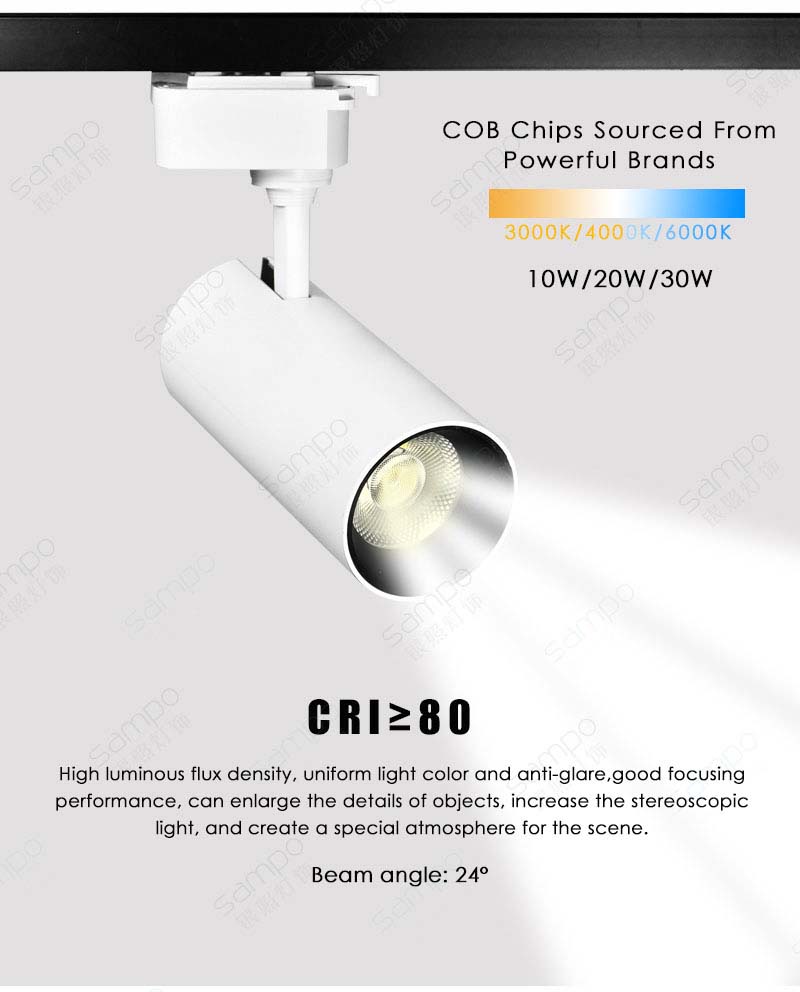

CRI Performance | YZ7105 10W 20W 30W LED Track Lighting Heads

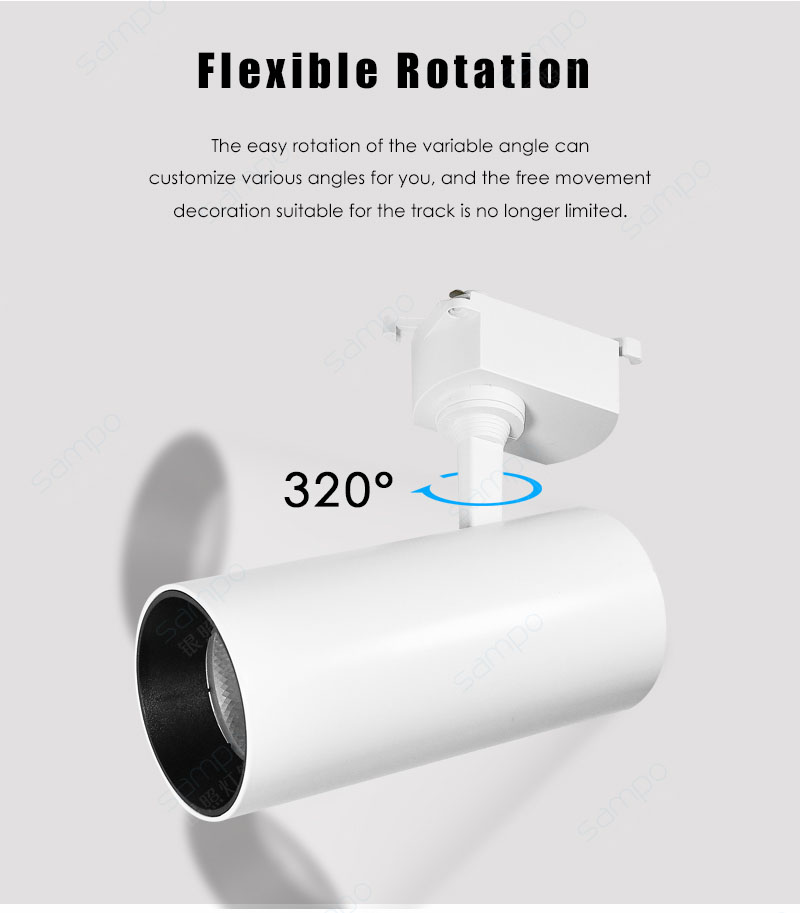

Rotatable | YZ7105 10W 20W 30W LED Track Lighting Heads

The housing of the LED track lighting heads is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

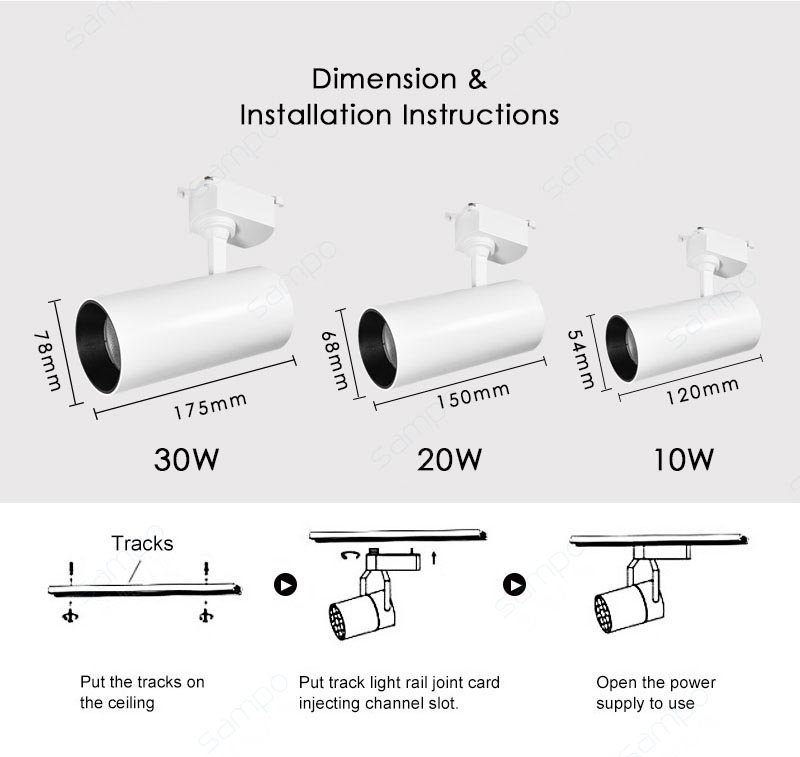

Dimension | YZ7105 10W 20W 30W LED Track Lighting Heads

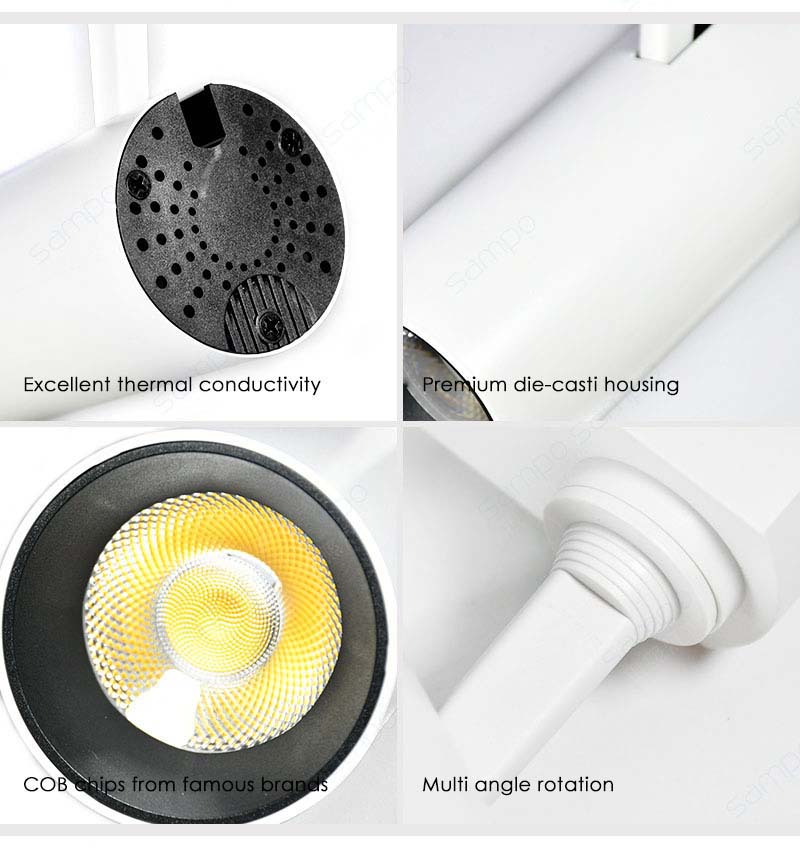

Features | YZ7105 10W 20W 30W LED Track Lighting Heads
