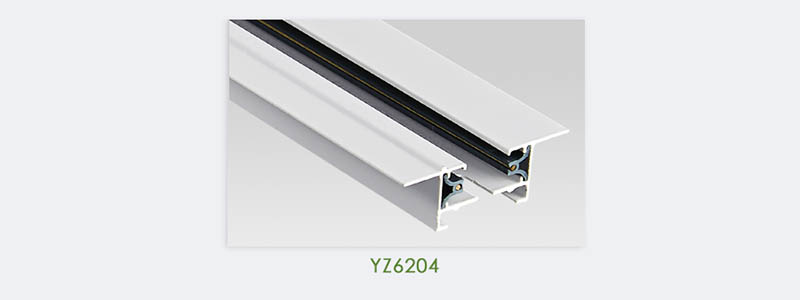

Two-Wire Track Rail

Two-Wire Track Rail

Two-Wire Track Rail

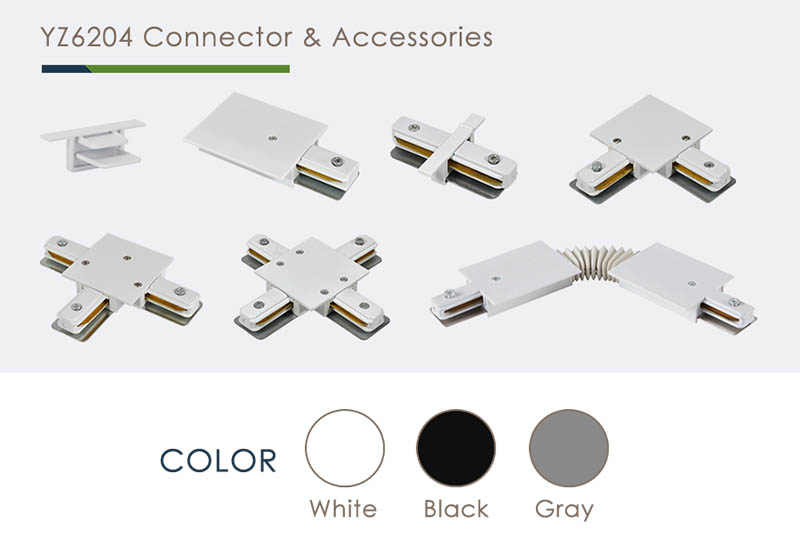

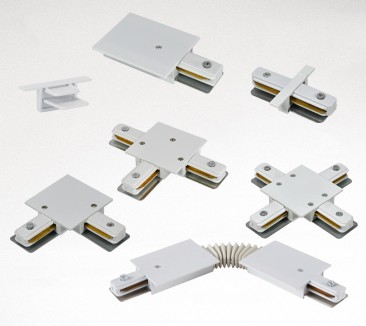

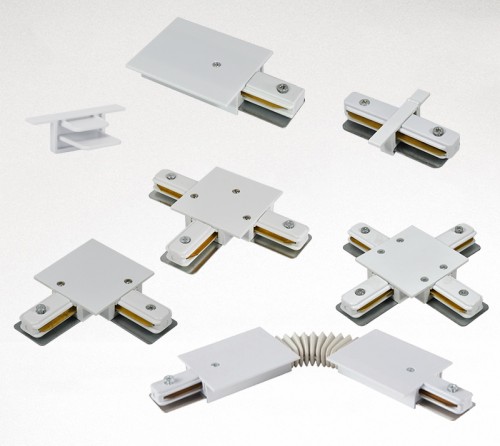

YZ6204 Track Connectors & Accessories



YZ6204 Track Connectors & Accessories

  • Compatible with YZ6204 recessed track rail.
  • For 2 wire 1 circuit track lighting system.
  • Flame retardancy PC plastic material shell.
  • High performance at electric insulation.
  • White, black, and other custom colors are available.
  • Copper pieces have high performance at conductivity.



YZ6204 Track Connector is for 2-wire 1-circuit recessed track lighting systems to construct the lighting track layout. The connector body was made of ABS material with features of flame retardancy & insulation to ensure electrical safety, it comes with brass contact pieces for power conducting between track rails.



YZ6204 Expandable Track Lighting Kits



YZ6204 Expandable Track Lighting Kits

YZ6204 Expandable Track Lighting Kits



Specifications

Item No. YZ6204
Brand Sampo
Wire type Two-Wire
Circuit type One-Circuit
Material ABS Plastic
Colors White, black, customized
Certificated CE, RoHS
Application Indoor commercial
Packing Carton

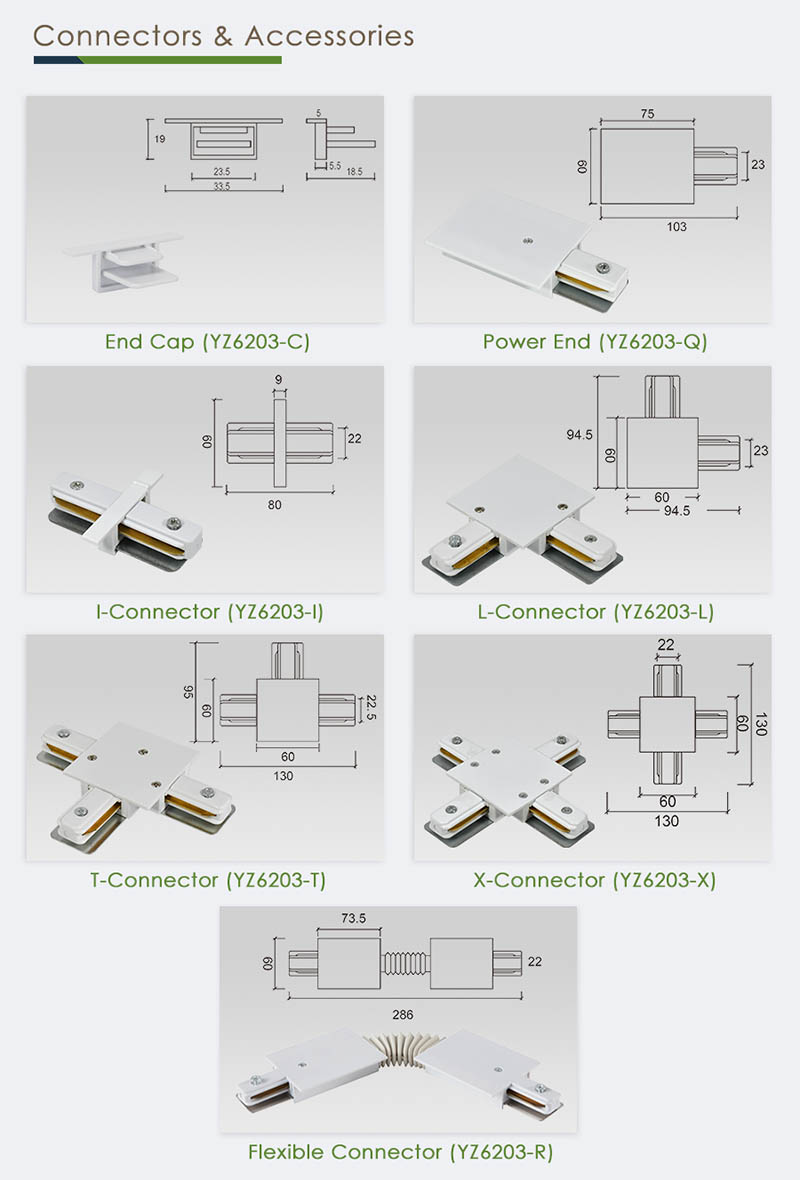

Dimension | YZ6204 Expandable Track Lighting Kits

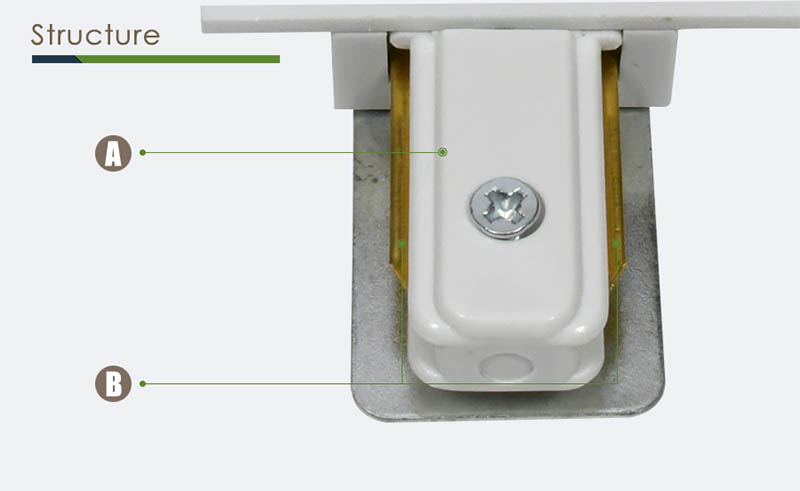

Structure | YZ6204 Expandable Track Lighting Kits

A. Body material is ABS has excellent features of flame retardancy & insulation to ensure electrical safety.
B. Brass contact pieces have high performance at conductivity.
