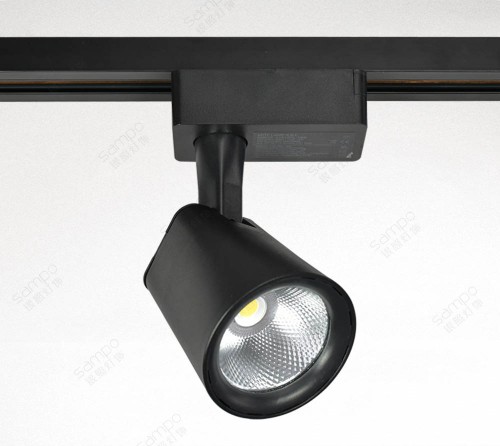

YZ7103 COB Track Light



YZ7103 COB Track Light

  • For living room & other residential applications.
  • Power available at 10/20/30W.
  • The beam angle is at 24°.
  • Voltage 220-240V available on request.
  • Color temperature 3000K~6000K.
  • Stunning design finished with stoving varnish.
  • Black, white, gray, and other colors are optional.
  • Die-casting aluminum housing.
  • Integrated with a reliable non-isolated driver.
  • COB chips are optional from famous brands.
  • 320° horizontally & 90° vertically adjustable head.
  • Fix on track rail without tool.

YZ7103 Best Modern Track Lighting For Living Room



YZ7103 track lighting fixtures are for living room application, it has optional powers at 10/20/30W for commercial & residential lighting solutions, comes with durable die-cast aluminum enclosure finished with stoving varnish, black, white, and gray are optional. It produces a soft spotlight to highlight the objects with a mild feeling. The LED chip is COB type and optional from famous brands. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 90° and horizontally rotatable at 320°. The voltage range is between 220-240V or on the customer's request to comply with different standards in many countries.

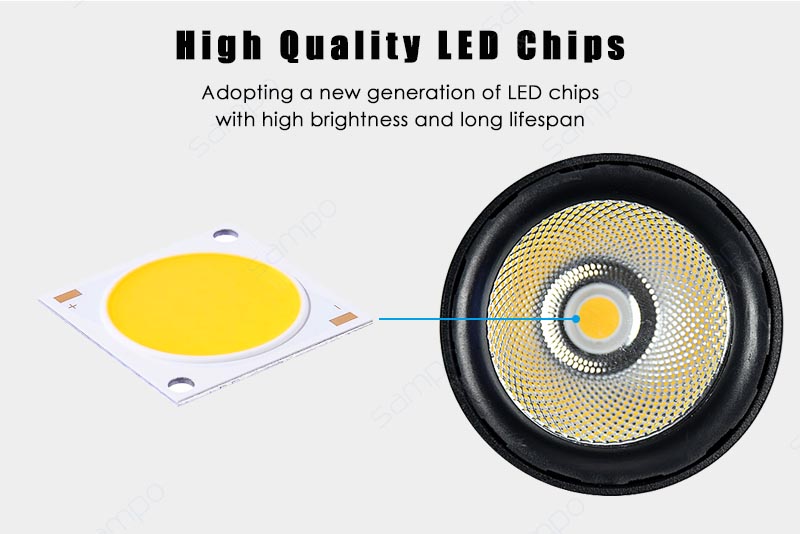

COB Chips | YZ7103 Best Modern Track Lighting For Living Room

COB chips of the track lighting fixtures are optional to be sourced from famous brands, CREE, Epistar, Bridgelux, and so on.  And the lens applied GR OPTICS technology.

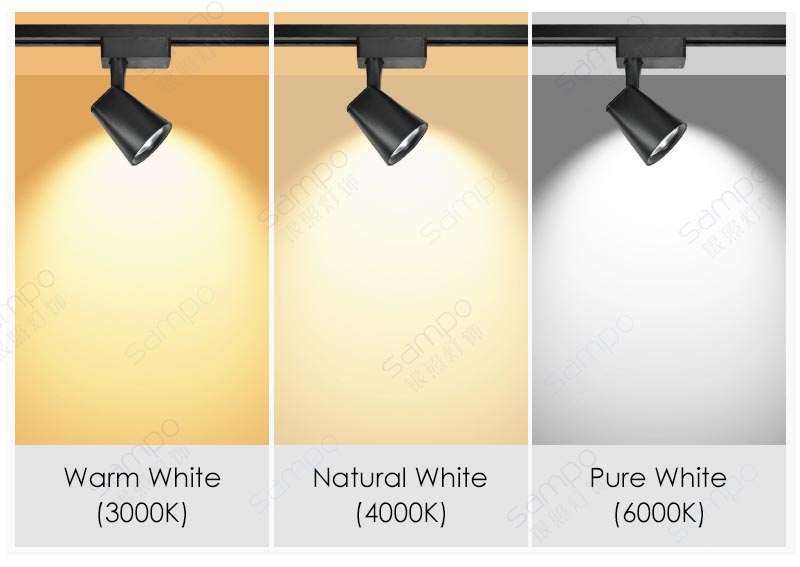

Color Temperature | YZ7103 Best Modern Track Lighting For Living Room

The surface of the housing was finished with Stoving varnish and has white & black as standard colors, comes with a stunning design.



Specifications

Item No.  YZ7103
Power 10/20/30W
Input Voltage 220-240V
Luminous Efficiency 80lm/W
Working Temp. -20~50°C
Color Temp. 3000-6000K
CRI Ra>80
Beam Angle 24°
LED Source COB
Housing Material Aluminum
Finishing Stoving Varnish
Color White/Black/Gray
Lifespan (hrs) 30000
Warranty (Years)  2
Dimmable (Y/N) N
CCT Adjustable (Y/N) N
Dimension (mm) 10W: Φ75mm
20W: Φ95mm
30W: Φ105mm



CRI | YZ7103 Best Modern Track Lighting For Living Room

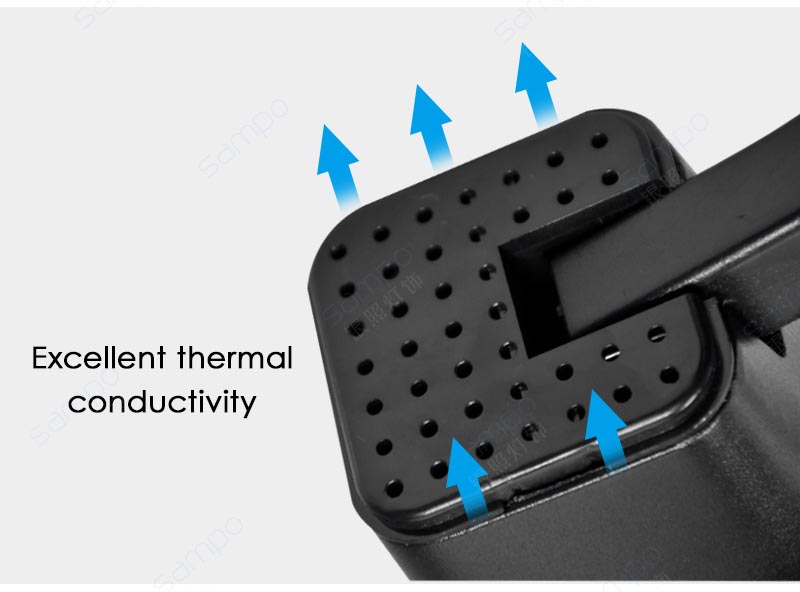

Thermal Conductivity | YZ7103 Best Modern Track Lighting For Living Room

The housing of the LED track light fixtures is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

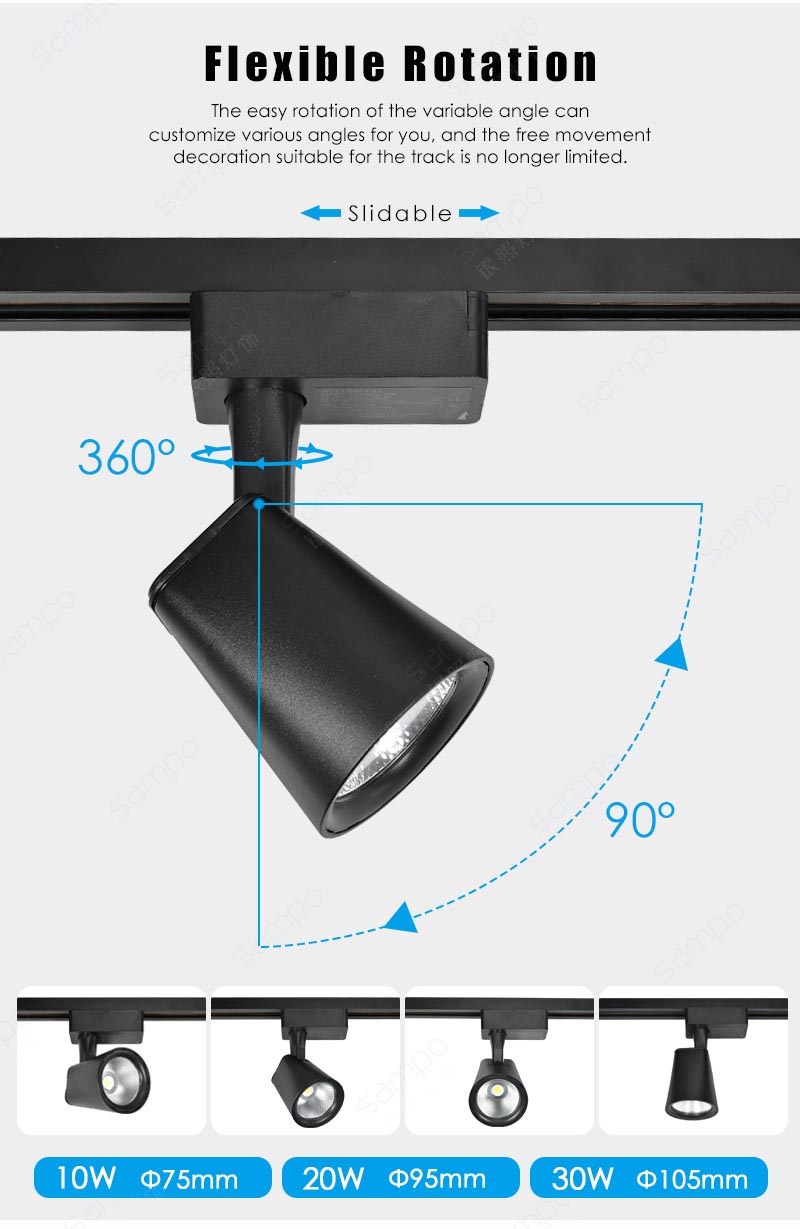

Rotatable | YZ7103 Best Modern Track Lighting For Living Room

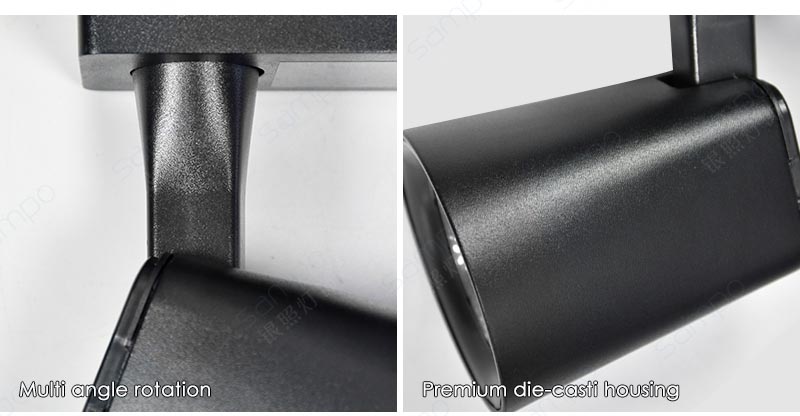

Features | YZ7103 Best Modern Track Lighting For Living Room

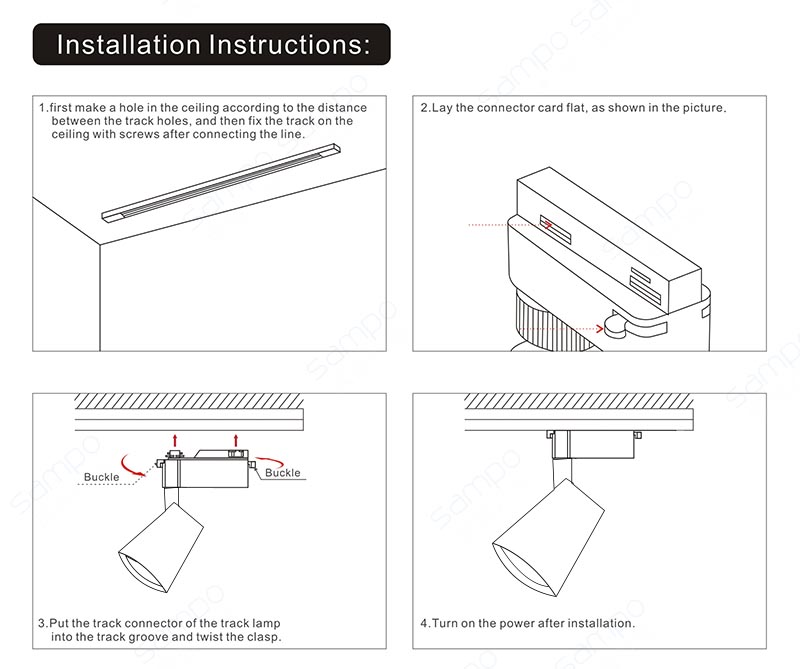

Installation Instructions | YZ7103 Best Modern Track Lighting For Living Room

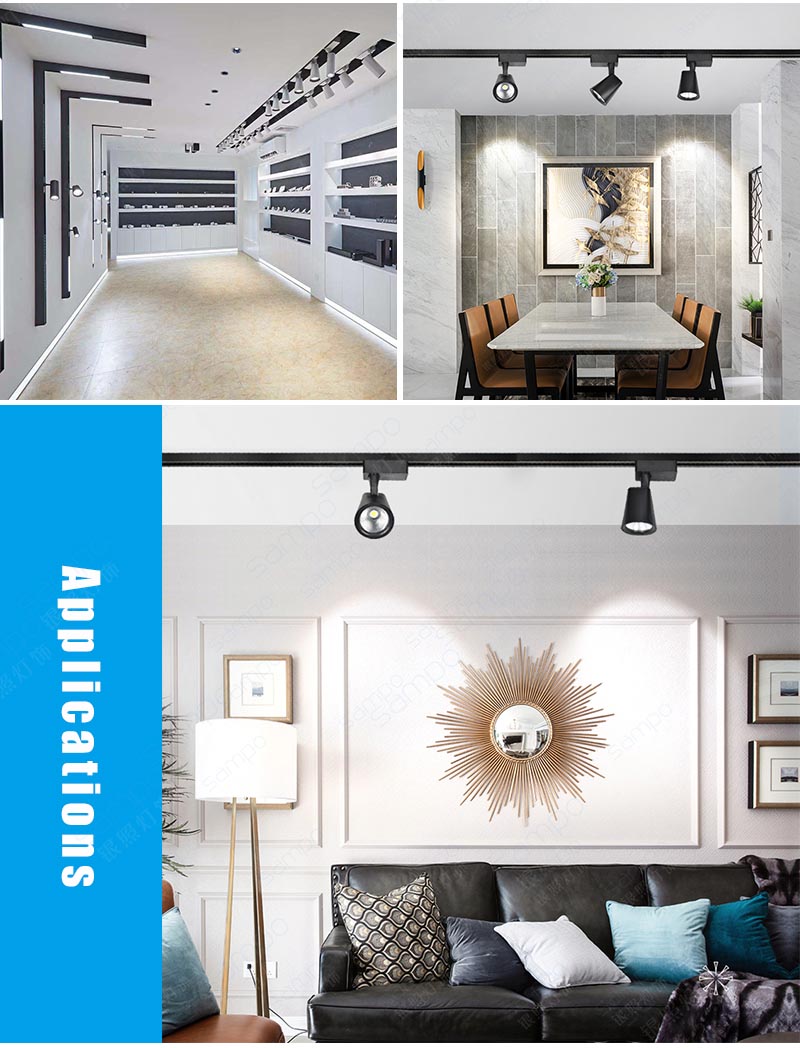

Applications | YZ7103 Best Modern Track Lighting For Living Room
