We’ve supplied aluminum track rail to European and Indian wholesalers for over a decade. Three models take most of our repeated bulk orders: 6301 3-wire track rail, plus 6401 and 6404 four-wire track rail.

Many overseas buyers reach out to us confused about these three items. They see 6401 and 6404 look similar at first sight, and can’t figure out when to pick 6301 instead of four-wire types. We sort out real production details, cross-section specs and long-term client order feedback to give clear selection advice.

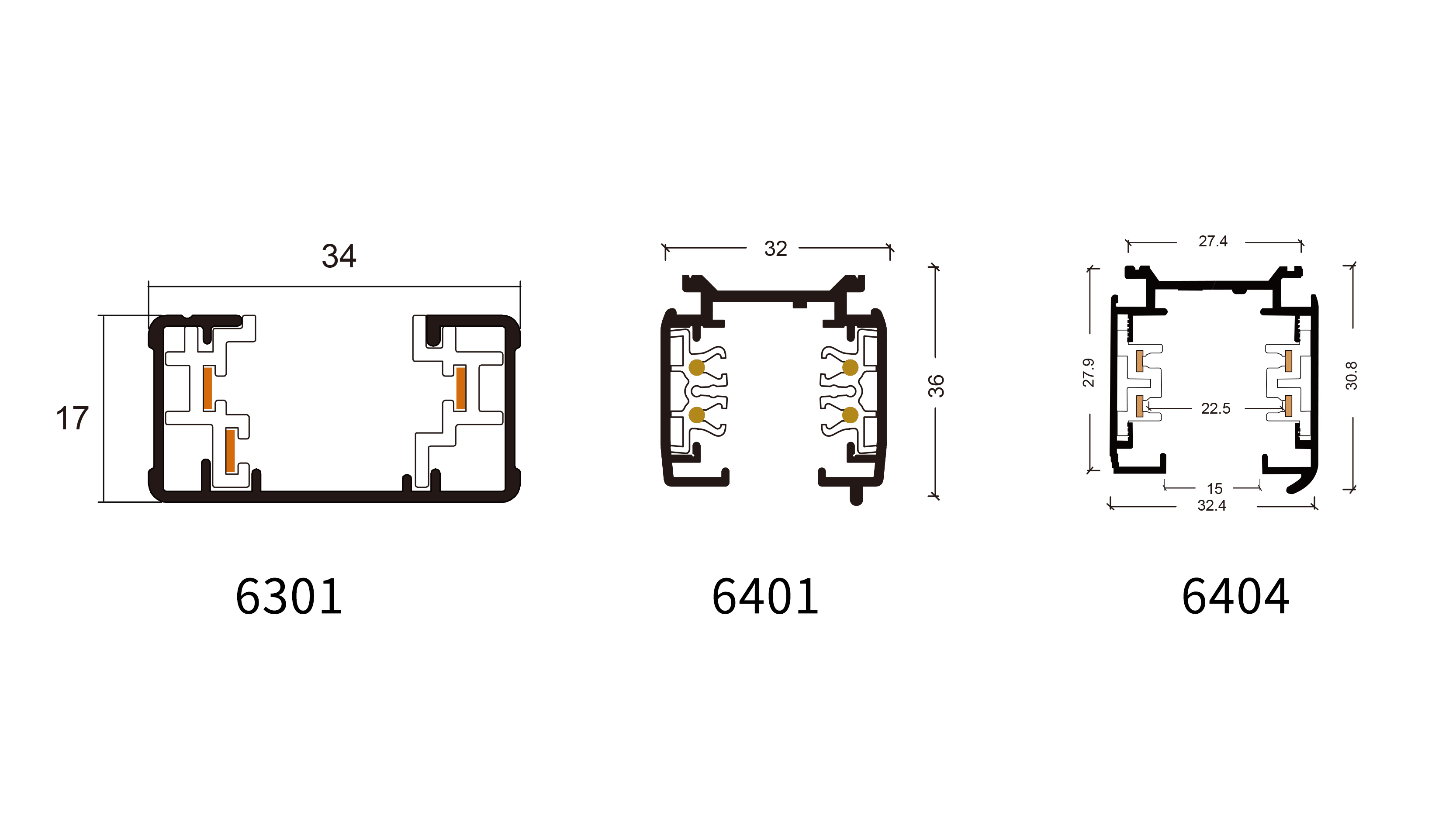

1. Internal Structure & Exact Size From Factory Drawings

All three extrusions use 6063-T5 aluminum, with 0.7mm base wall thickness and built-in reinforcing ribs. Copper bars are locked with special plastic clips, no shifting during long sea shipment.

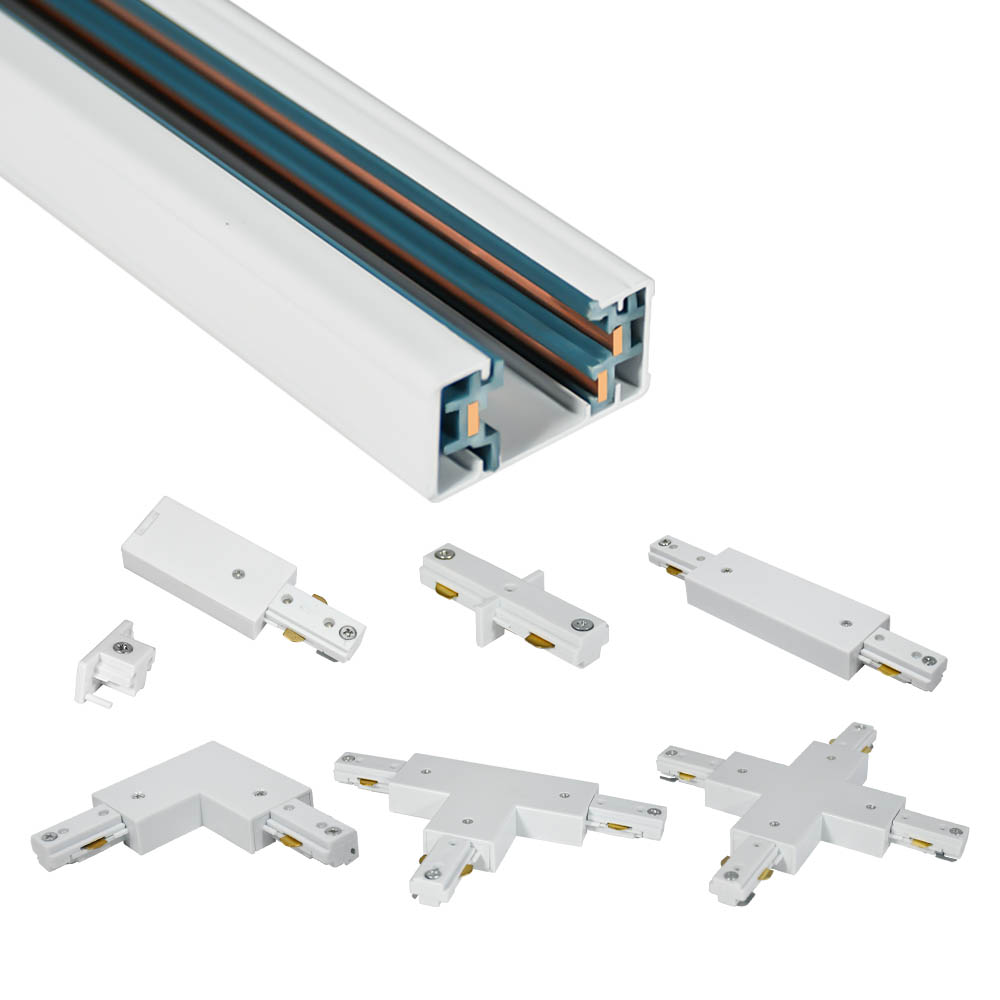

Model 6301 – 3-Wire Single Circuit Track Rail

Three copper bars inside, including live, neutral and ground wire. It runs on one single circuit, simple and cost-effective. Outer width 34mm, total height 17mm. The ground wire meets EU and Australian safety standards, so it’s widely ordered by Indian and UK clients for home decoration and small retail shops. It works with all standard GU10 track spotlights, no extra complicated control parts needed.

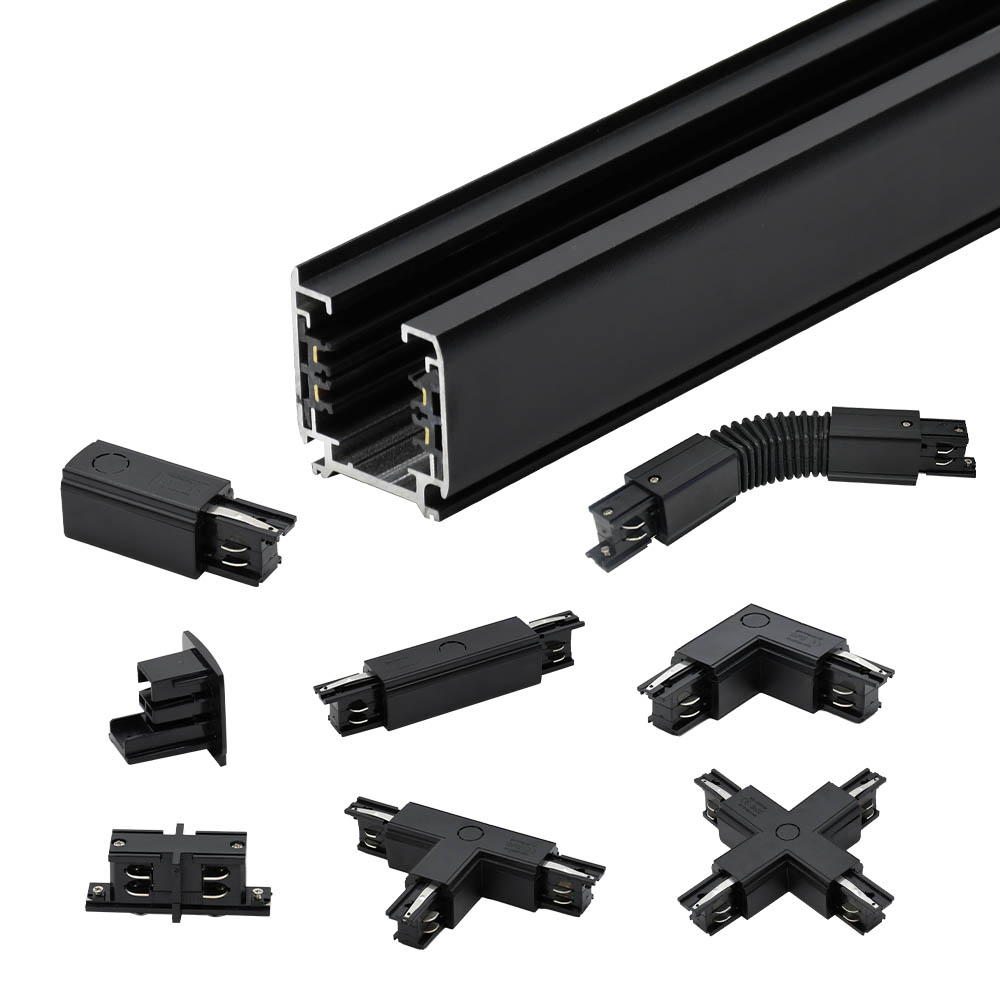

Model 6401 & 6404 – 4-Wire Dual Circuit Track Rail

6401 and 6404 share the exact same internal layout and outer dimension. Four copper bars split into two independent power groups: L1+N as one circuit, L2+L3 as another separate control group. Official drawing size: outer width 32mm, full height 36mm, double-layer copper bar layout. This dual-circuit design is the biggest selling point for German, Dutch and Polish high-end store projects. Shop owners can separate spotlights into two lighting groups to adjust display brightness separately. Thick copper strips keep power stable even for 30-meter long track installation, no voltage drop or flickering lights.

The only small difference between 6401 and 6404 is partial outer slot design to fit different local power feed connectors, while circuit and load capacity stay fully consistent.

2. Practical Advantages For Wholesale Clients

6301 3-Wire Track Rail: Best For Mass General Orders

• Built-in ground wire, safe for residential and small commercial spaces
• Simple single-circuit structure keeps unit cost low for large repeat orders
• Full matching accessories in stock: ceiling brackets, straight connectors, L-joints and power ends
• Matte black, white and silver electrostatic powder coating, long-lasting color without fading

6401 & 6404 4-Wire Track Rail: For High-Margin Commercial Projects

• Two independent circuits support scene lighting for clothing boutiques, galleries and chain cafes
• Compatible with mainstream European silicon dimming panels, ideal for engineering contractors
• Higher load capacity, supports more spotlights for large exhibition layouts
• All matching brackets and connectors are fully interchangeable between 6401 and 6404
•

3. Market Matching Guide Based On Our Export Data

• Choose 6301 3-wire rail: Your main clients are from India, UK, Australia, focus on home renovation and small budget retail stores. It brings steady, low-complexity bulk orders.
• Choose 6401 or 6404 4-wire rail: You take high-end commercial projects in Germany, Netherlands and Poland. Independent zone control helps you win more profitable lighting contracts.
• If your clients need different local power inlet structures, we can switch between 6401 and 6404 freely without changing the internal circuit function.

Most buyers pair these track rails with GU10 and PAR30 lamp heads. These lamp models sell well in Brazil and Peru, we can combine full lighting sets to lift your order value.

Frequently Asked Questions From Global Buyers

Q1: What’s the core difference between 6401 and 6404 track rail? A: They have identical four copper bar dual-circuit structure and outer size 32mm × 36mm. Only the outer mounting slot differs to match different regional power feed accessories, power performance stays the same.

Q2: Is 6301 3-wire rail safe for European indoor use? A: Yes, the built-in ground copper bar passes EU safety tests, suitable for all household and small shop lighting projects across Europe.

Q3: Can your 6401/6404 four-wire rail work with European dimming systems? A: Absolutely. The dual independent circuit design fits most local silicon dimming panels, perfect for retail store scene lighting control.

Q4: Do you accept custom lengths or custom surface colors for these three rail models? A: We provide full OEM service. We cut rail lengths and adjust surface finish colors according to clients’ actual project requirements. We also send dimension drawings and physical samples before formal bulk orders.

Conclusion

6301, 6401 and 6404 cover two major market demands. 6301 three-wire rail is the cost-effective pick for mass wholesale of residential and small retail lighting. 6401 and 6404 four-wire rails are designed for premium commercial projects that need separate lighting zone control and dimming functions.

As a Foshan track rail manufacturer with full extrusion and accessory production lines, we can supply all three models in large bulk quantities. Contact our sales team if you need samples or competitive wholesale quotations.
