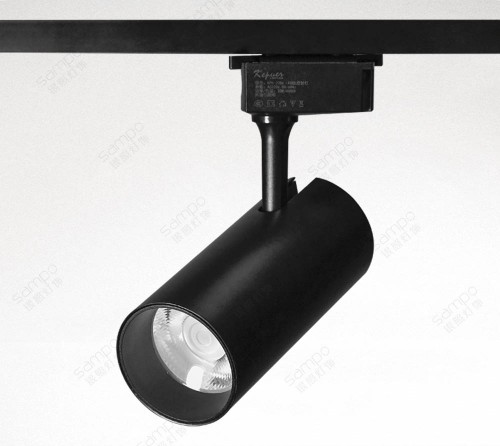

YZ7108 COB Track Light



YZ7108 COB Track Light

  • Power available at 12/20/30W.
  • The beam angle is at 24°/36°.
  • For commercial & residential track lighting.
  • Voltage 220-240V available on request.
  • Color temperature 3000K~6000K.
  • Stunning design finished with stoving varnish.
  • Black, white, gray, and other colors are optional.
  • Die-casting aluminum housing.
  • Integrated with a reliable non-isolated driver.
  • COB chips are optional from famous brands.
  • 320° horizontally & 90° vertically adjustable head.
  • Fix on track rail without tool.

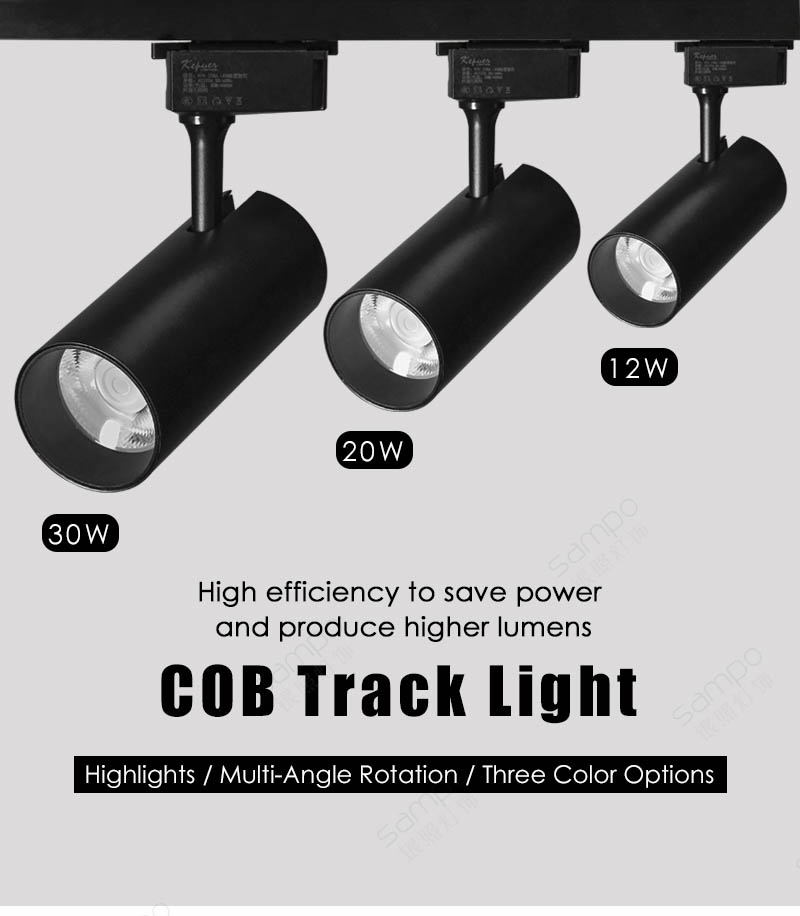

YZ7108 12W 20W 30W LED Track Light Fixtures



YZ7108 LED track light fixtures have optional powers at 12/20/30W for commercial & residential lighting solutions, comes with durable die-cast aluminum enclosure finished with stoving varnish, black, white, and gray are optional. It produces a soft spotlight to highlight the objects with a mild feeling. The LED chip is COB type and optional from famous brands. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 90° and horizontally rotatable at 320°. The voltage range is between 220-240V or on the customer's request to comply with different standards in many countries.

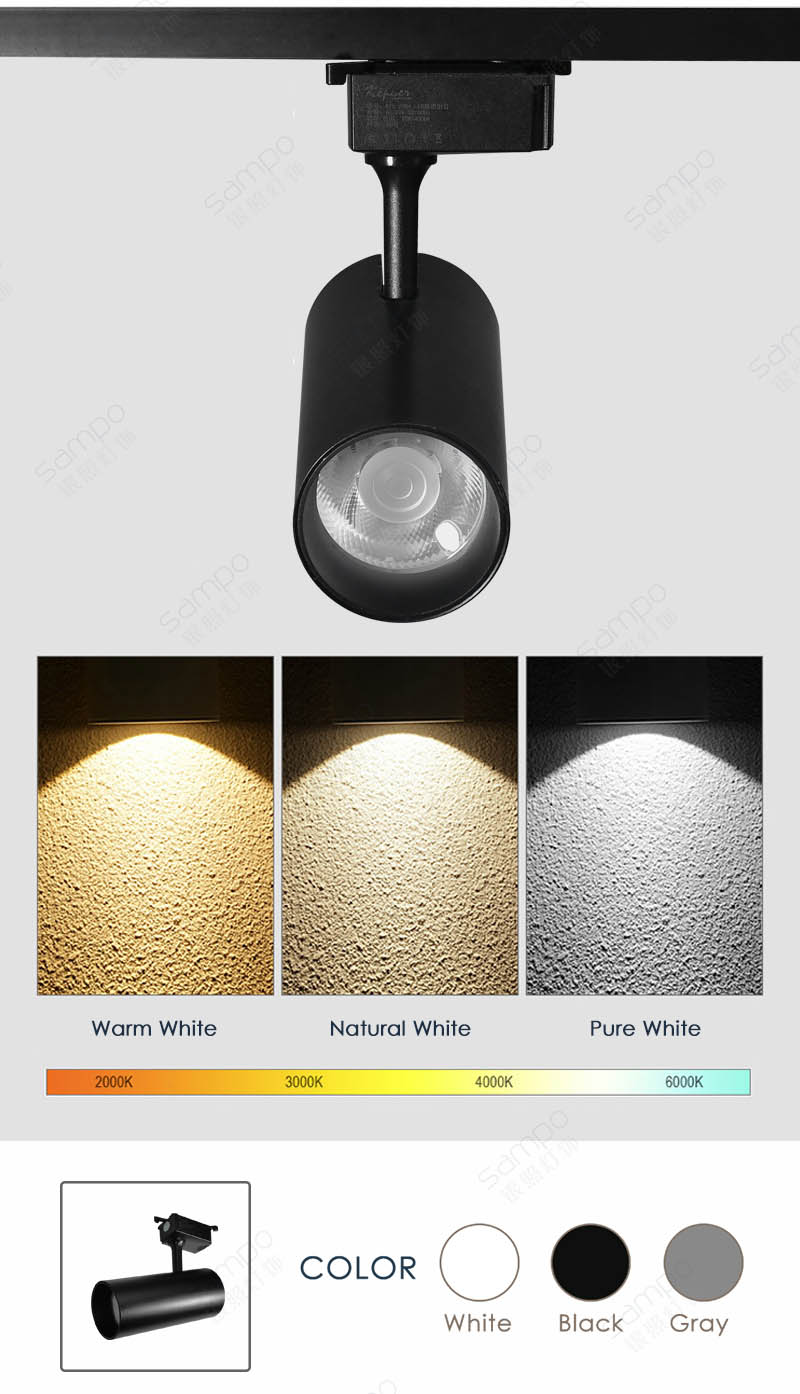

Surface Finishing | YZ7108 12W 20W 30W LED Track Light Fixtures

COB chips of the LED track light are optional to be sourced from famous brands, CREE, Epistar, Bridgelux, and so on.  And the lens applied GR OPTICS technology.




COB Chips | YZ7108 12W 20W 30W LED Track Light Fixtures

The surface of the housing was finished with Stoving varnish and has white & black as standard colors, comes with a stunning design.



Specifications

Item No.  YZ7108
Power 12/20/30W
Input Voltage 220-240V
Luminous Efficiency 80 or 90lm/W
Working Temp. -20~50°C
Color Temp. 3000-6000K
CRI Ra>80/90
Beam Angle 24° / 36°
LED Source COB
Housing Material Aluminum
Finishing Stoving Varnish
Color White/Black/Gray
Lifespan (hrs) 30000
Warranty (Years)  2
Dimmable (Y/N) N
CCT Adjustable (Y/N) N
Dimension (mm) 12W: Φ54*135mm
20W: Φ68*160mm
30W: Φ78*180mm

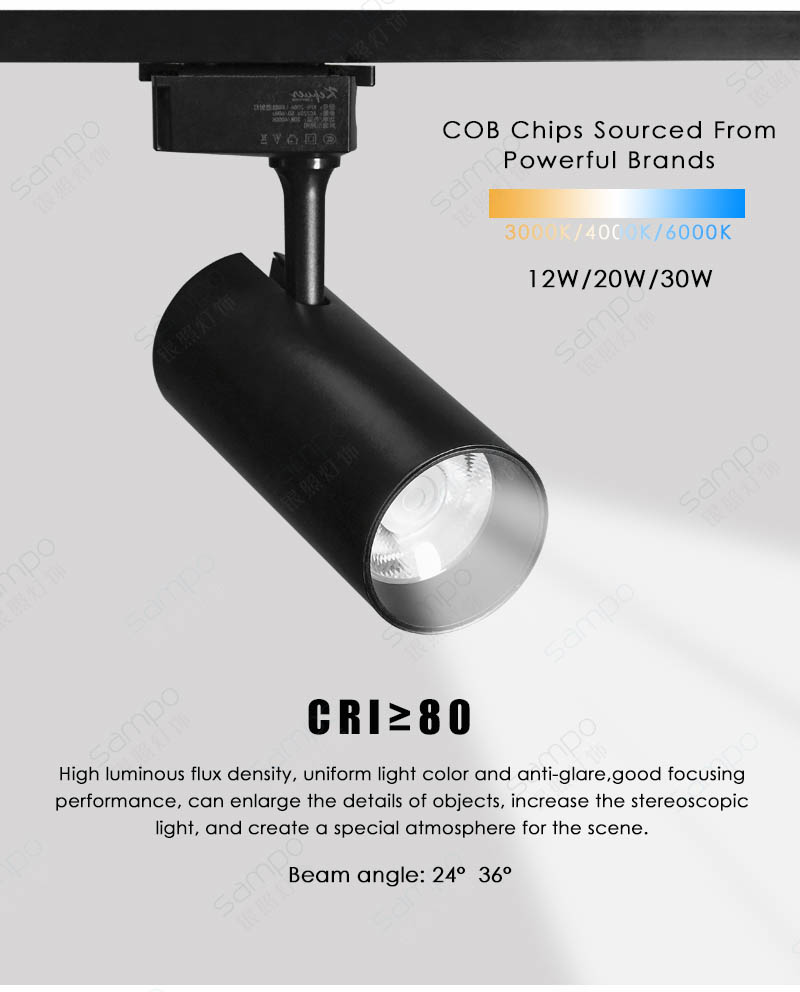

CRI Performance | YZ7108 12W 20W 30W LED Track Light Fixtures

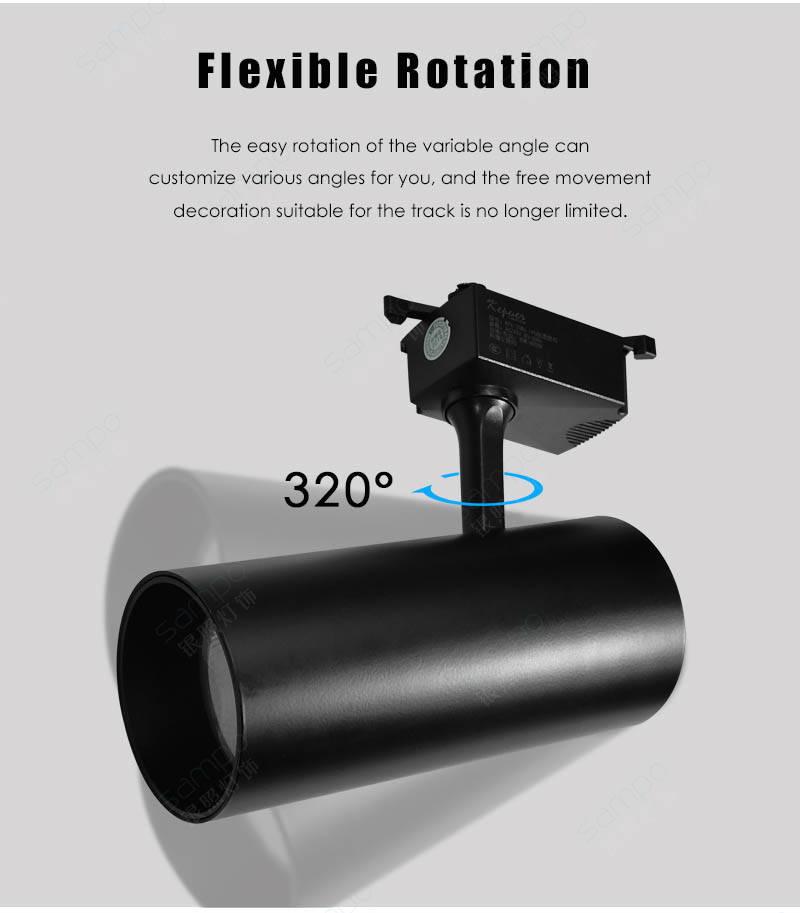

Rotatable | YZ7108 12W 20W 30W LED Track Light Fixtures

The housing of the LED track light fixtures is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

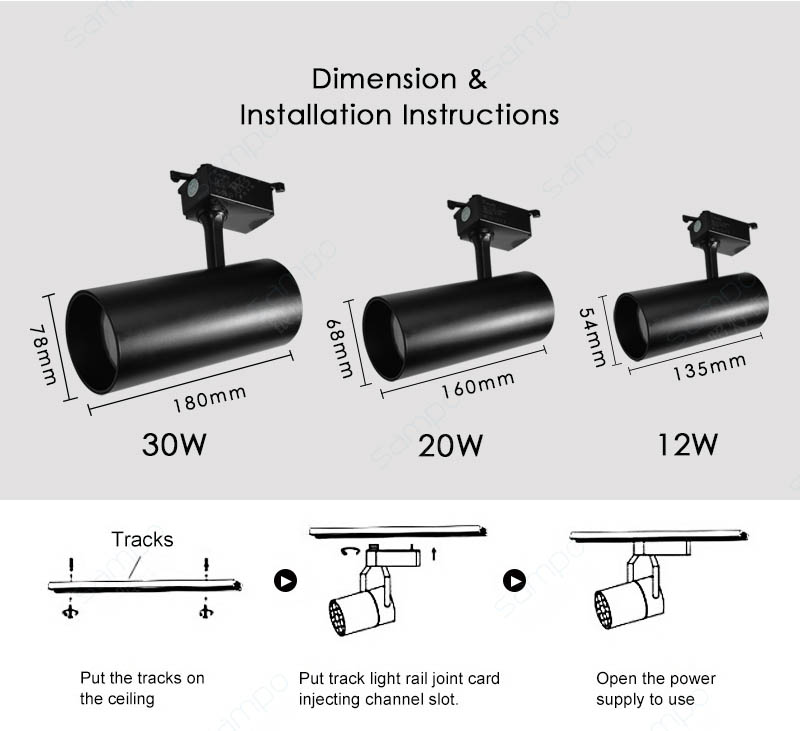

Dimension | YZ7108 12W 20W 30W LED Track Light Fixtures

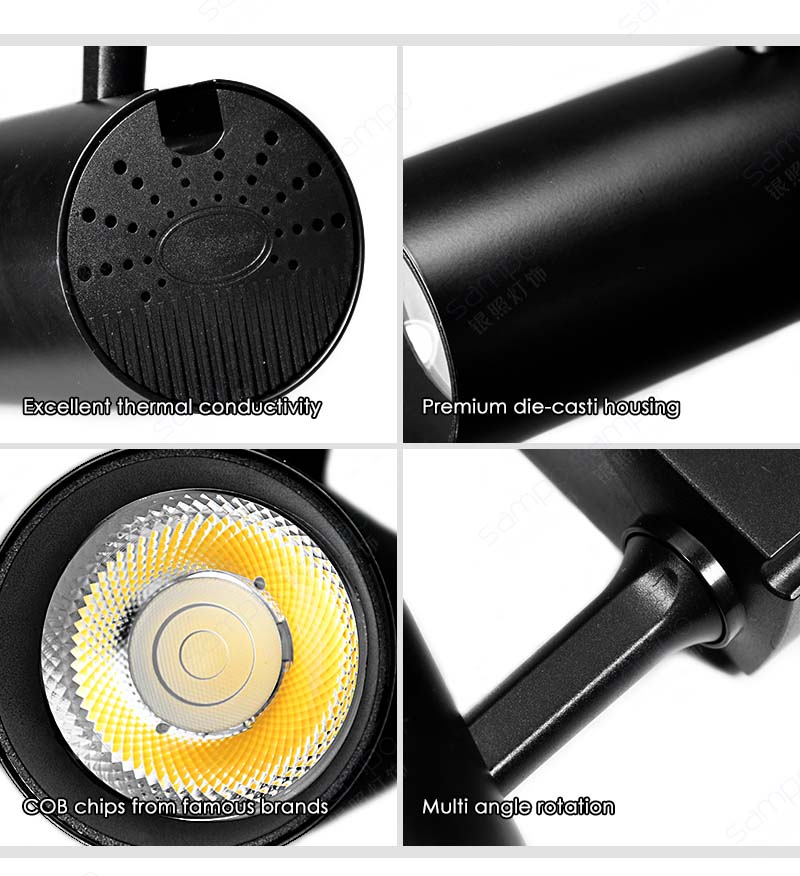

Features | YZ7108 12W 20W 30W LED Track Light Fixtures
