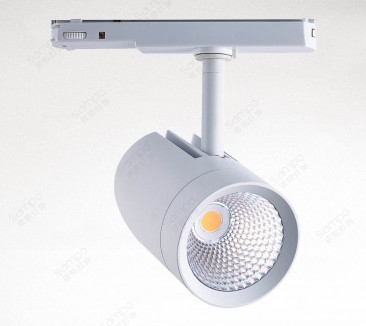

YZ1018 COB Track Light



YZ1018 COB Track Light

  • Power available at 30W/40W.
  • 4-Wire 3-Phase track system.
  • The beam angle is at 15°/24°/38°/60°.
  • For commercial & residential track lighting.
  • Voltage 220-240V available on request.
  • Color temperature 2400K~6000K.
  • Stunning design finished with stoving varnish.
  • Black, white, gray, and other colors are optional.
  • Die-casting aluminum housing.
  • Integrated with a reliable non-isolated driver.
  • COB chips are optional from famous brands.
  • 360° horizontally & 90° vertically adjustable head.
  • Fix on track rail without tool.

YZ1018 30W 40W White And Black Modern LED Track Lighting Fixtures



YZ7105 white and black modern LED track lighting fixtures have 30W & 40W for power options, and are popular for commercial & residential lighting solutions. The COB chips are optionally sourced from CREE & CITIZEN, and use drivers from TridonicT or Philips. Comes with a durable die-cast aluminum housing finished with stoving varnish, black, white, and gray are optional. this fixture emits a soft spotlight to highlight the objects with a mild feeling. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 90° and horizontally rotatable at 360°. The voltage range is between 220-240 Volt to comply with different standards in many countries.


COB Chips | YZ1018 30W 40W White And Black Modern LED Track Lighting Fixtures

The surface of the housing was finished with stoving varnish and has white & black as standard colors, comes with stunning design.



Specifications

Item No.  YZ1018
Power 30/40W
Input Voltage 220-240V
Luminous Efficiency 90 lm/W
Driver TridonicT / Philips
Working Temp. -20~50°C
Color Temp. 2400-6000K
CRI Ra>80/90
Beam Angle 15°/24°/38°/60°
LED Source CREE / CITIZEN
Housing Material Aluminum
Finishing Stoving Varnish
Color White/Black/Gray
Lifespan (hrs) 30000
Warranty (Years)  2
Dimmable (Y/N) N
CCT Adjustable (Y/N) N
Dimension (mm) Φ90*H147mm

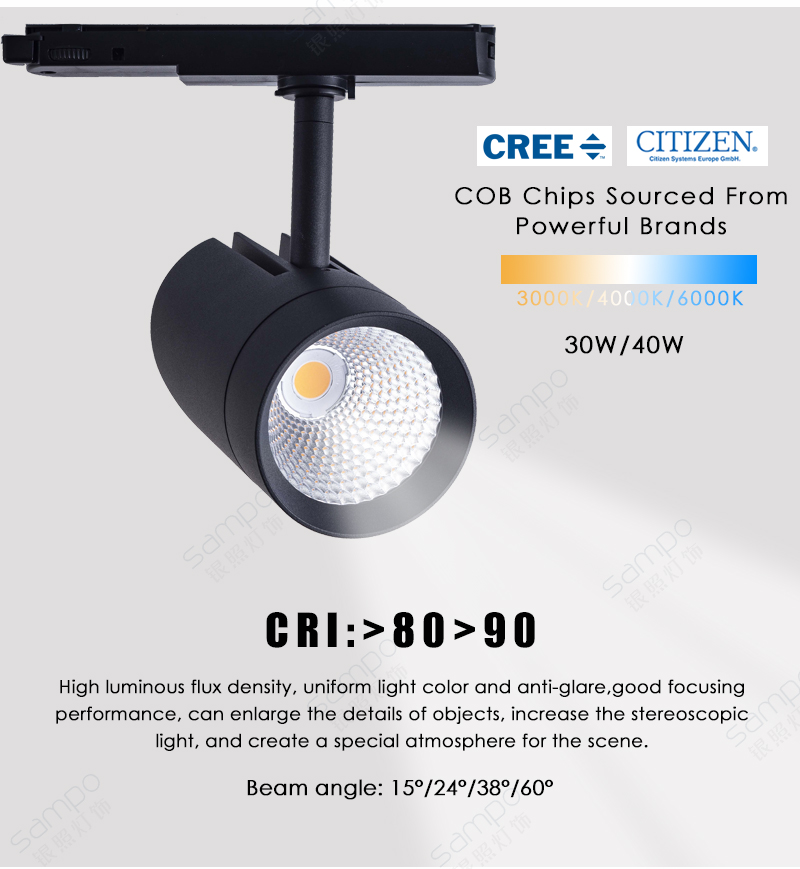

CRI Performance | YZ1018 30W 40W White And Black Modern LED Track Lighting Fixtures

COB chips of the LED track lighting fixtures are optional to be sourced from famous brands, CREE and CITIZEN, and so on.  And the lens applied GR OPTICS technology.

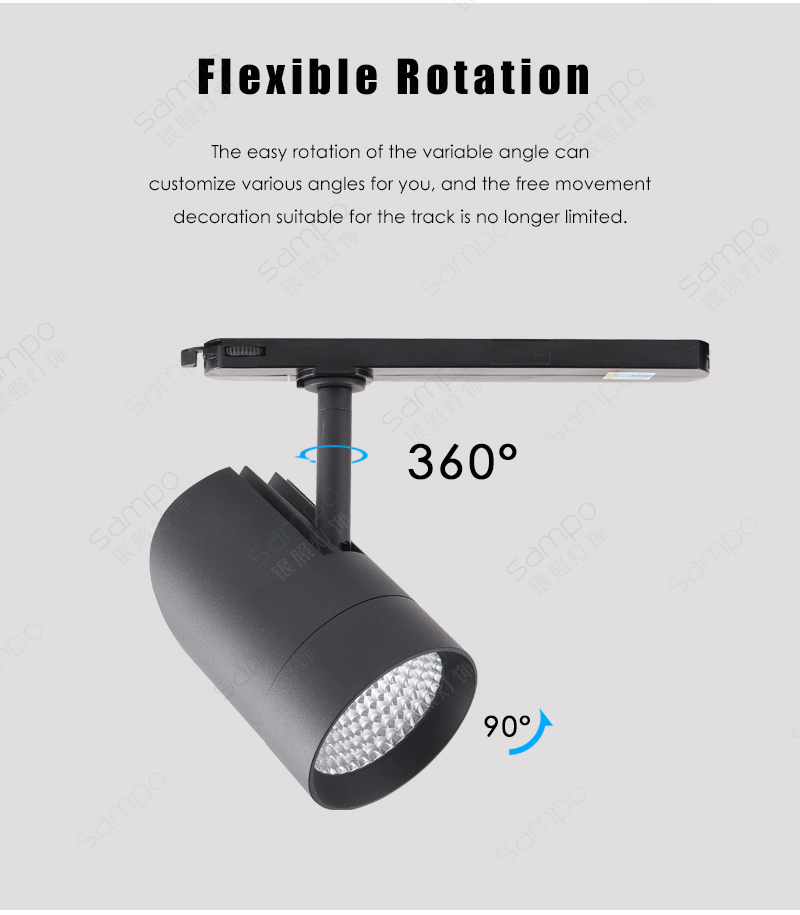

Rotatable | YZ1018 30W 40W White And Black Modern LED Track Lighting Fixtures

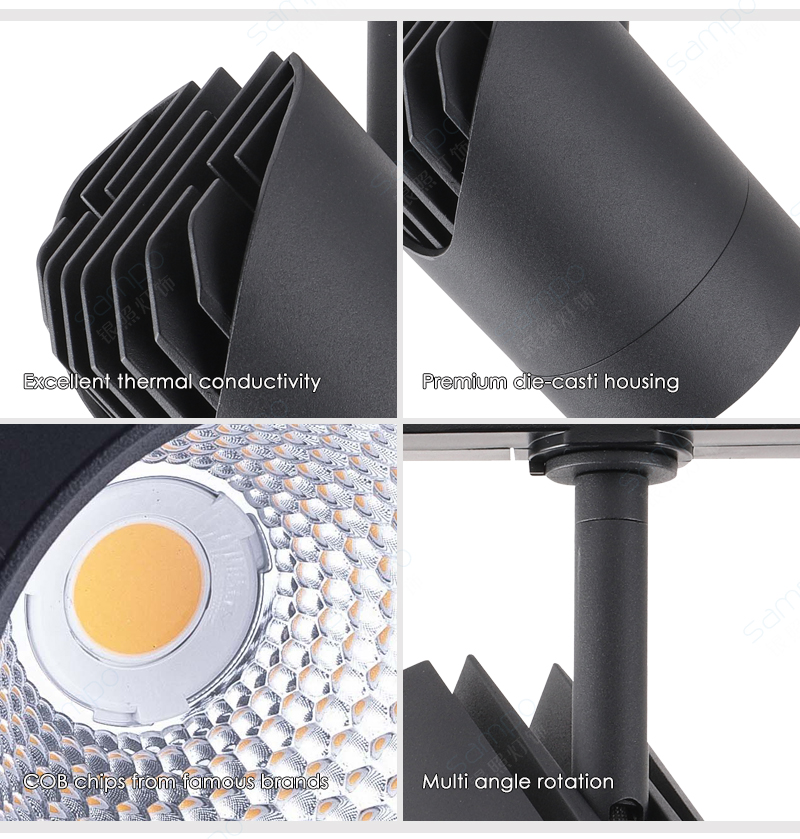

The housing of the LED track lighting fixtures is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.



Dimension | YZ1018 30W 40W White And Black Modern LED Track Lighting Fixtures



Features | YZ1018 30W 40W White And Black Modern LED Track Lighting Fixtures
